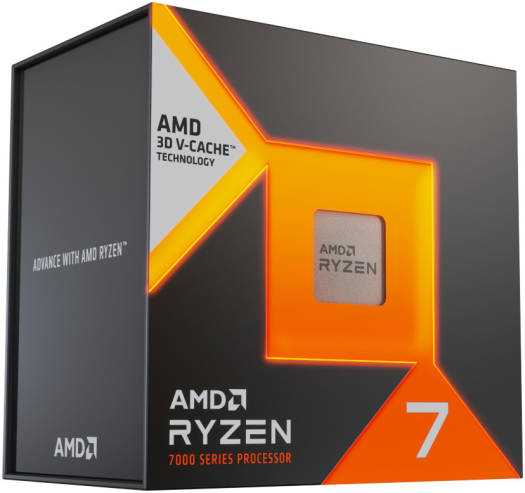

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 120W TDP

The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance

Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.

Specification

Performance & Architecture

• Cores / Threads: 8 Cores / 16 Threads

• Base Clock: 4.2 GHz

• Max Boost Clock: Up to 5.0 GHz

• L1 Cache: 512 KB

• L2 Cache: 8 MB

• L3 Cache: 96 MB (with 3D V-Cache)

• Architecture: Zen 4

• Process Technology: TSMC 5nm (CPU) + 6nm (I/O Die)

• Default TDP: 120W

Platform & Overclocking Support

• Socket: AM5

• Supported Chipsets: X670E, X670, B650E, B650

• PCIe Version: PCIe® 5.0

• Total PCIe Lanes: 28 (24 usable)

Supports:

• Precision Boost 2

• Precision Boost Overdrive (PBO)

• Curve Optimizer

• AMD EXPO™ Memory Overclocking

• AMD Ryzen™ Master

Memory Support

• Memory Type: DDR5 (UDIMM)

• Channels: Dual-channel

• Maximum Capacity: 128GB

Maximum Memory Speeds:

• 2x1R / 2x2R: DDR5-5200

• 4x1R / 4x2R: DDR5-3600

Integrated Graphics

Includes integrated AMD Radeon™ Graphics:

• 2 Graphics Cores

• 2200 MHz Graphics Frequency

• USB Type-C® DisplayPort™ Alternate Mode support

Connectivity

• 4× Native USB 3.2 Gen 2 (10Gbps)

• 1× Native USB 2.0

• PCIe® 5.0 support

• NVMe Boot with RAID 0 / 1 / 10 support

Operating System Support

• Windows 11 (64-bit)

• Windows 10 (64-bit)

• RHEL x86 64-bit

• Ubuntu x86 64-bit
