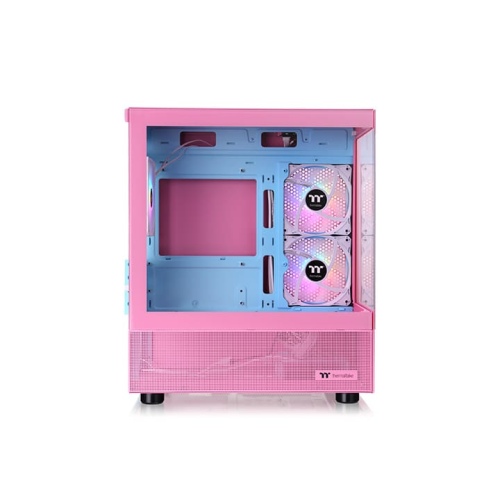

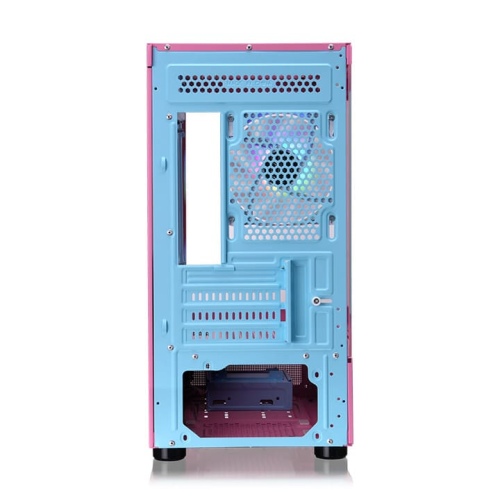

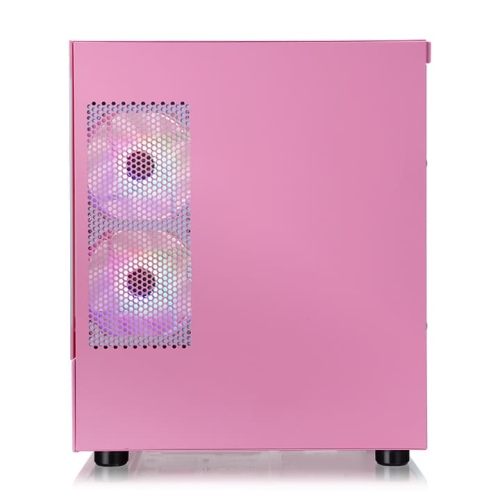

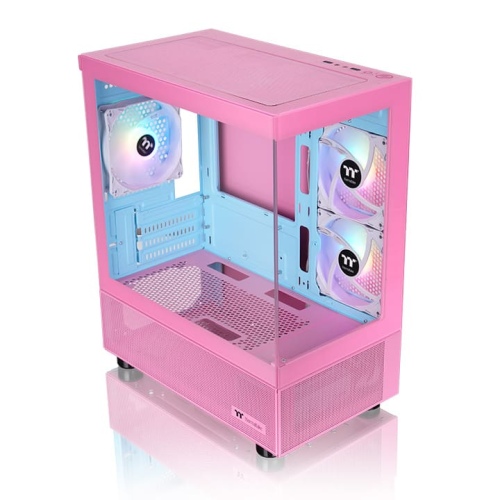

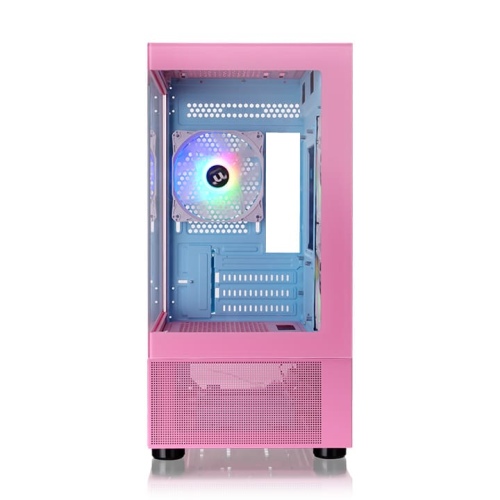

Thermaltake View 170 TG ARGB Micro Chassis, Dual Tempered Glass Panels (Front & Left), M-ATX Form Factor, Three Pre-installed 120mm ARGB Lite Fans, Pink

Handy I/O Ports

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specification

General Information

• Part Number (P/N): CA-1Z4-00MAWN-01
• Series: View
• Model: View 170 TG ARGB
• Case Type: Micro Case
• Color: Pink

Dimensions

• Case Dimensions: 37.75 cm (L) x 21.2 cm (W) x 43.8 cm (H)
• Net Weight: 4.65 kg

Build & Materials

• Material: SPCC
• Panels: 3 mm Tempered Glass x2

Cooling System (Pre-installed)

• Right (Intake): 2 x 120mm ARGB Lite Fans (1000 RPM, 22.3 dB-A)
• Rear (Exhaust): 1 x 120mm ARGB Lite Fan (1000 RPM, 22.3 dB-A)

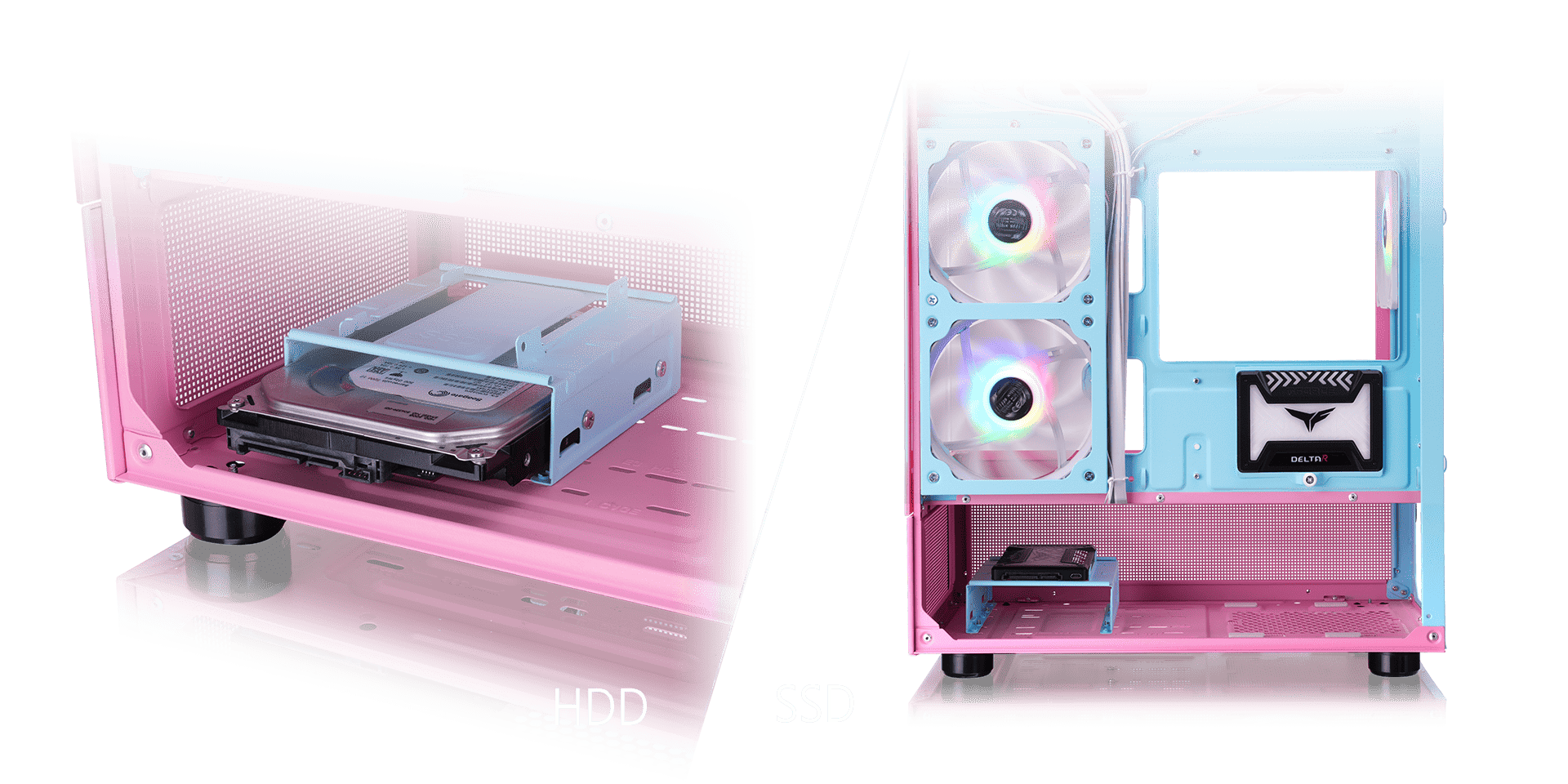

Drive Bays

• 1 x 3.5”
• 2 x 2.5”

Expansion Slots

• 4 Slots

Motherboard Support

• Mini ITX (6.7” x 6.7”)
• Micro ATX (9.6” x 9.6”)

I/O Ports

• USB 3.0 x2
• HD Audio x1

PSU Support

• Standard PS2 PSU (optional)

Fan Support

• Top: 2 x 120mm / 2 x 140mm
• Right: 2 x 120mm
• Rear: 1 x 120mm
• Power Cover: 2 x 120mm

Radiator Support

• Top: Up to 240mm / 280mm
• Rear: 120mm

Clearance

• CPU Cooler Max Height: 16 cm
• GPU Max Length: 34 cm
• PSU Max Length: 18 cm
