Thermaltake TR100 Mini Tower Chassis, Portable Design with Optional Suitcase Kit, Included High-Speed PCIe 4.0 Riser Cable, 280mm AIO Liquid Cooling Support, White

Quick Overview

Mini Tower Mini-ITX chassis with dual-chamber design
Designed for performance and portability
Includes PCIe 4.0 riser cable
Supports SFX power supply
Supports up to 2 x 120mm or 140mm fans on the top
Supports up to 280mm AIO radiator
Optional suitcase available for carrying full gaming setup

SKU: CA-11A-00S6NN-00 Categories: Computer Components, PC Cases Tag: Gaming PC Case

Original price was: AED 799.00.Current price is: AED 465.94.

Compare

Add to wishlist

Warranty

Included Warranty	1 Year Free Warranty

Delivery

Standard Delivery	One Day Delivery

2 Items sold in last 24 hours

17 People watching this product now!

Description
Additional information

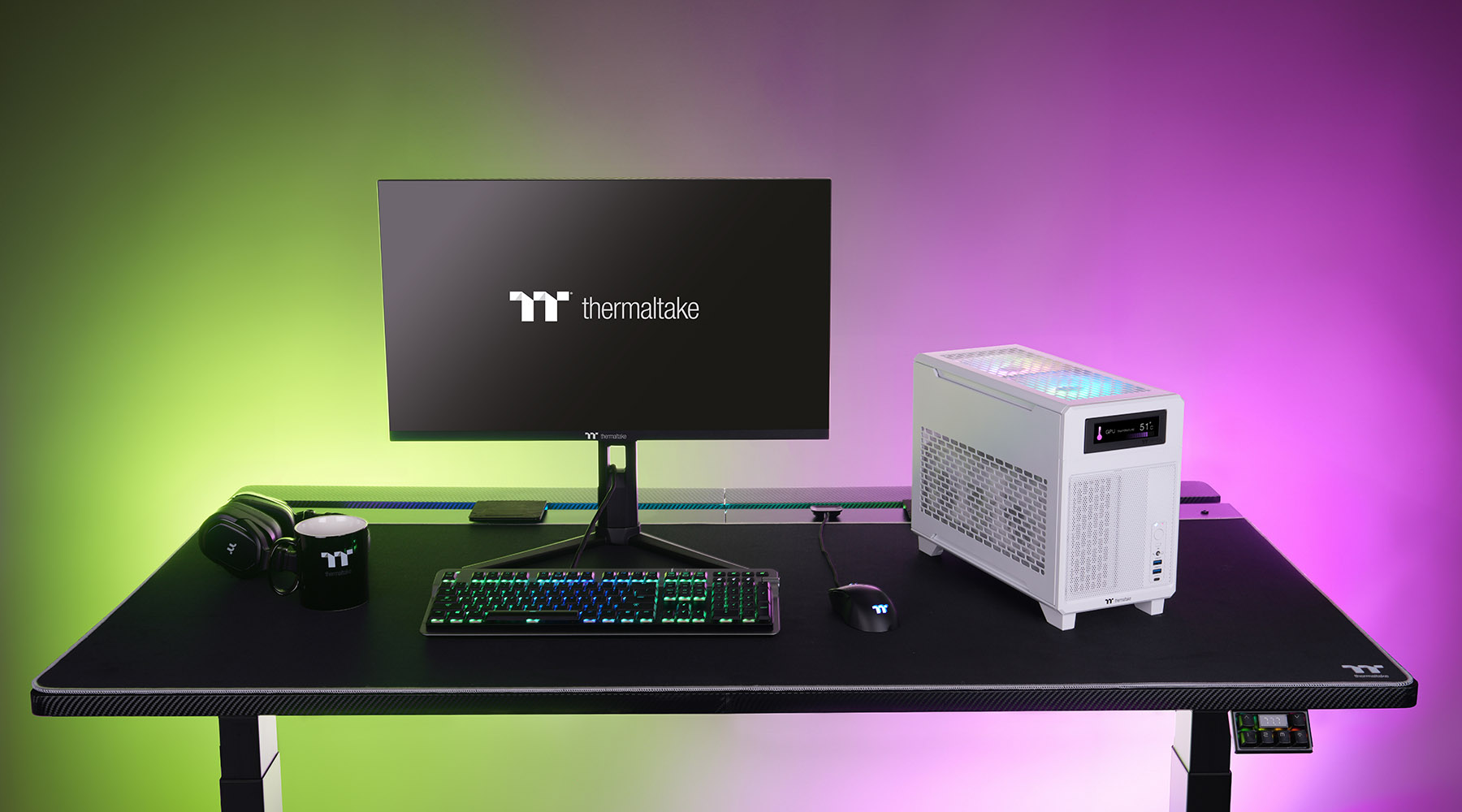

Size Down, Power Up

The TR100 Snow Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9″ LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

Compact Design

The TR100 Snow is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

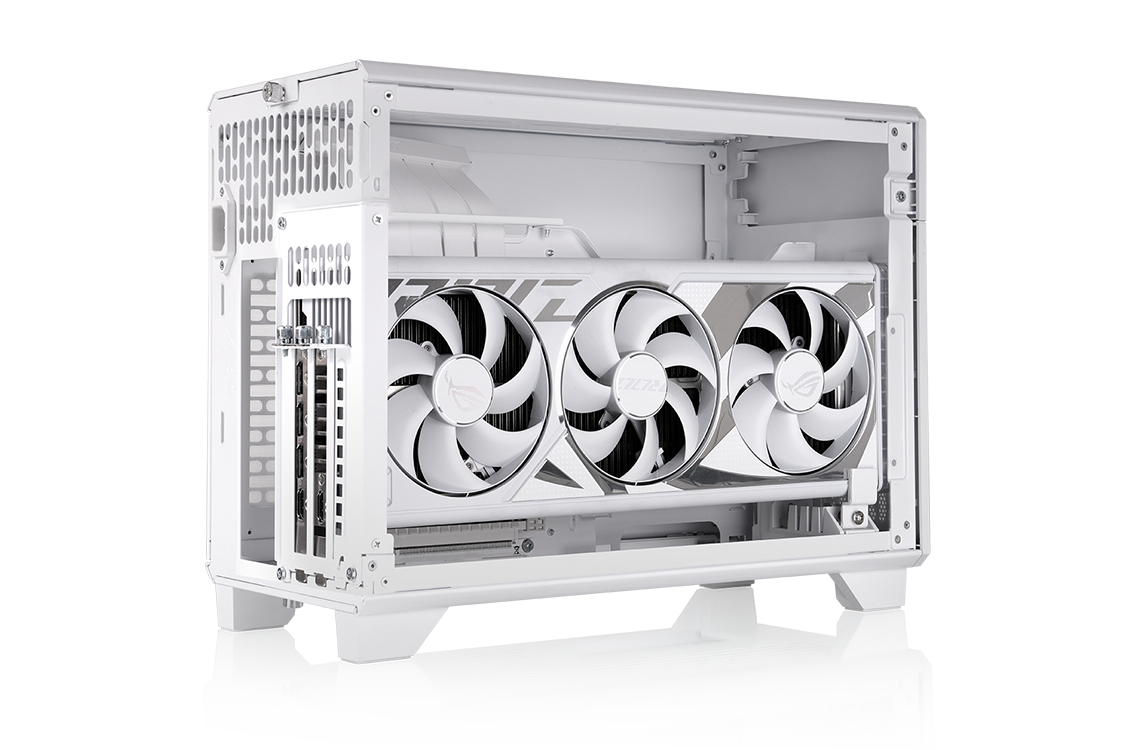

Superior GPU Support

The TR100 Snow supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

Efficient Cooling Solutions

The TR100 Snow supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

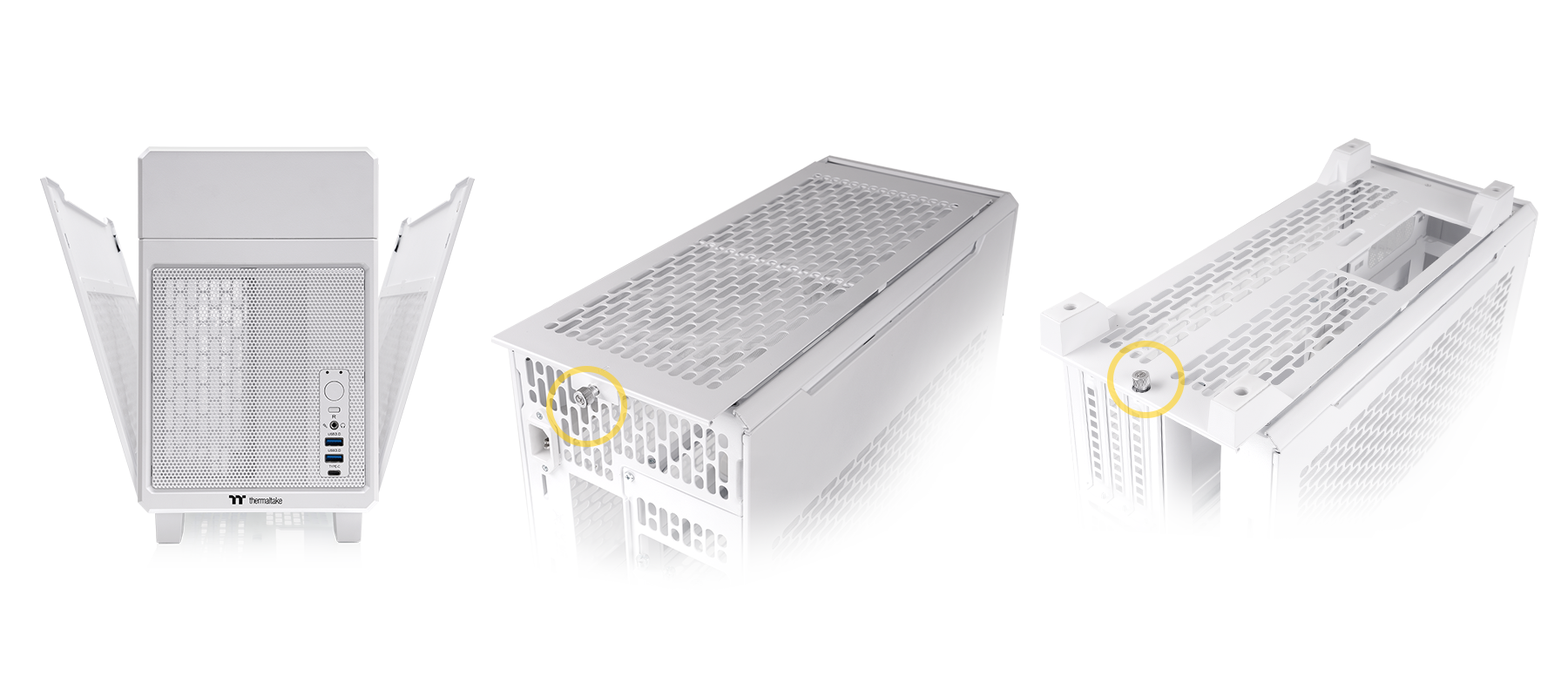

Easy Access with Removable Panels

The TR100’s modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

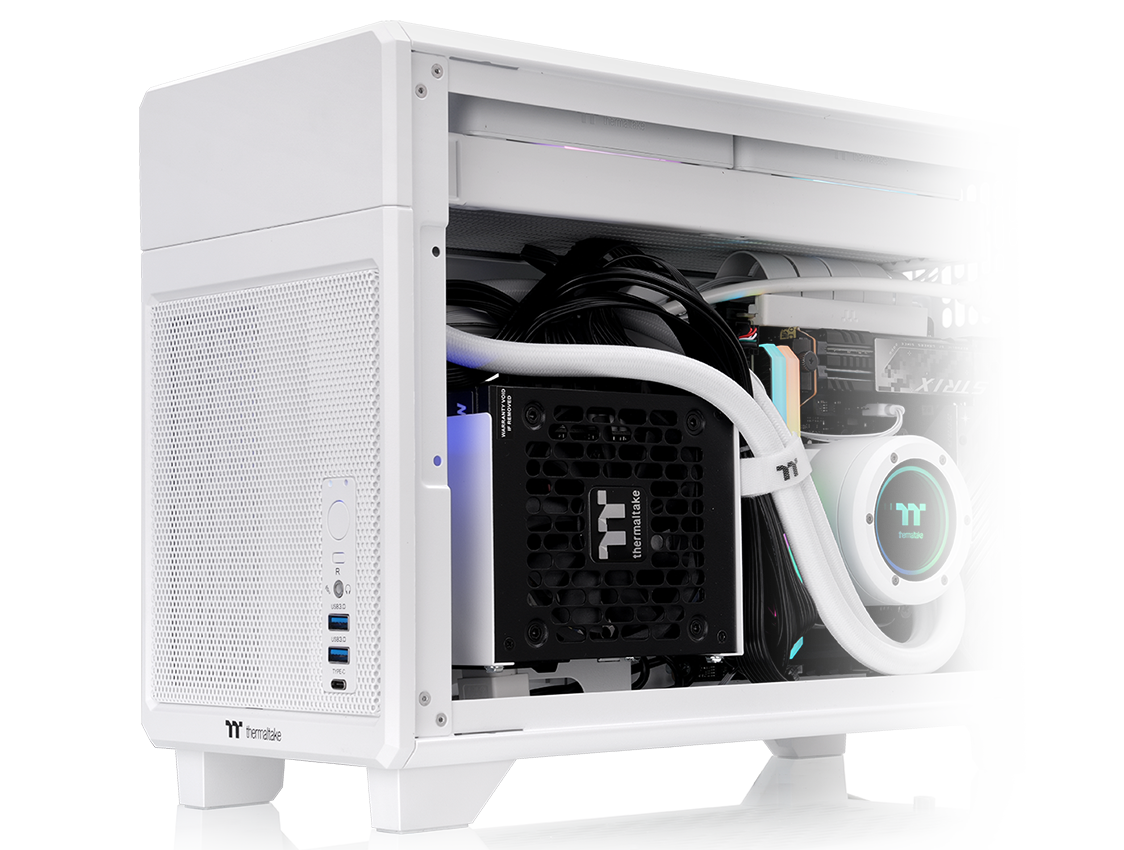

SFX PSU Support

The TR100 Snow features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

Visually Pleasing, Totally Interactive

Maximize your TR100’s visual effects by upgrading it with our LCD Screen Kit.

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

Personalize Your LCD Display

Through the TT RGB Plus, the 3.9” LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

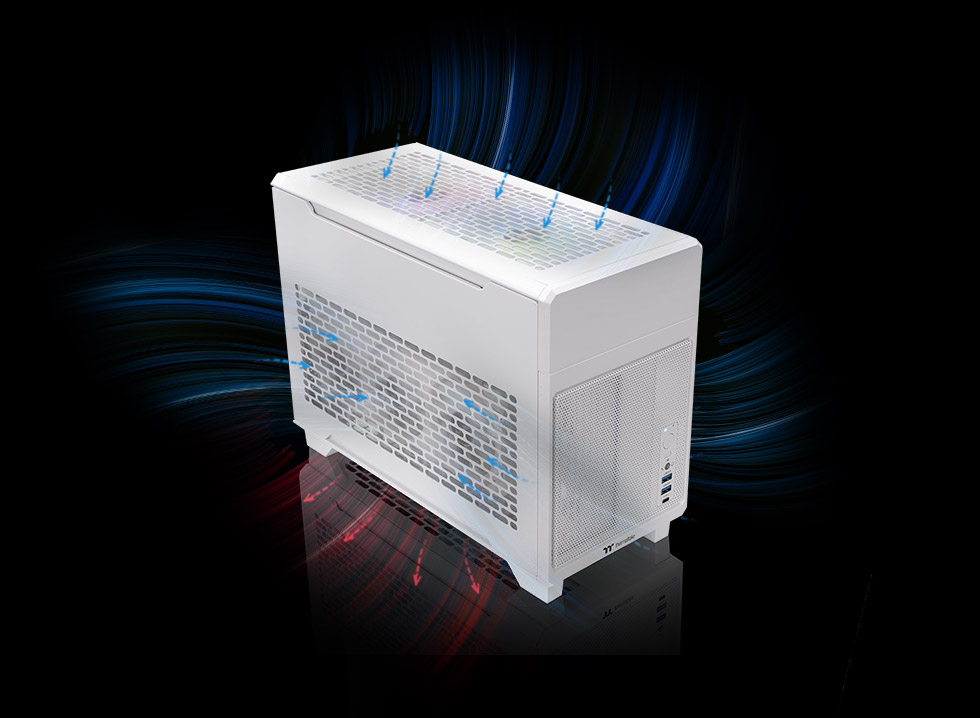

Air Intake and Exhaust

Despite its compact size, The TR100 Snow still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

We’ve Tested Everything, So You Don’t Have To

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The TR100 Snow products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Perfect Dust Protection

There are filters at the top, front and side of the chassis to protect the system from dust.

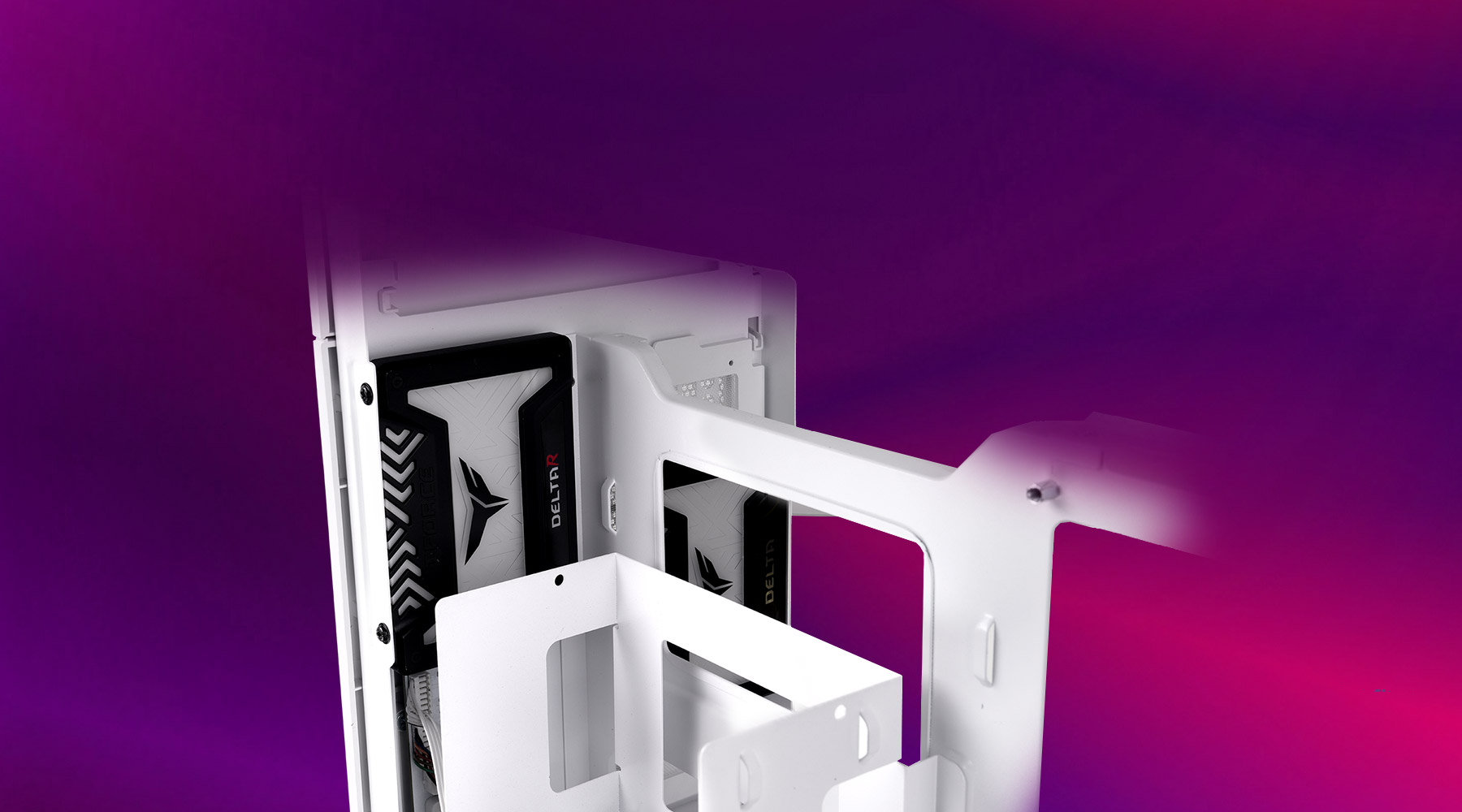

Storage Support

The TR100 Snow supports up to two 2.5″ SSDs, one in each chamber.

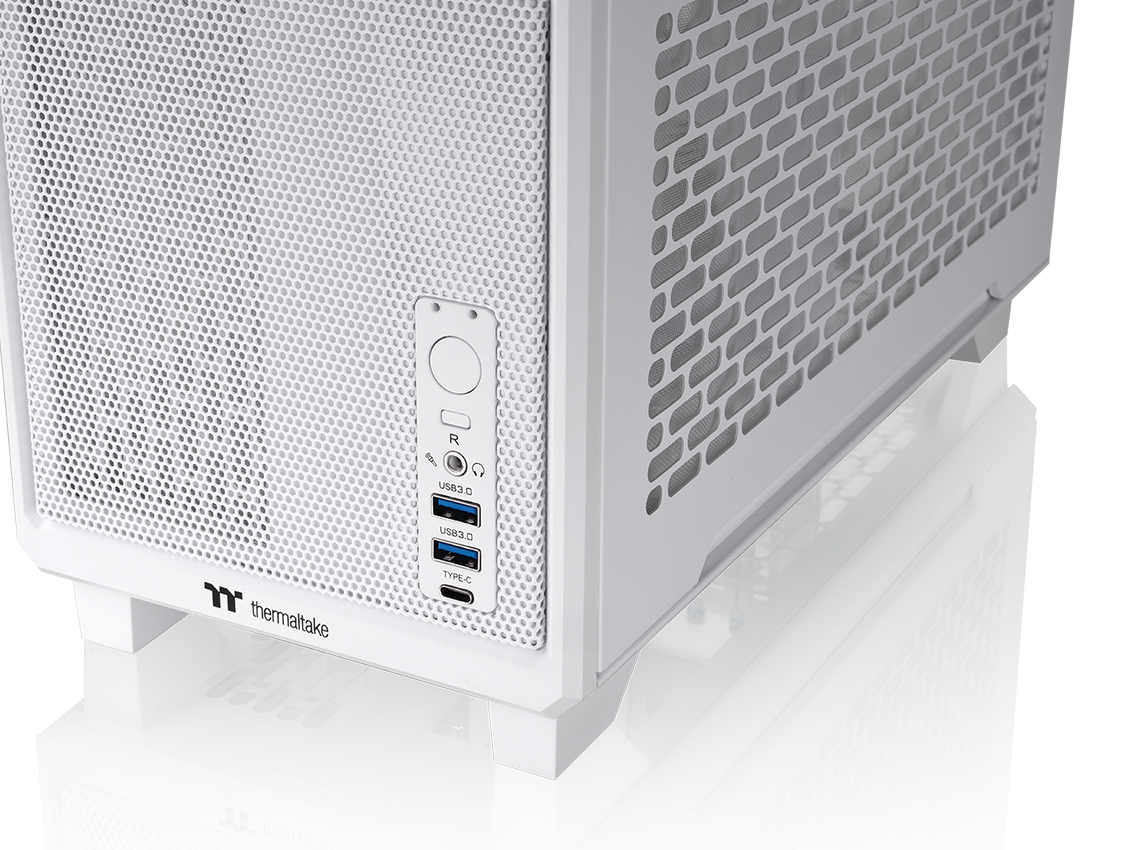

Handy I/O Ports

The front I/O ports consist of:

Power button
Reset button
HD Audio
2 x USB 3.0 Type-A
1 x USB 3.2 Gen 2 Type-C

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Specification

General Information

Part Number (P/N): CA-11A-00S6NN-00
Series: TR Series
Case Type: Mini Case
Color: White

Dimensions

Case Dimensions: 39.1 cm (L) x 17.9 cm (W) x 29.4 cm (H)

Build & Materials

Material: SPCC
Panels: Steel

Drive Bays

2 x 2.5”
Or 1 x 2.5”

Expansion Slots

3 Slots

Motherboard Support

Mini ITX (6.7” x 6.7”)

I/O Ports

USB 3.2 (Gen 2) Type-C x1
USB 3.0 x2
HD Audio x1

PSU Support

SFX / SFX-L PSU (optional)

Fan Support

Top: Up to 2 x 120mm / 2 x 140mm

Radiator Support

Top (AIO): Up to 280mm / 240mm / 140mm / 120mm

Clearance

CPU Cooler Max Height: 6.8 cm
GPU Max Length: 36 cm
GPU Max Width: 7 cm
PSU Max Length: 13 cm

Dimensions	39.1 × 17.9 × 29.4 cm
Color	White
Standard Delivery	One Day Delivery
Included Warranty	1 Year Free Warranty
