CPU

• AMD Socket AM5
• Supports AMD Ryzen 9000, 8000 & 7000 Series Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max 256GB DDR5

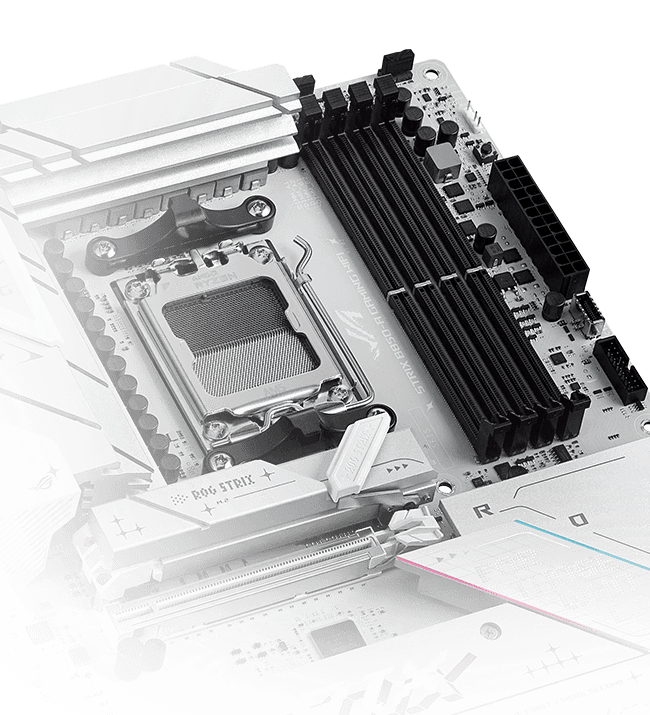

• Supports up to 8000+ MT/s (OC)
• Supports ECC & Non-ECC Un-buffered DIMM
• Dual channel memory architecture

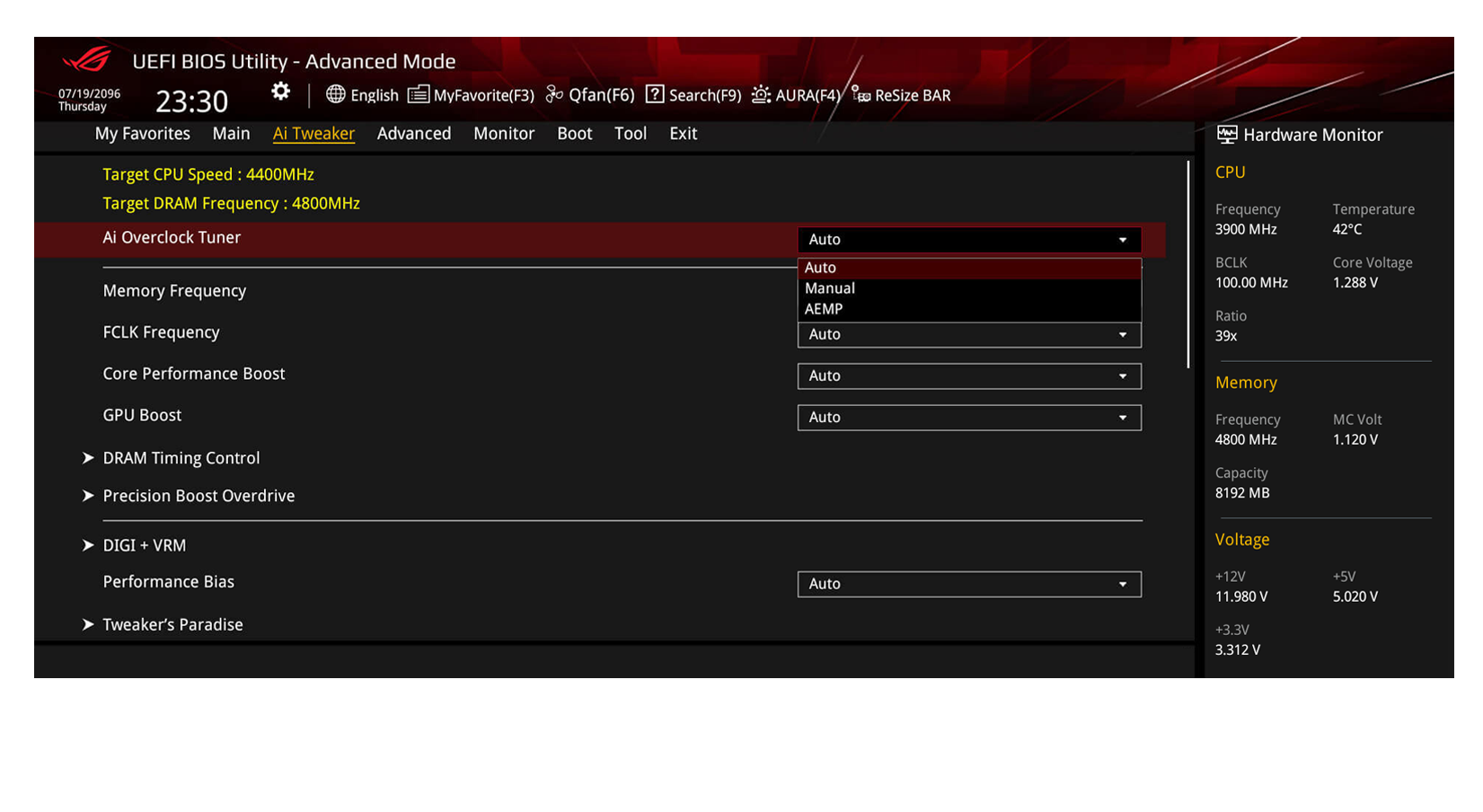

• Supports AMD EXPO and ASUS AEMP
• Non-ECC DDR5 supports On-Die ECC

Graphics

• 1 x DisplayPort (up to 8K @ 30Hz)
• 1 x HDMI (up to 4K @ 60Hz)
• Graphics support depends on CPU

Expansion Slots

• 1 x PCIe 5.0 x16 slot with Q-Release Slim (Ryzen 9000 & 7000)
• 1 x PCIe 5.0 x16 slot (Ryzen 8000, operates at PCIe 4.0 x8/x4)
• 1 x PCIe 4.0 x16 slot (x4 mode via chipset)
• PCIe Gen4 x16 shares bandwidth with M.2_3

Storage

• 4 x M.2 slots
  • 1 x PCIe 5.0 x4 (Ryzen 9000 & 7000)
  • 1 x PCIe 4.0 x4 (CPU)
  • 2 x PCIe 4.0 x4 (chipset)
• 2 x SATA 6Gb/s ports

Storage Notes

• M.2_3 shares bandwidth with PCIe x16 (Gen4) and may be disabled

RAID Support

• Ryzen 9000: RAID 0 / 1 / 5 / 10
• Ryzen 8000: RAID 0 / 1
• Ryzen 7000: RAID 0 / 1 / 10

Ethernet

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (2×2, 2.4 / 5 / 6 GHz, up to 2.9Gbps)
• Bluetooth 5.4

USB Connectivity

Rear USB (10 ports)

• 1 x USB Type-C (20Gbps)
• 2 x USB 10Gbps (Type-A)
• 1 x USB Type-C (10Gbps)
• 4 x USB 5Gbps (Type-A)
• 2 x USB 2.0

Front USB (7 ports)

• 1 x USB Type-C (10Gbps)
• 2 x USB 5Gbps
• 4 x USB 2.0

Audio

• ROG SupremeFX ALC4080 7.1 HD Audio Codec
• Supports up to 32-bit / 384kHz playback (front)
• 120 dB SNR playback / 110 dB SNR recording
• Built-in amplifier
• Optical S/PDIF out
• Premium capacitors and shielding

Back Panel I/O

• 1 x USB Type-C (20Gbps)
• 2 x USB 10Gbps (Type-A)
• 1 x USB Type-C (10Gbps)
• 4 x USB 5Gbps
• 2 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet
• 2 x Audio jacks
• 1 x Optical S/PDIF
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

Internal Connectors

Cooling

• 1 x CPU Fan header
• 1 x CPU OPT Fan header
• 1 x AIO Pump header
• 4 x Chassis Fan headers

Power

• 1 x 24-pin ATX
• 2 x 8-pin CPU power

Storage

• 4 x M.2 slots
• 2 x SATA ports

USB

• 1 x USB-C front connector (10Gbps)
• 1 x USB 5Gbps header
• 2 x USB 2.0 headers

Miscellaneous

• 3 x Addressable Gen 2 RGB headers
• 1 x CPU Overvoltage jumper
• 1 x Front Panel Audio header
• 1 x Power button
• 1 x System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt (USB4) header

Special Features

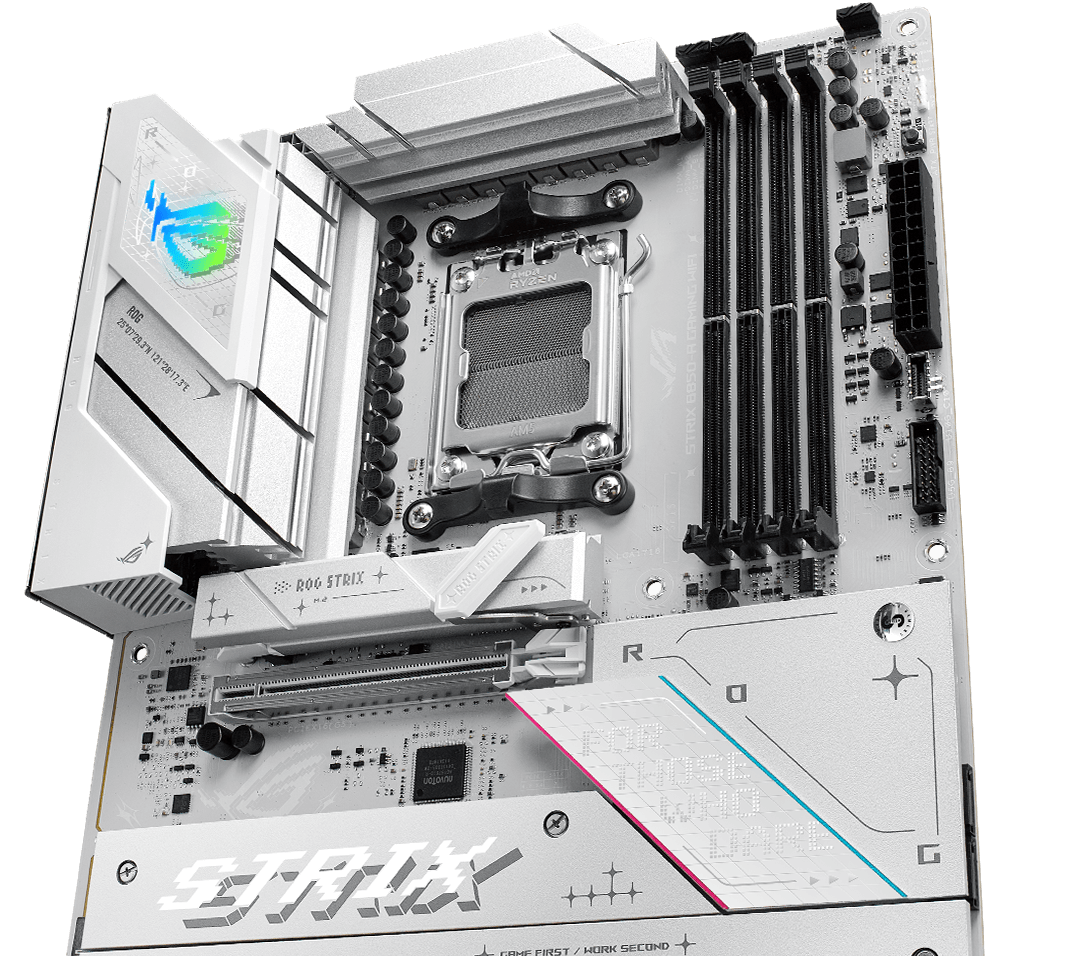

• Extreme Engine Digi+ power design
• 5K black metallic capacitors
• PCIe Slot Q-Release Slim with SafeSlot
• M.2 Q-Latch, Q-Release, Q-Slide
• Q-Antenna, Q-DIMM, Q-LED, Q-Slot
• VRM and M.2 heatsinks with backplate
• BIOS FlashBack with LED
• Clear CMOS button
• Pre-mounted I/O shield

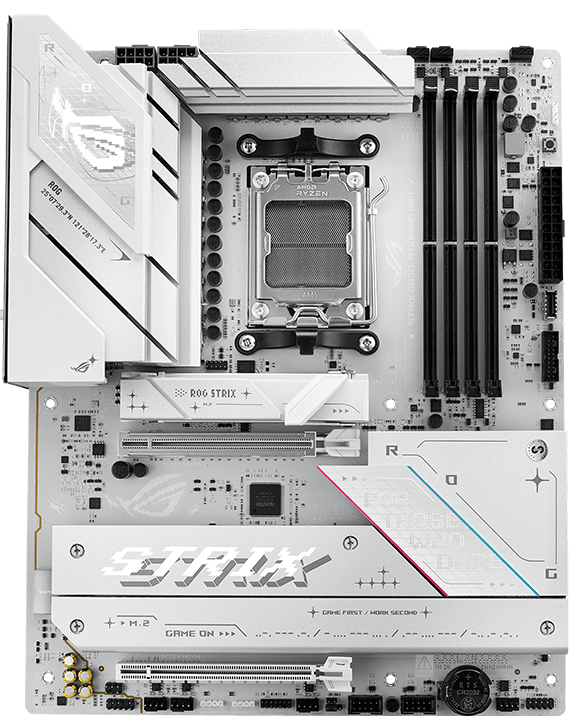

• Aura Sync RGB

Software Features

• ROG CPU-Z
• Dolby Atmos
• Armoury Crate
• AIDA64 Extreme (trial)
• Aura Creator / Aura Sync
• Fan Xpert 4
• GameFirst
• HWiNFO
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• Adobe Creative Cloud (trial)
• Norton 360 for Gamers (trial)
• WinRAR (trial)

BIOS

• 256 Mb Flash ROM
• UEFI AMI BIOS

Manageability

• WOL by PME
• PXE

Accessories

• 2 x SATA cables
• Wi-Fi antenna
• Cable ties
• M.2 Q-Latch / Q-Slide kits
• ROG key chain
• ROG stickers
• M.2 rubber kits
• Quick start guide

Operating System

• Windows 11

Form Factor

• ATX
• 12 x 9.6 inches (30.5 x 24.4 cm)
