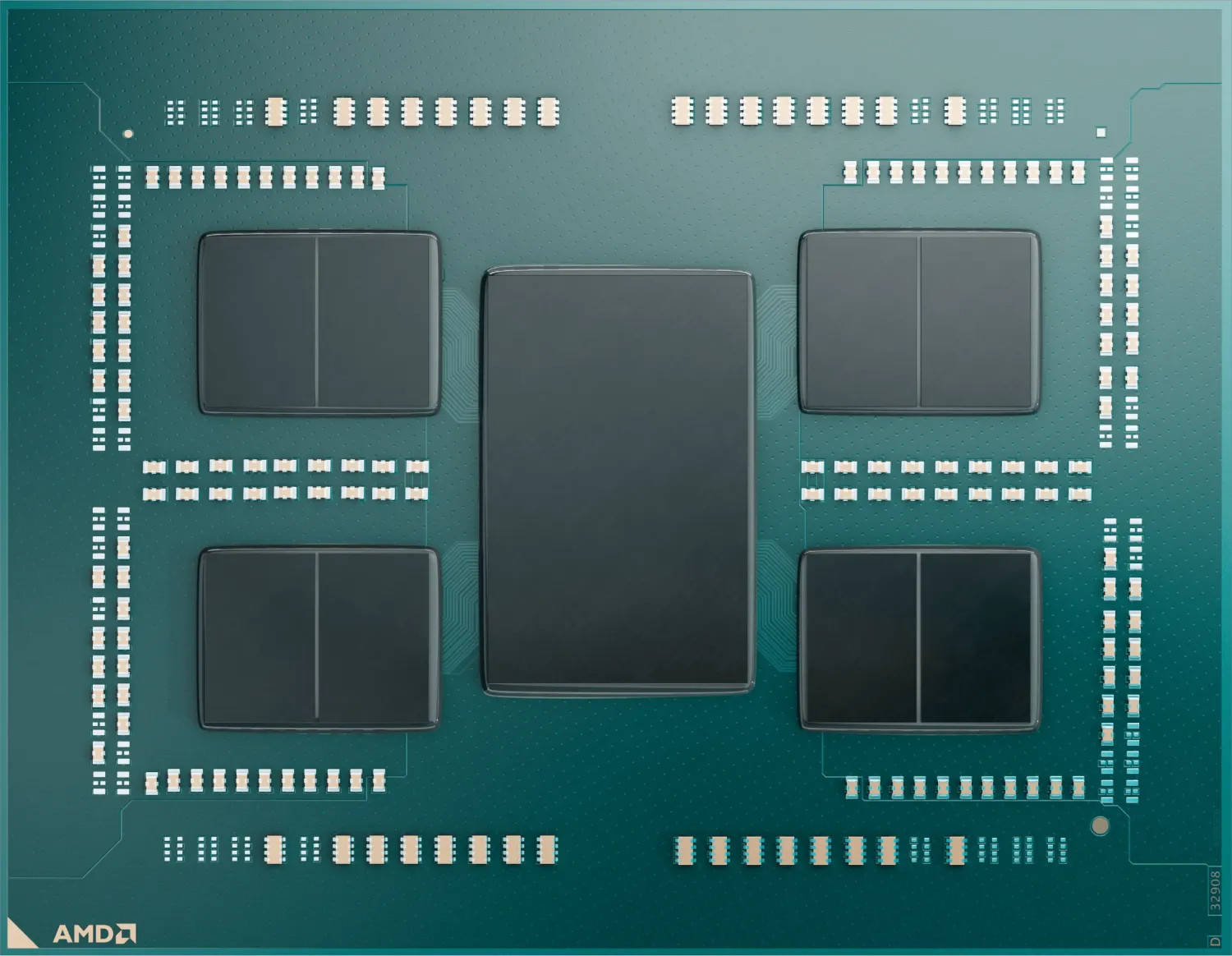

AMD Ryzen Threadripper 7960X Processor

AMD Ryzen Threadripper™ Processors for Desktop Workstations

AMD Ryzen™ Threadripper™ processors deliver battle-tested performance and capability to enable artists, architects, and engineers with the ability to get more done in less time.

Specification

Core Performance

• Cores / Threads: 24 Cores / 48 Threads

• Base Clock: 4.2 GHz

• Max Boost Clock: Up to 5.3 GHz

• L1 Cache: 1.5 MB

• L2 Cache: 24 MB

• L3 Cache: 128 MB

• Default TDP: 350W

• Process Technology: TSMC 5nm (CPU) + 6nm (I/O Die)

Strong for:

• 3D modeling & rendering

• Video editing & VFX

• Unreal Engine development

• Software compilation

• High-end multitasking systems

Platform & Expansion

• Socket: sTR5

• Chipset Support: TRX50

• PCIe Version: PCIe® 5.0

PCIe Configuration

• Total Lanes: 92

• Usable Lanes: 88

Supports multiple GPUs and several PCIe 5.0 NVMe SSDs for enthusiast workstation builds.

Memory Subsystem

• Memory Type: DDR5 RDIMM

• Memory Channels: 4-channel

• Max Speed: Up to 5200 MT/s

• ECC Support: Enabled by default

Provides high bandwidth suitable for heavy creator workloads (PRO models offer 8-channel).Overclocking & Performance Tuning

• Precision Boost 2

• Precision Boost Overdrive (PBO)

• Curve Optimizer

• AMD EXPO™ Memory Profiles

• Fully unlocked for overclocking

Graphics

• Integrated Graphics: No

• Discrete GPU Required
