Specification

Performance

• Processor: Intel Core i3-14100 (14th Gen)
  • 4 Cores / 8 Threads (All Performance cores)
  • Base 3.5GHz, Boost up to 4.7GHz
  • 12MB Cache
• Graphics: Integrated Intel UHD Graphics 730
• Chipset: Intel B760

Memory & Storage

• RAM: 8GB DDR5-4800 (1x UDIMM)
• Memory Slots: 2 (Dual-channel supported)
• Max Memory: Up to 64GB DDR5-5600
• Storage: 512GB M.2 PCIe 4.0 NVMe SSD
• Max Storage Support:
  • 1x M.2 SSD (up to 1TB)
  • 1x 3.5″ HDD (up to 2TB)
  • 1x 2.5″ HDD (user upgrade only)

Expansion & Slots

• 1x PCIe 3.0 x16 (Full height, GPU support)
• 1x PCIe 3.0 x1
• 2x M.2 slots (1 WLAN + 1 SSD)

Audio

• Codec: Realtek ALC623-CG HD Audio
• Speakers: 2W x 1

Design & Build

• Form Factor: Tower (13.6L)
• Dimensions: 145 x 294 x 340 mm
• Weight: ~5.6 kg
• Color: Black
• Keyboard: USB Calliope Keyboard (UK Layout)
• Mouse: USB Calliope Mouse
• Chassis: Tool-less design

Connectivity

• Wi-Fi / Bluetooth: Not included
• Ethernet: RTL8111K Gigabit LAN

Ports

Front Ports

• 1x USB-C (USB 3.2 Gen 1, 5Gbps, 15W charging)
• 4x USB-A (USB 3.2 Gen 1)
• 1x Headphone/Mic combo
• 1x Microphone jack

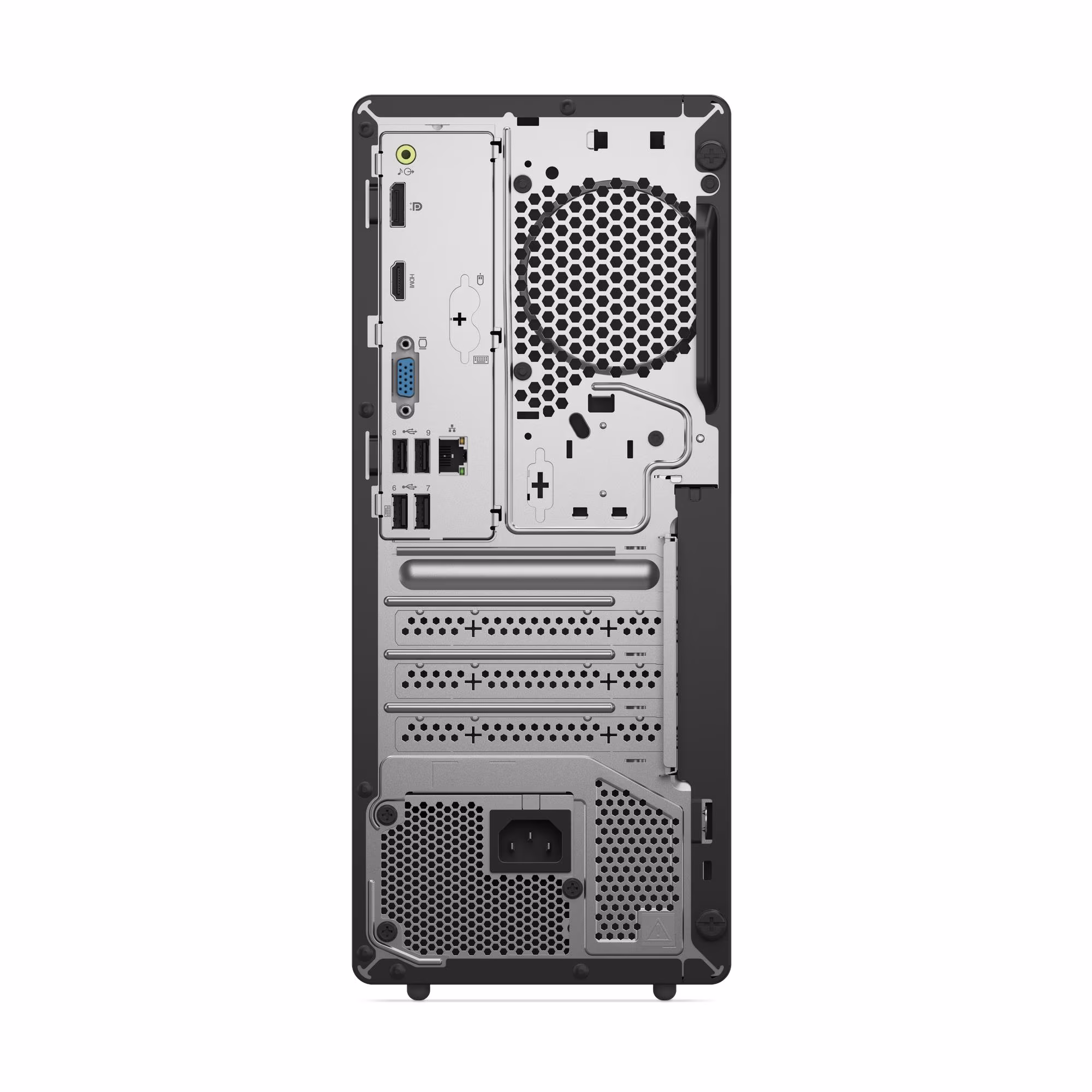

Rear Ports

• 4x USB 2.0 (one with Smart Power On)
• 1x HDMI 2.1
• 1x DisplayPort 1.4a
• 1x VGA
• 1x Ethernet (RJ-45)
• 1x Line-out

Security

• Discrete TPM 2.0 (TCG Certified)
• Kensington Lock Slot
• Padlock Loop
• Chassis Intrusion Switch

Power

• Power Supply: 180W (85% efficiency)

Certifications

• RoHS / WEEE / REACH compliant
• TCO Certified 9.0
