Specification

Performance

• Processor: Intel Core i3-13100 (13th Gen)
  • 4 Cores / 8 Threads (All Performance cores)
  • Base 3.4GHz, Boost up to 4.5GHz
  • 12MB Cache
• Graphics: Integrated Intel UHD Graphics 730
• Chipset: Intel B660

Memory & Storage

• RAM: 4GB DDR4-3200 (1x UDIMM)
• Memory Slots: 2 (Dual-channel supported)
• Max Memory: Up to 64GB DDR4-3200
• Storage: 256GB M.2 PCIe 4.0 NVMe SSD (Opal 2.0)
• Max Storage Support:
  • 1x M.2 SSD (up to 1TB)
  • 1x 3.5″ HDD (up to 2TB)

Expansion & Slots

• 1x PCIe 4.0 x16 (Low-profile)
• 1x PCIe 3.0 x1 (Low-profile)
• 2x M.2 slots (1 WLAN + 1 SSD)

Audio & Multimedia

• Codec: Realtek ALC623-CG HD Audio
• Speakers: 1W x 1
• Card Reader: 7-in-1
• Optical Drive: DVD±RW

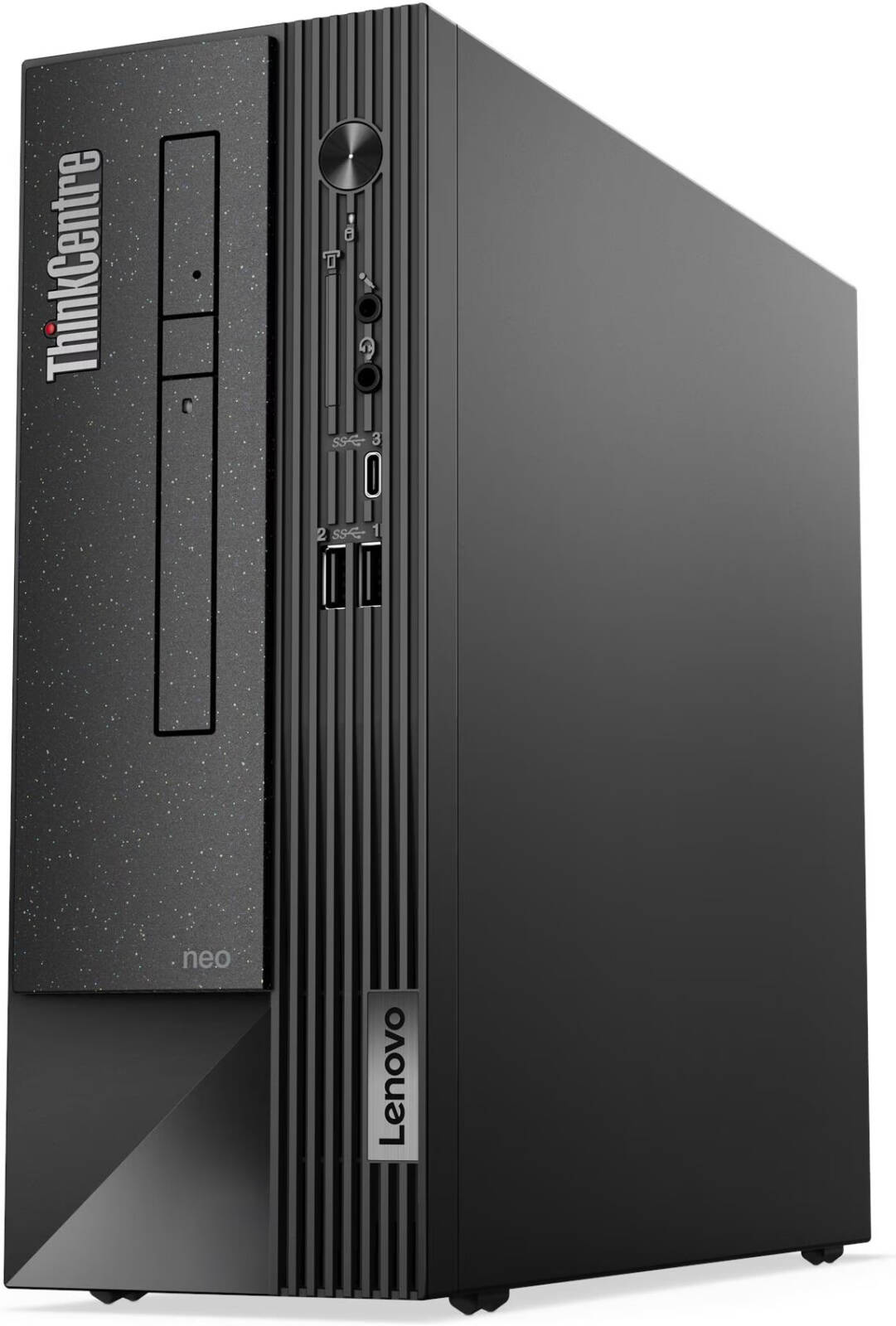

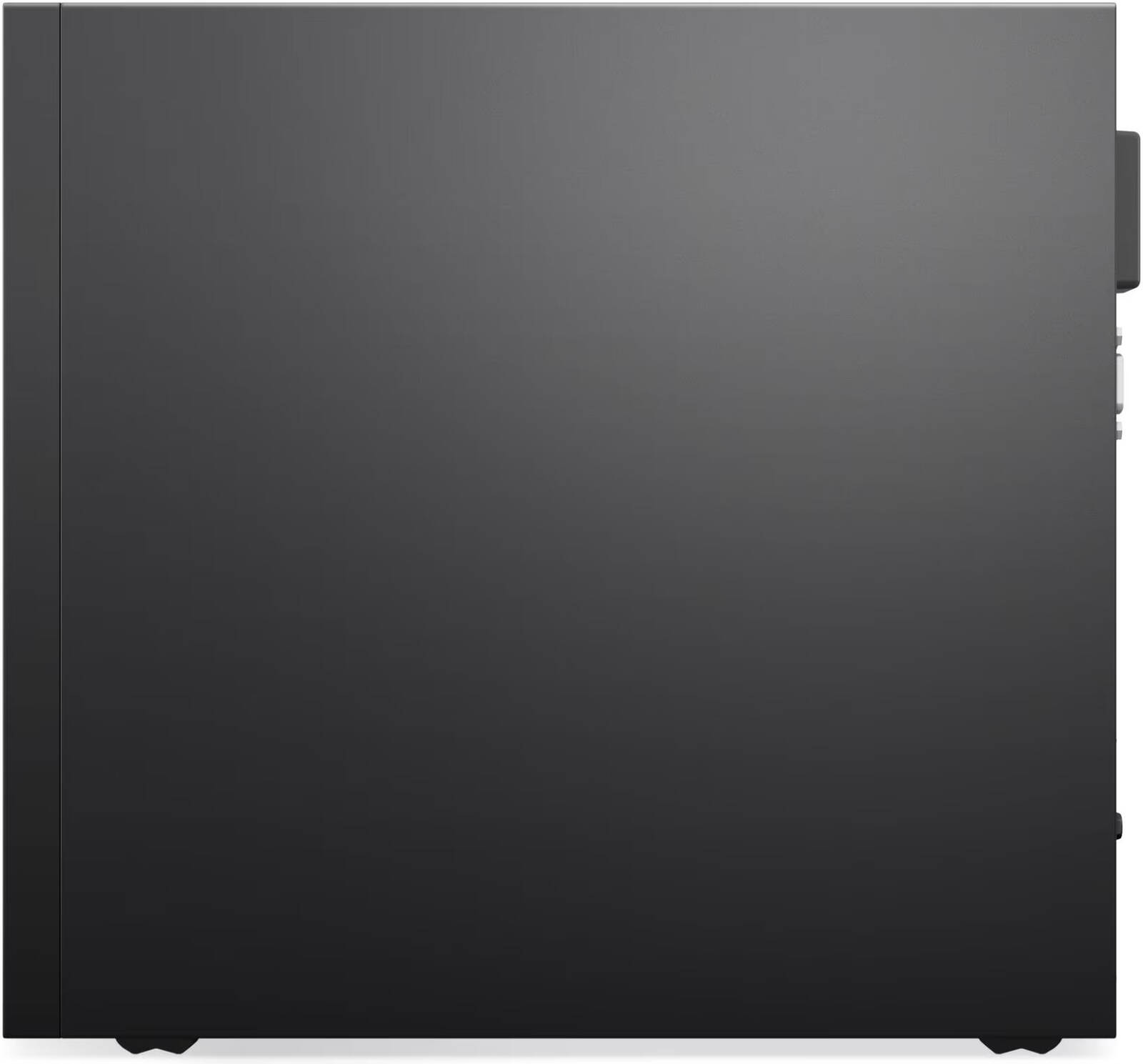

Design & Build

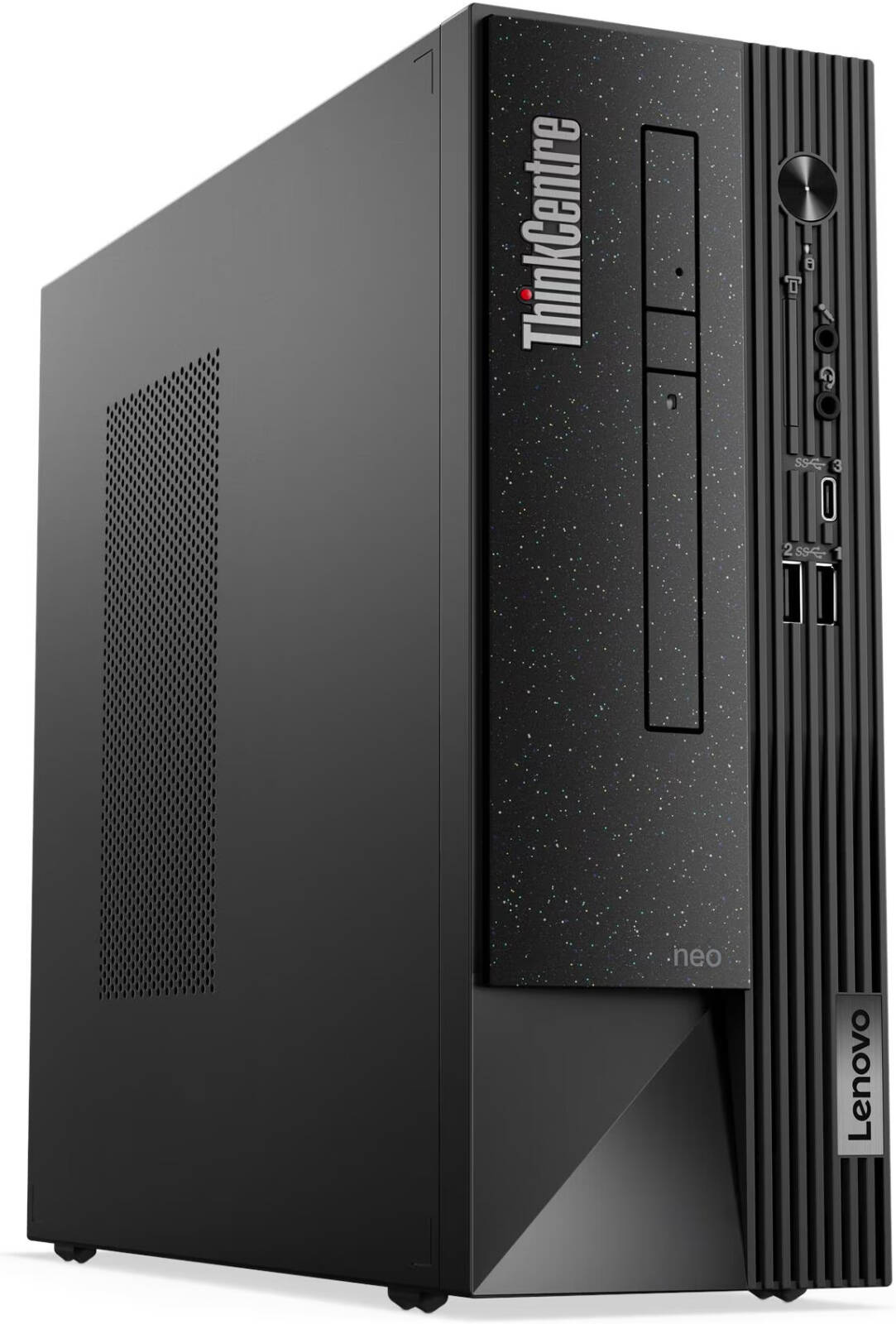

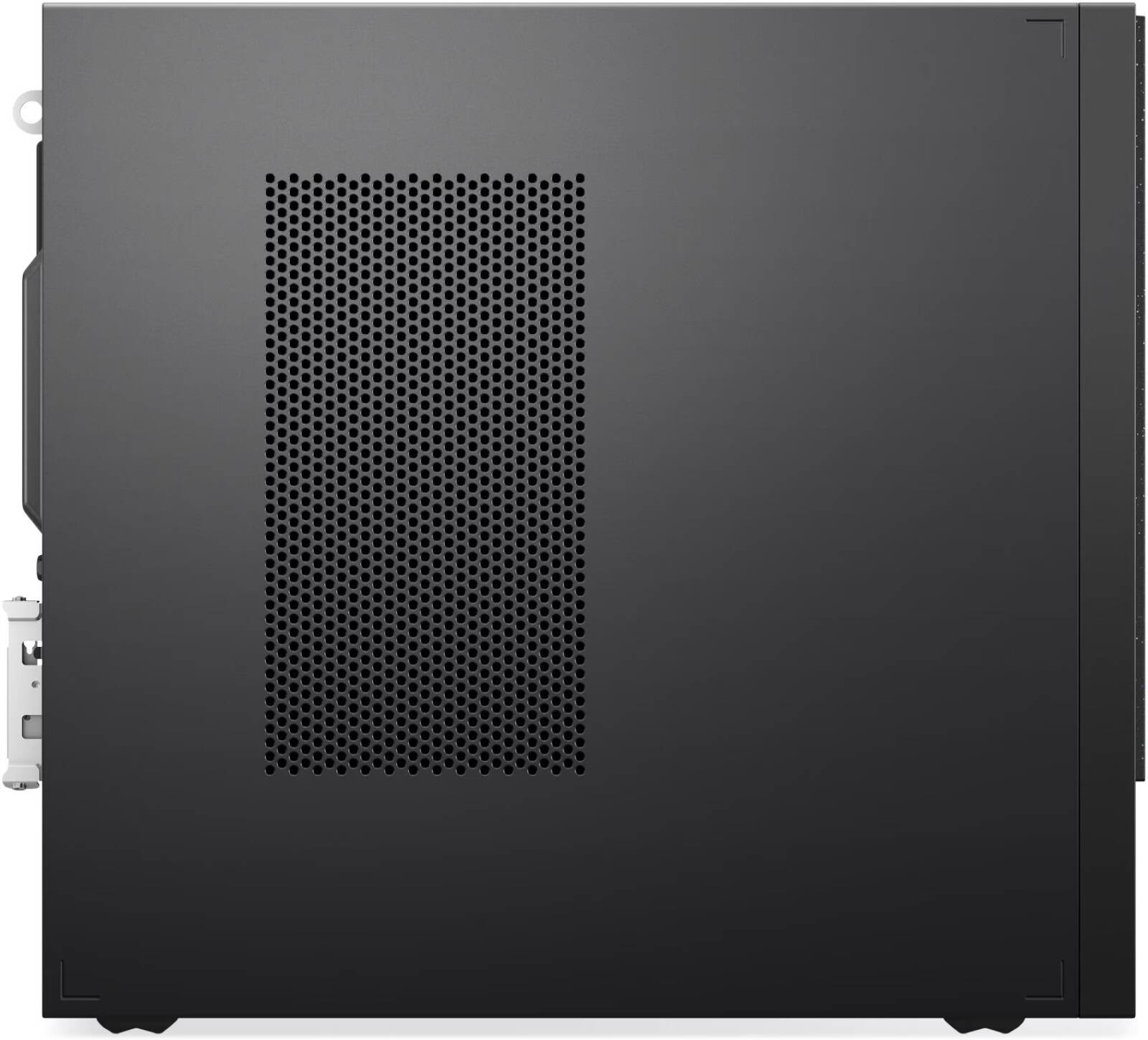

• Form Factor: Small Form Factor (SFF – 7.4L)
• Dimensions: 100 x 308 x 274.8 mm
• Weight: ~4.5 kg
• Color: Black
• Keyboard: USB Calliope Keyboard (UK Layout)
• Mouse: USB Calliope Mouse

Connectivity

• Wi-Fi / Bluetooth: Not included
• Ethernet: Gigabit LAN (100/1000M)

Ports

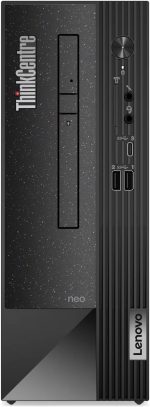

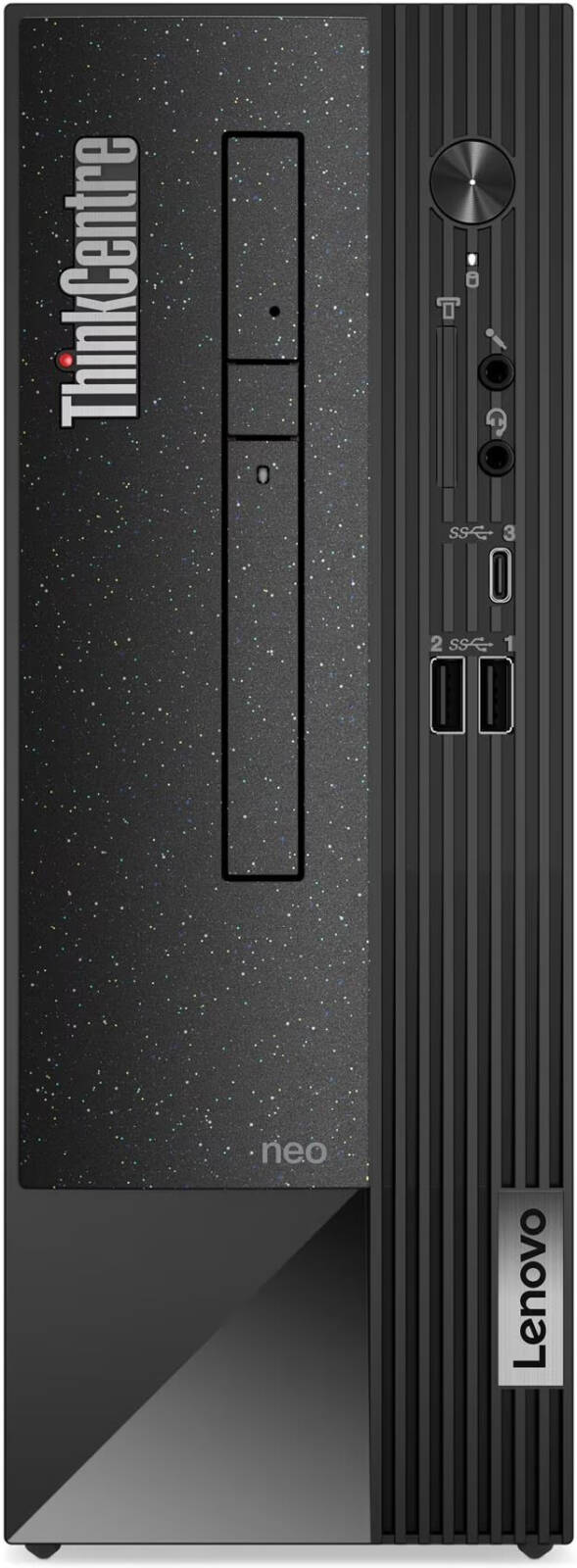

Front Ports

• 1x USB-C (USB 3.2 Gen 1, 5V/3A charging)
• 2x USB-A (USB 3.2 Gen 1)
• 1x Headphone/Mic combo
• 1x Microphone jack

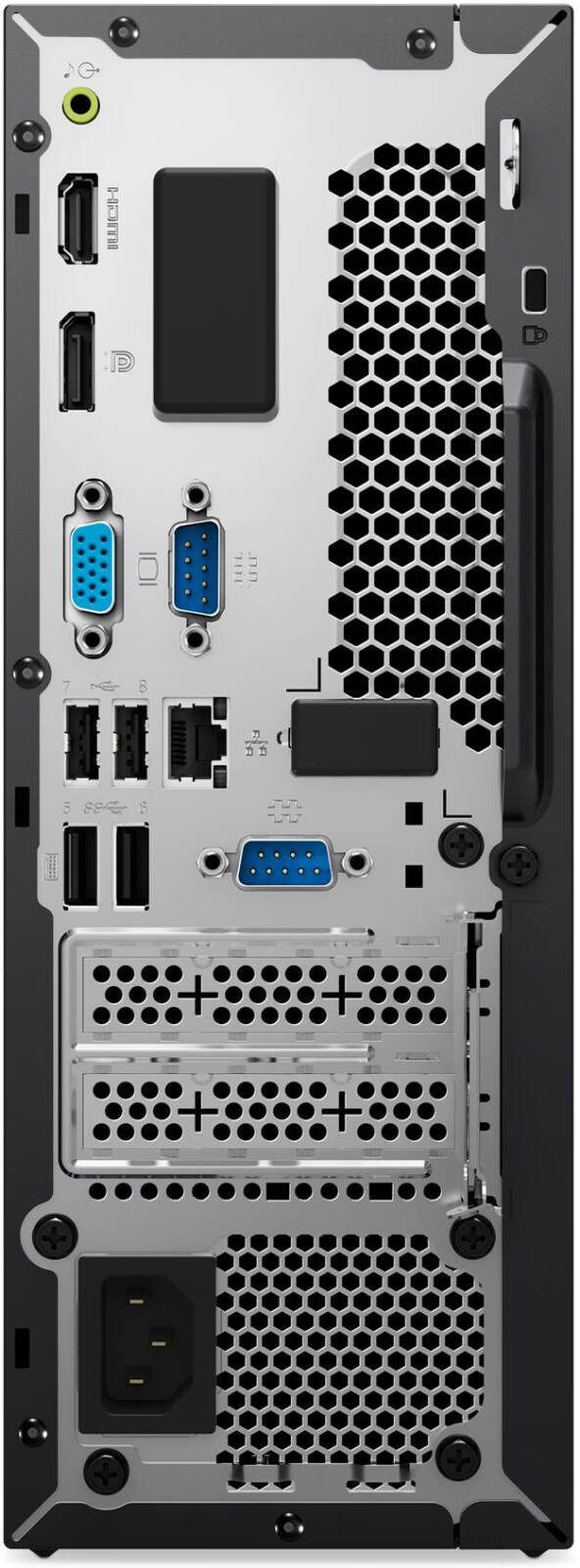

Rear Ports

• 2x USB 2.0
• 2x USB 3.2 Gen 1 (one with Smart Power On)
• 1x HDMI 2.1
• 1x DisplayPort 1.4
• 1x VGA
• 1x Ethernet (RJ-45)
• 1x Line-out

Optional Ports

• Parallel port
• Serial port

Security

• Discrete TPM 2.0 (TCG Certified)
• Kensington Lock Slot
• Padlock Loop

Power

• Power Supply: 180W (85% efficiency)

Certifications

• ErP Lot 3
• RoHS compliant
• TCO Certified

Software

• Operating System: Not included
• Bundled Software: None
