Specification

Processor & Performance

• Processor: Intel Core i5-13420H
  • 8 Cores (4 Performance + 4 Efficient) / 12 Threads
  • P-core up to 4.6 GHz, E-core up to 3.4 GHz
  • 12MB Intel Smart Cache
• Graphics: Integrated Intel UHD Graphics
• Chipset: Intel SoC Platform

Memory & Storage

• Installed Memory: 8GB DDR5-5200 (1x SODIMM)
• Memory Slots: 2x DDR5 SODIMM (Dual Channel Supported)
• Maximum Memory: Up to 64GB DDR5-5200
• Storage: 512GB M.2 PCIe 4.0 NVMe SSD
• Storage Expansion:
  • Up to 2x M.2 SSD (max 1TB each)

Audio

• Audio Chip: Realtek ALC623-CG (HD Audio)
• Speakers: 1W x 1

Power

• Power Supply: 180W (85% efficiency)

Design & Build

• Form Factor: Small Form Factor (SFF, 8.2L)
• Dimensions (W × D × H): 92.5 × 291.7 × 339.5 mm
• Weight: Approx. 4.63 kg
• Chassis Color: Black (Grey Bezel)

Expansion & Internal Slots

• PCIe Slots:
  • 1x PCIe 4.0 x16 (Low-profile)
  • 1x PCIe 3.0 x1 (Low-profile)
• M.2 Slots: 3 total
  • 2x for SSD
  • 1x for WLAN

Connectivity

• Ethernet: 10/100/1000 Mbps (Gigabit LAN)
• Wireless: Not supported (No Wi-Fi / Bluetooth)

Ports

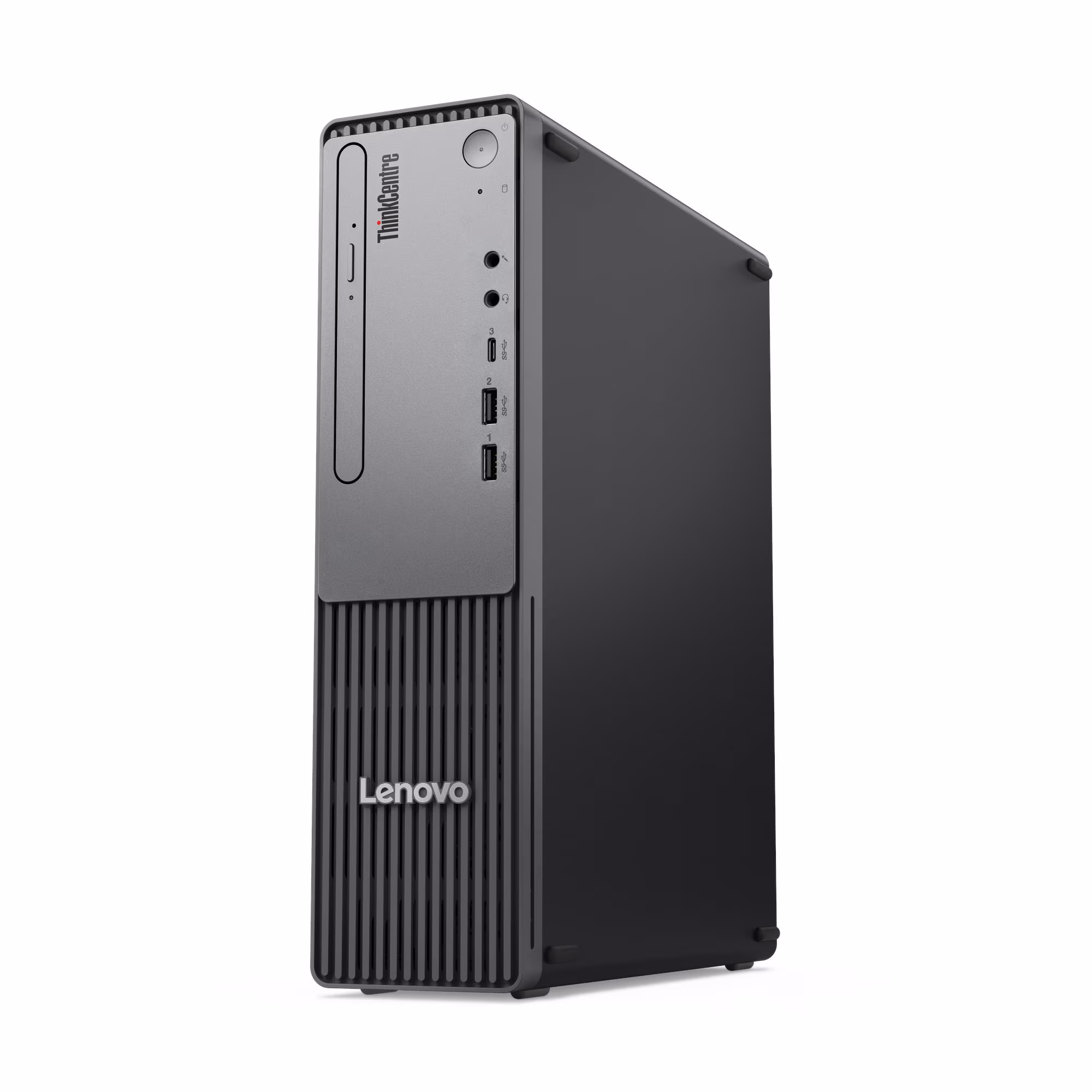

Front Ports

• 1x USB-C (USB 3.2 Gen 1, 5Gbps, 15W charging)
• 2x USB-A (USB 3.2 Gen 1, 5Gbps)
• 1x Headphone/Mic combo (3.5mm)
• 1x Microphone (3.5mm)

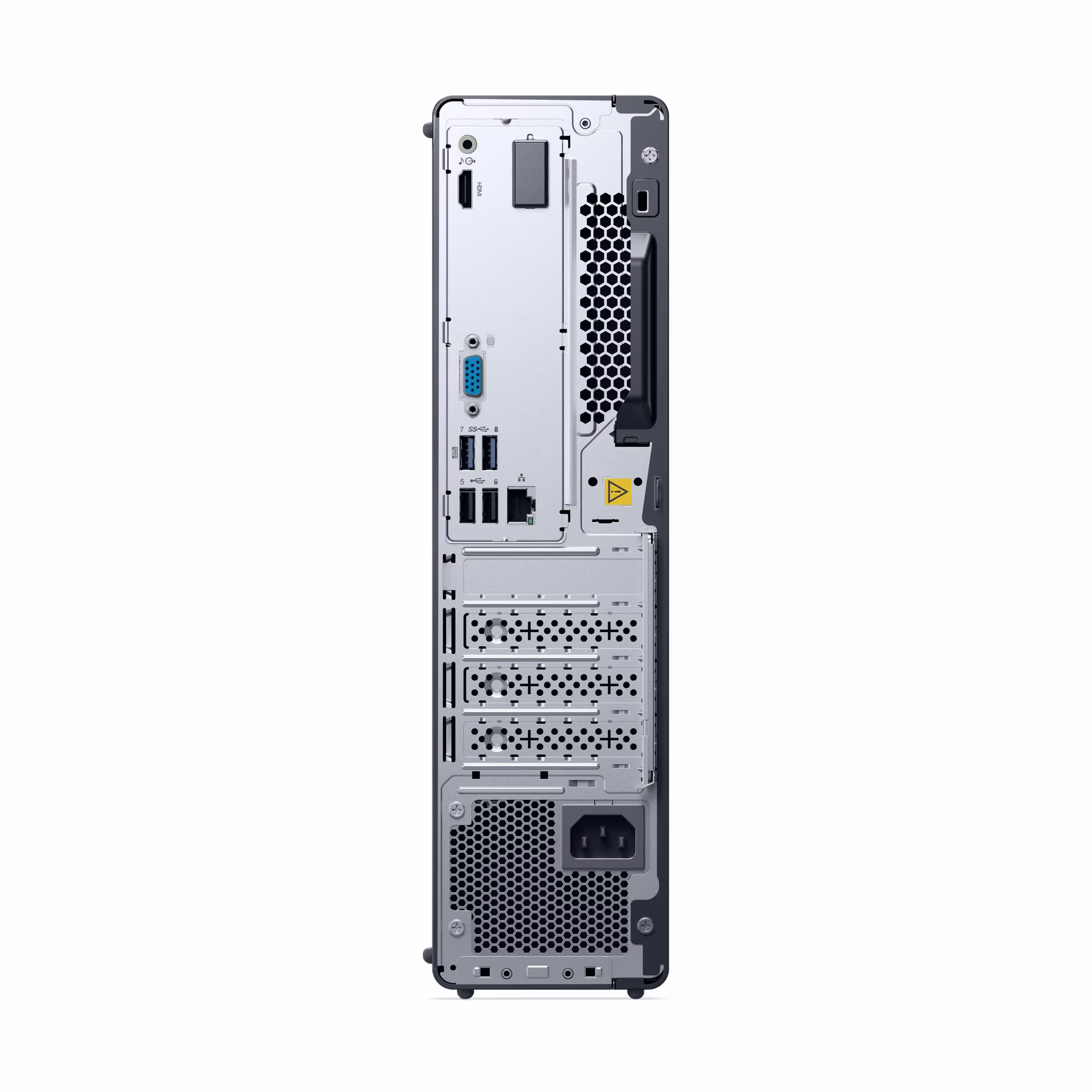

Rear Ports

• 2x USB 2.0
• 2x USB 3.2 Gen 1 (one with Smart Power On)
• 1x HDMI 2.1
• 1x VGA
• 1x RJ-45 Ethernet
• 1x Line-out (3.5mm)

Input Devices

• Keyboard: USB Calliope Keyboard (Black, UK Layout)
• Mouse: USB Calliope Mouse (Black)

Security

• Firmware TPM 2.0
• Kensington Security Slot
• Padlock Loop

Software

• Operating System: Not Included
• Bundled Software: None
