• Metallic Appearance Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection.
• Exquisite Image Industrial A+ interface, auto-coloring and image-enhancing engine.

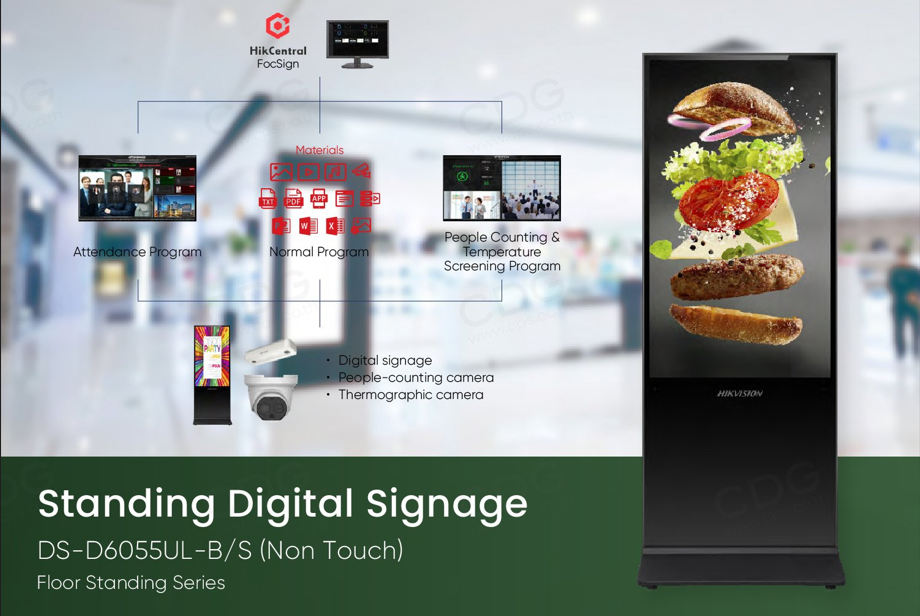

• Variable Materials Static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpage, live video, number calling, pop-up pictures, etc.
• Flexible Program Schedule Free schedule and district display of multiple materials. Multiple play modes with customization support.
• Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview. Remote program release and local (USB) program update.
• Organization Permission 5-level organization available for managing materials, programs, terminals, and users. Create custom user with precise permission assignment. Multiple permission templates available.
• Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver password to protect displaying. Encryption of data storage and transmission to avoid data tampering. With no default password, users can activate and set initial password to guarantee the password safety.

Specification

Display

• Screen Size: 54.6 inch
• Resolution: 3840 × 2160 (4K UHD)
• Viewing Angle: 178° (H) / 178° (V)
• Active Display Area: 1209.6 (H) × 680.4 (V) mm
• Backlight: D-LED
• Pixel Pitch: 0.315 (H) × 0.315 (V) mm
• Brightness: 500 cd/m²
• Contrast Ratio: 5700:1
• Color Depth: 8-bit + FRC
• Color Gamut: 72% NTSC
• Response Time: 6.5 ms
• Refresh Rate: 60 Hz

Built-in System

• Operating System: Android 8.1.0
• CPU: Cortex-A17, Quad-core, 1.6 GHz
• Memory: 2 GB RAM
• Storage: 16 GB eMMC

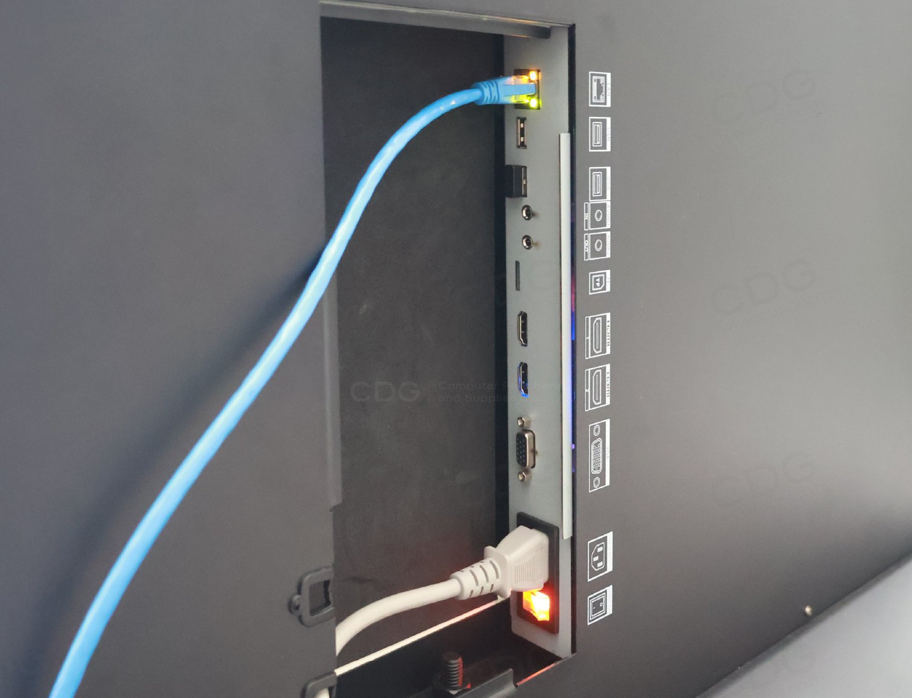

Connectivity & Interfaces

Input Ports

• 1 × Audio In
• 2 × HDMI In
• 1 × VGA In

Output Ports

• 1 × Audio Out

Network

• 1 × LAN
• Wi-Fi
• Bluetooth 4.2

Data Ports

• 2 × USB
• 1 × TF Card Slot

Audio

• Speakers: 2 × Built-in
• Output: 8Ω, 5W each

Power

• Power Supply: 100–240V AC, 50/60 Hz
• Power Consumption: ≤ 150W
• Standby Consumption: < 0.5W

Physical Specifications

• Product Dimensions (W × H × D):
  1962.7 × 738 × 450 mm
  (77.27 × 29.06 × 17.72 inches)
• Package Dimensions (W × H × D):
  2100 × 916 × 303 mm
  (82.68 × 36.06 × 11.93 inches)
• Net Weight: 66.19 kg
• Gross Weight: 81.19 kg

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Working Humidity: 0% to 90%

Supported Media Formats

• Video: DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, ASF
• Audio: MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, AAC, M4A
• Images: JPG, JPEG, BMP, GIF, PNG
• Others: XMF, MXMF, RTTTL, RTX, OTA, IMY

Package Contents

• 1 × Screen
• 1 × Base
• 1 × Key
• 1 × Screw Kit
• 1 × Installation Manual
