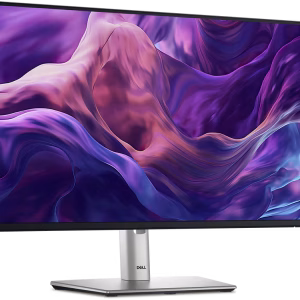

Dell Pro 24 Plus USB-C Hub – P2425HE Monitors, 1920 x 1080 Resolution, 100Hz Refresh Rate, 5ms GtG Fast Response Time, Black

• Diagonal Viewing Size: 23.8″

• Preset Display Area (H x V)
– 52.70 cm x 29.65 cm
– (20.75″ x 11.67″)
• Area: 156,246.28 mm2 (242.18 inches2)

• Panel Type: In-Plane Switching (IPS) technology
• Display Screen Coating: Anti-glare with 3H hardness
• Maximum Preset Resolution: 1920 x 1080
• Refresh rate: 100 Hz
• Viewing Angle: 178° vertical / 178° horizontal
• Pixel Pitch: 0.2745 mm x 0.2745 mm
• Pixel Per Inch (PPI): 92.53
• Contrast Ratio: 1,500: 1 (typical)
• Aspect Ratio: 16:9
• Backlight Technology: LED edgelight system
• Brightness: 250 cd/m2 (typical)

• Response Time
– 5ms gray-to-gray (Fast mode)
– 8ms gray-to-gray (Normal mode)

• Color Support: Up to 16.7 million colors
• Color Gamut: 99% sRGB
• TÜV Eye Comfort: Yes, 4-Star
• Ficker Free: Yes

Connectivity

• Connectivity
– 1x HDMI 1.4 (HDCP 1.4) (Supports up to FHD 1920 x 1080 100Hz TMDS as per specified in HDMI 1.4)
– 1x DP 1.4 (HDCP 1.4)
– 1x DP-out (1.4) with MST (HDCP 1.4)
– 1x RJ45 Ethernet port, 1GbE
– 1x USB 3.2 Gen1 Type-C upstream (Alt. mode with DP1.4) with up to 90W PD
– 3x USB 3.2 Gen1 Type-A downstream
– 1x USB 3.2 Gen1 Type-C downstream with up to 15W PD (data only)

• Built-in Speaker: No
• USB Power Delivery: Yes, up to 90W via USB-C upstream (Alt. mode with DP1.4) port, and up to 15W via USB-C downstream port

Adjustability

• Adjustability: Height, Tilt, Swivel, Pivot
• Height: Up to 15.00 cm
• Tilt: -5°/+21°
• Swivel: -45°/+45°
• Pivot: -90°/+90°

Daisy Chain Availability

• Daisy Chain Availability: Yes

Dell Power Button Sync

• Dell Power Button Sync: Yes, via USB Type-C upstream port

Dell Display Manager Compatibility

• Dell Display Manager Compatibility: Yes with Easy Arrange

Remote Asset Management

• Remote Asset Management: Yes

Voltage Required

• Voltage Required: 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2 A (typ)

Power Consumption (Operational) (typical)

• Power Consumption (Operational) (typical)
– 0.3 W (Off mode)
– 0.3 W (Standby mode)
– 1.0 W (Networked Standby mode)
– 13.9 W (On mode)
– 180 W (Max)
– 15.2 W (Pon)
– 49.8 kWh (TEC)

Audio Output

• Audio Output: Optional soundbar (sold separately)

Security

• Security: Security-lock slot (based on Kensington Security Slot™)

Compliant Standards

• Compliant Standards
– ENERGY STAR certified monitor
– EPEAT GOLD
– EPEAT Climate+
– TCO Certified Displays
– TCO Certified Edge
– RoHS-compliant
– BFR / PVC free monitor (excluding external cables)
– Arsenic-free glass and mercury-free (panel only)

Flat Panel Mount Interface

• Flat Panel Mount Interface: VESA (100 mm x 100mm)

Temperature Range

• Temperature Range
– Operating: 0°C ~ 40°C (32°F ~ 104°F)
– Non-operating: -20° ~ 60°C (-4° ~ 140°F)

Humidity Range

• Humidity Range
– Operating: 10% ~ 80% (non-condensing)
– Non-operating: 5% ~ 90% (non-condensing)

Altitude

• Altitude
– Operating: 5,000 m (16,404 ft) max
– Non-operating: 12,192 m (40,000 ft) max

What’s Included

• What’s Included
– 1x Monitor panel
– 1x Stand riser and base
– 1x Cable tie
– 1x Quick setup guide
– 1x Safety, Environmental, and Regulatory Information

Cables Included

• Cables Included
– 1x Power cord
– 1x DP-to-DP cable, 1.8m
– 1x USB 3.2 Gen2 Type C-to-C cable, 1.0m

Physical Characteristics

• Dimensions
– Without stand – width: 53.87 cm – depth: 5.00 cm – height: 31.42 cm
– With stand – width: 53.87 cm – depth: 18.19 cm – height: 36.40 cm ~ 49.66 cm

• Weight
– Weight (panel only): 3.69 kg
– Weight (with packaging): 7.24 kg
