Viewsonic ViewBoard IFP8652-1CF 86″ 4K Interactive Display, TFT LCD Module with DLED Backlight, Android 11, Black
Quick Overview
- New Exterior Design with Innovative Multimedia Sound Bar
- USB-C for plug-and-play connectivity via a single cable
- Dual-pen, 33-point touch with naturally smooth writing experience
- Industry-leading audio and advanced eye-care technology
- Centralized remote management system via myViewBoard Manager
Original price was: AED 14,999.00.AED 14,399.00Current price is: AED 14,399.00.
Warranty
| Included Warranty | 1 Year Free Warranty |
|---|
Delivery
| Standard Delivery | One Day Delivery |
|---|

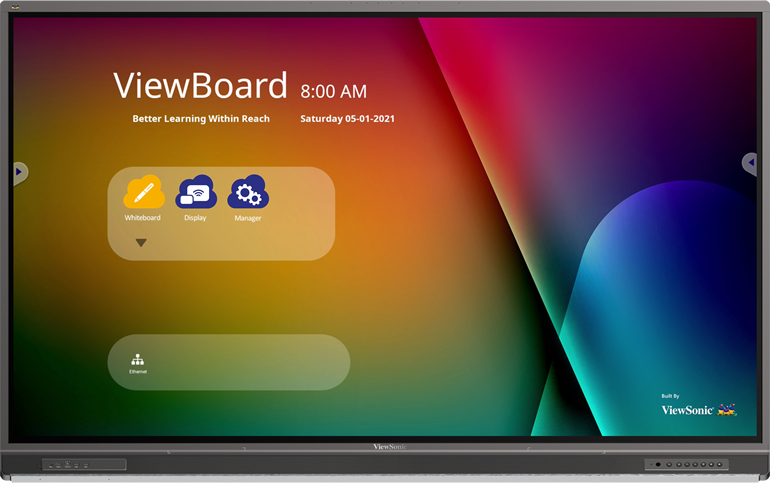

OVERVIEW
The ViewBoard® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.

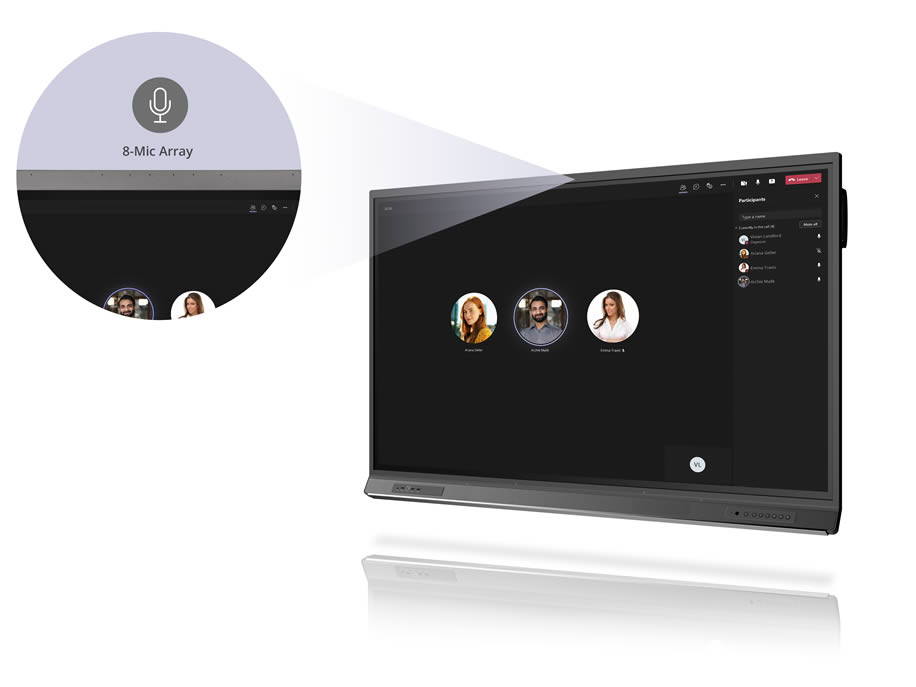

Responsive 8-Mic Array
An in-built 8-mic array with acute noise detection and cancellation capability. Combined with another industry-first feature within the ViewBoard 52 Series, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source.

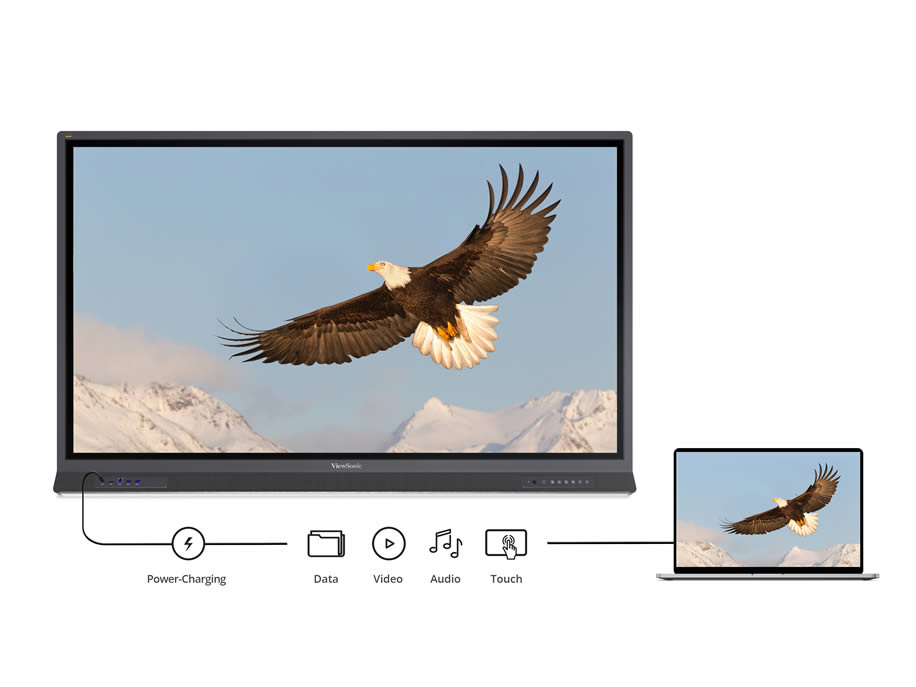

Instant Connection via USB-C
A single-cord solution for data, video and power with no preparation or technical know-how required. Teachers simply plug-and-play for immediate presentation, whiteboarding, and collaborative functionality using the familiar software of their own device.

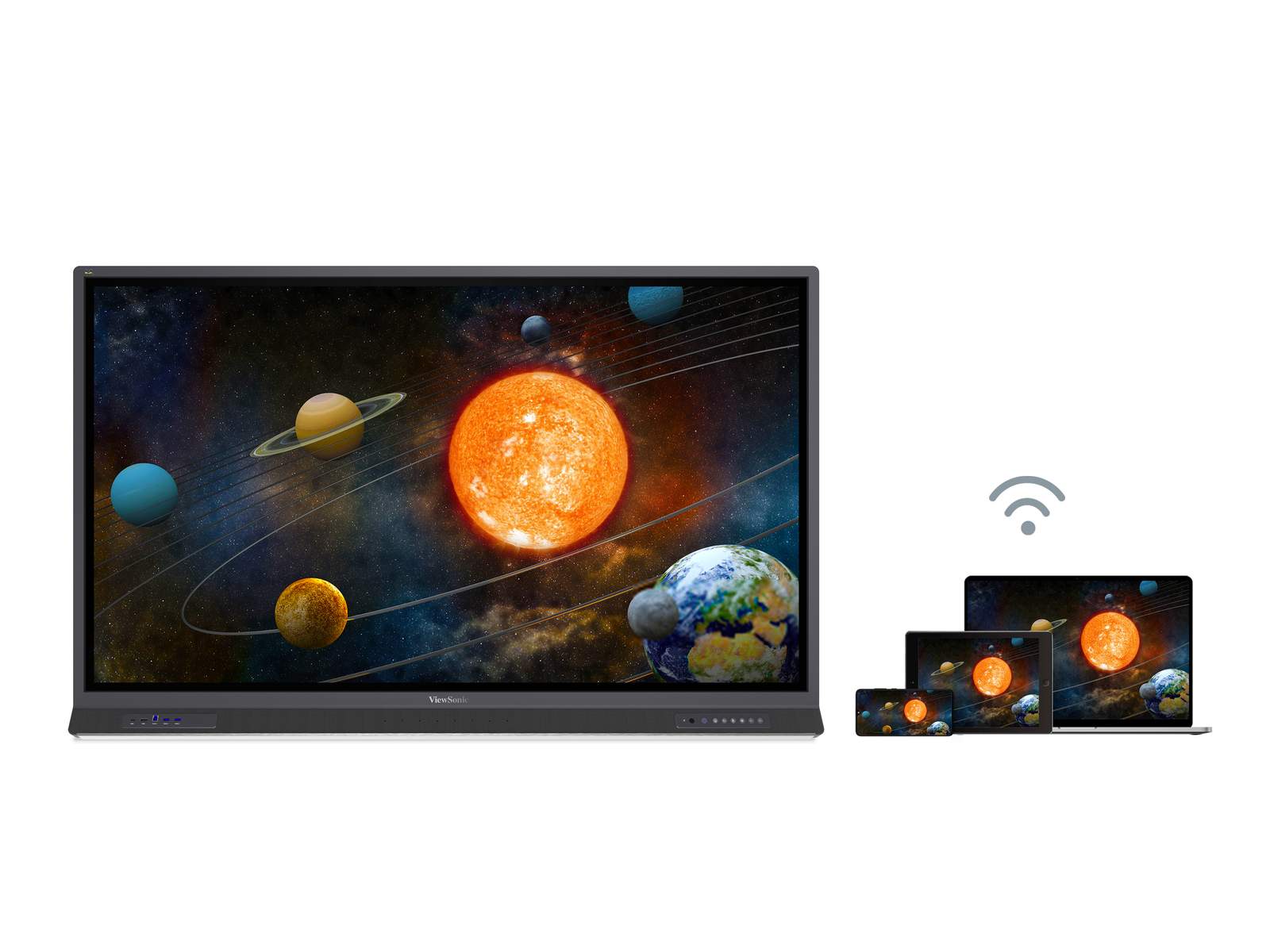

Wireless Connection via vCastSender
No cable required. ViewSonic’s vCastSender application allows teachers to connect wirelessly through a one-time password for cable-free classes with complete functionality of the display’s presentation and collaboration tools.

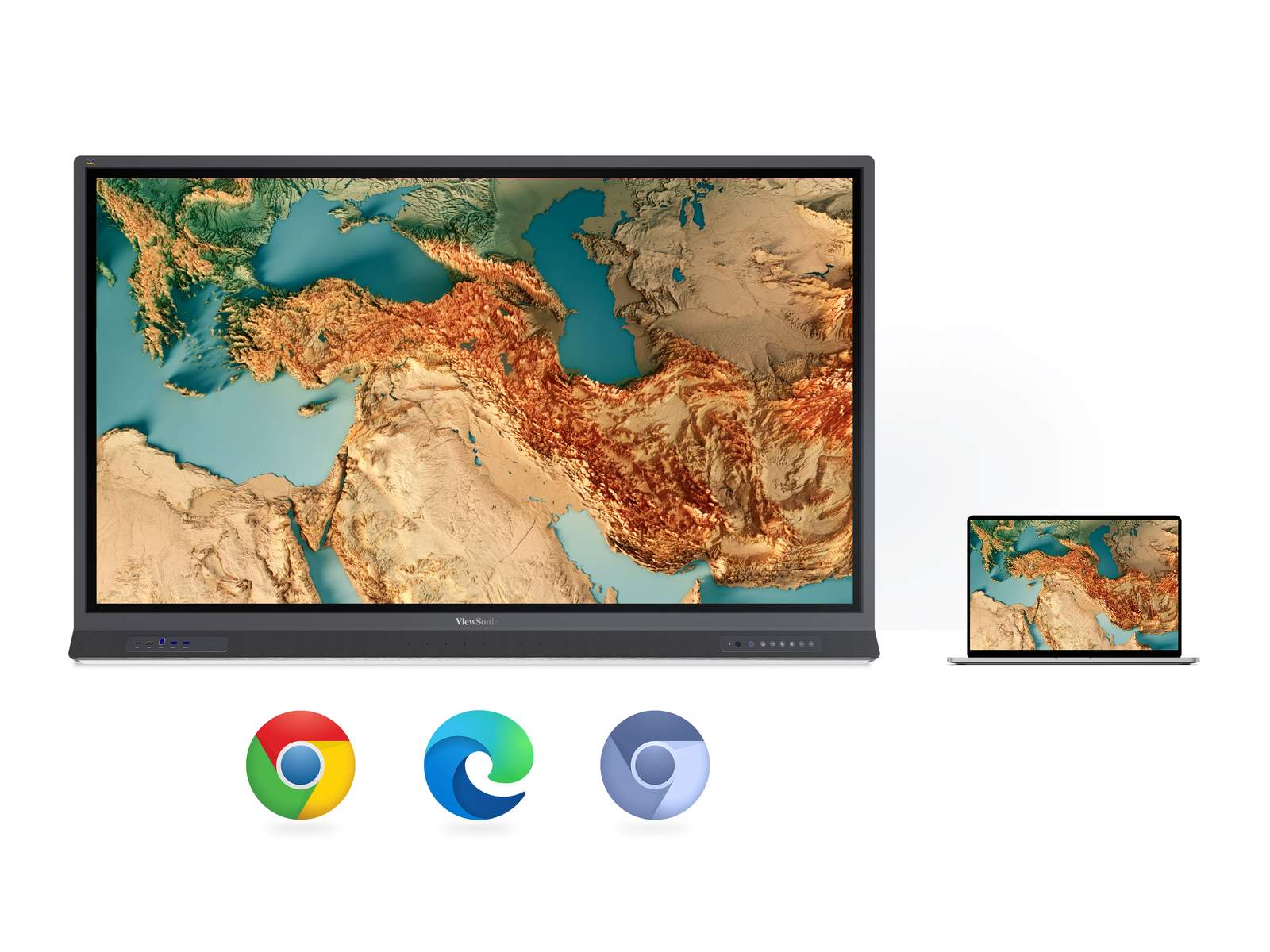

Easy Casting via myViewBoard Display
Ideal for quick presentations and guest users, myViewBoard Display allows users to cast directly to the ViewBoard 52 via their internet browser for instant screen-mirroring with no cable or download necessary.

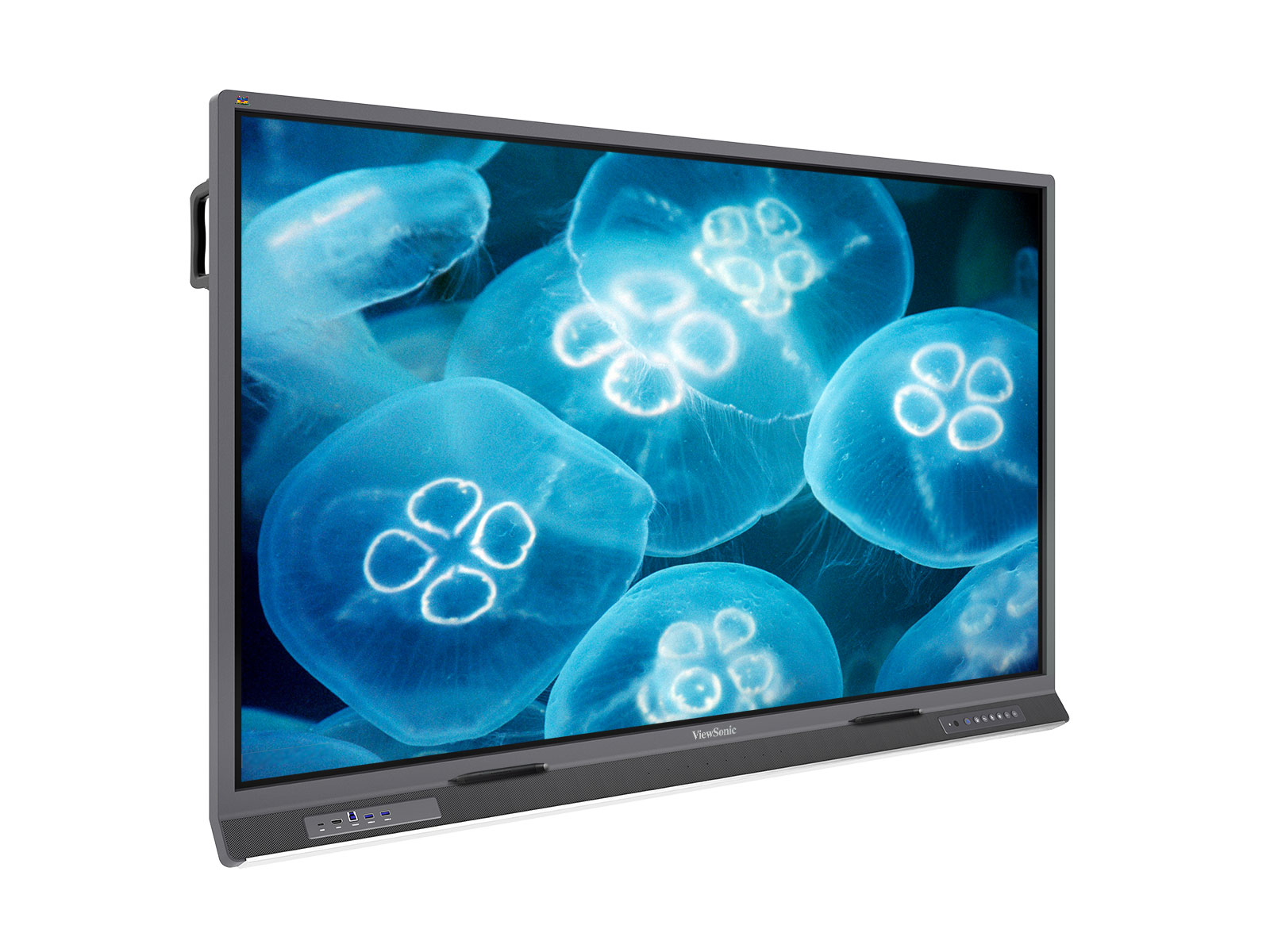

Industry-First User-Centric Design
The unique angular design puts the control buttons and I/O ports clearly in line of sight, giving teachers easier access than competing products and allowing them to seamlessly and creatively incorporate the display into classes without disrupting the lesson flow. *Image shown is for illustration purposes only. Actual product may vary.

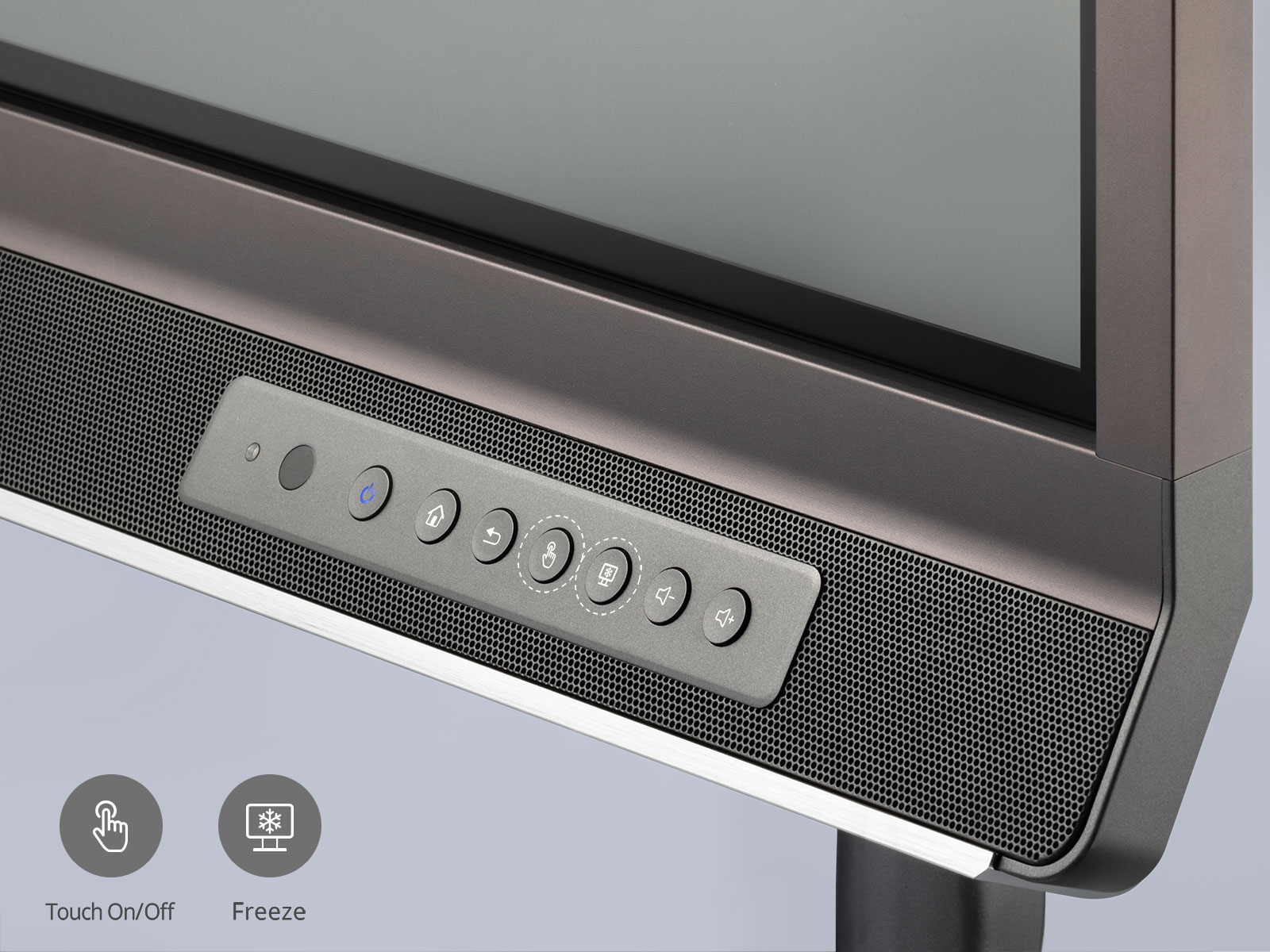

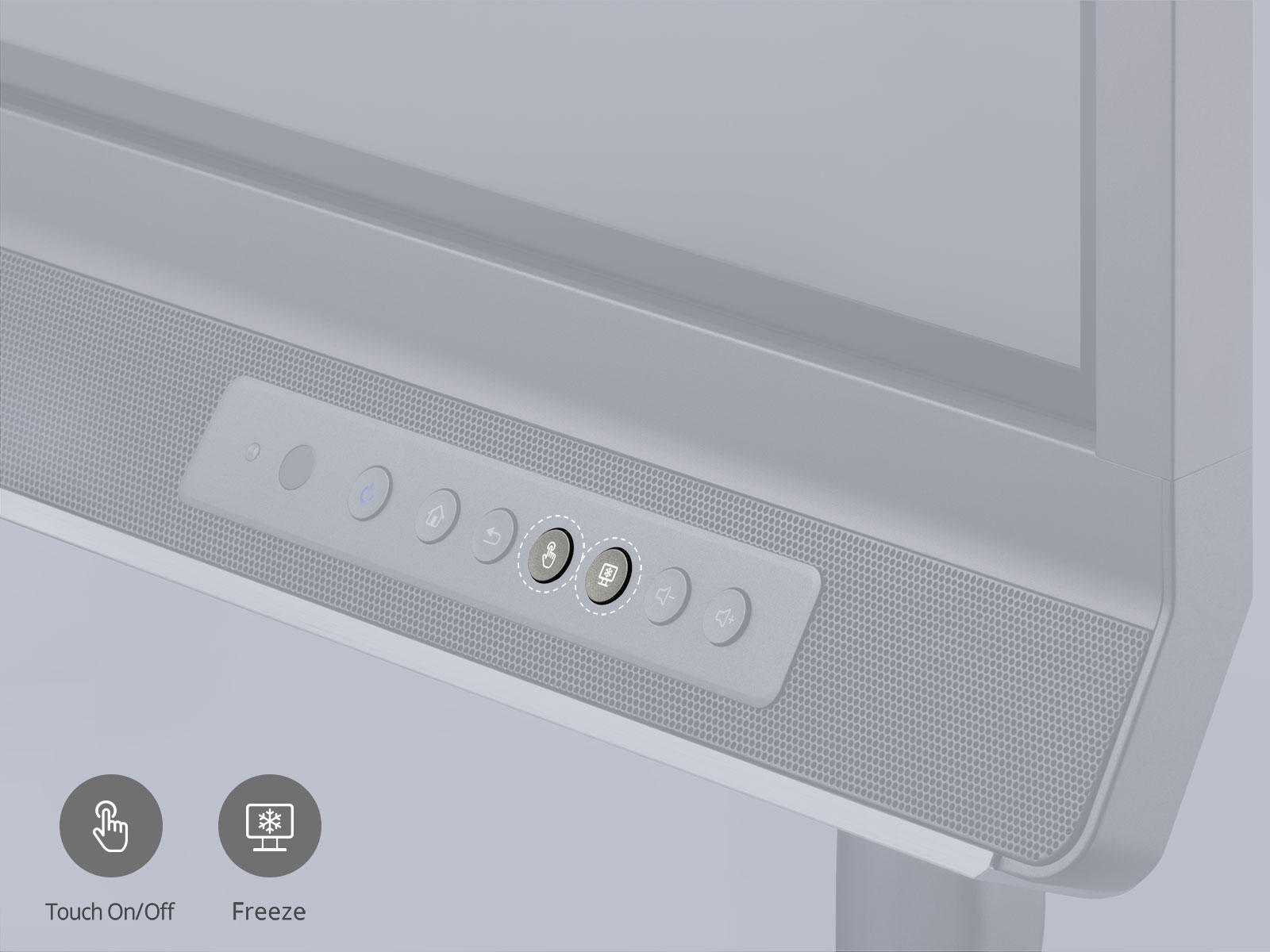

Easy Access Shortcut Keys
Designed for simplified control, the easily accessible shortcut keys allow teachers to instantly disable the touch function when not required and to freeze the display screen for independent use of their personal device during presentations.

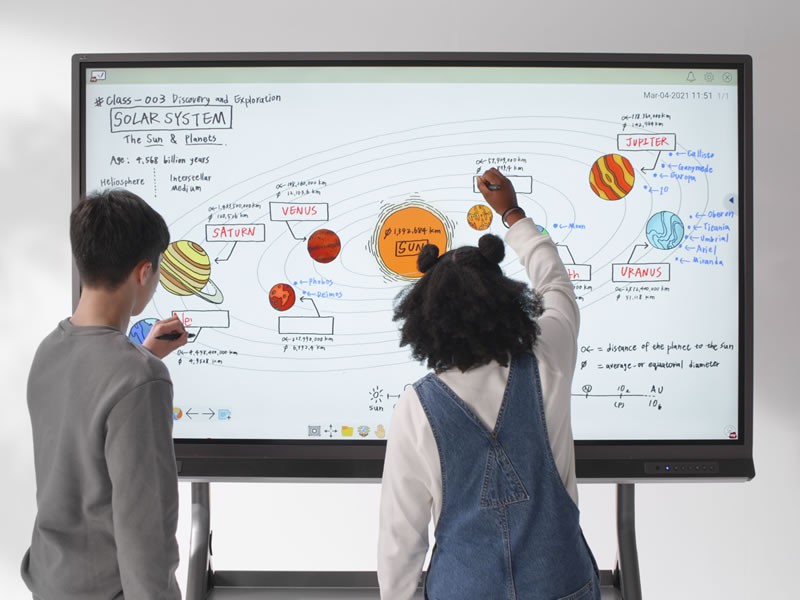

Best-in-Class Collaboration Tools
The 4K Ultra HD display comes equipped with Ultra Fine Touch and palm awareness technology to deliver a completely natural writing experience with dual-pen, 33-point touch capability to support in-class or online student collaboration.

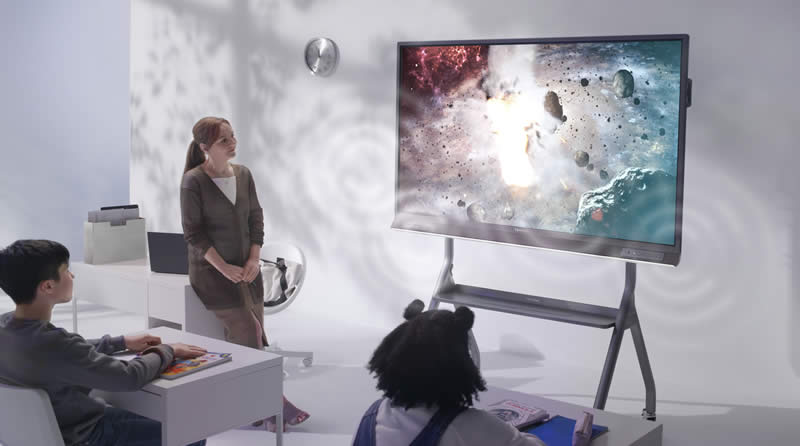

Industry-Leading Classroom Sound
Designed to fill the classroom with robust, attention-grabbing sound, the ViewBoard 52 Series features 2X15W speakers and a 15W subwoofer embedded within the front-facing soundbar to further amplify the impact of in-class music and videos for increased overall engagement.

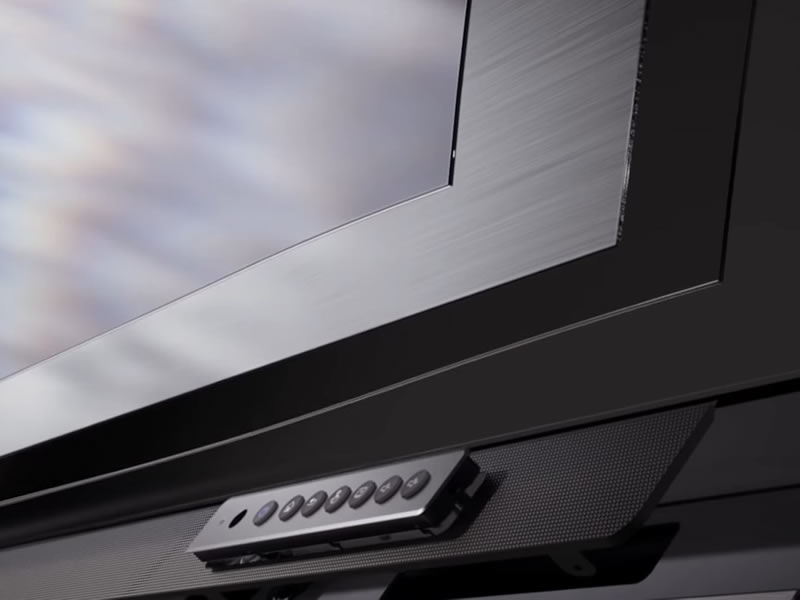

Advanced Screen Bonding Technology
By reducing the space between the glass and the panels to a single millimeter, advanced bonding technology brings even brighter, better, and clearer visuals to an already impressive display.
Advanced Eye-Care Technology
With True Flicker-Free technology, a blue light filter, and an anti-glare coating all built directly into the display hardware, the ViewBoard 52 Series offers an automatic, superior viewing experience that is both eye friendly and energy efficient.

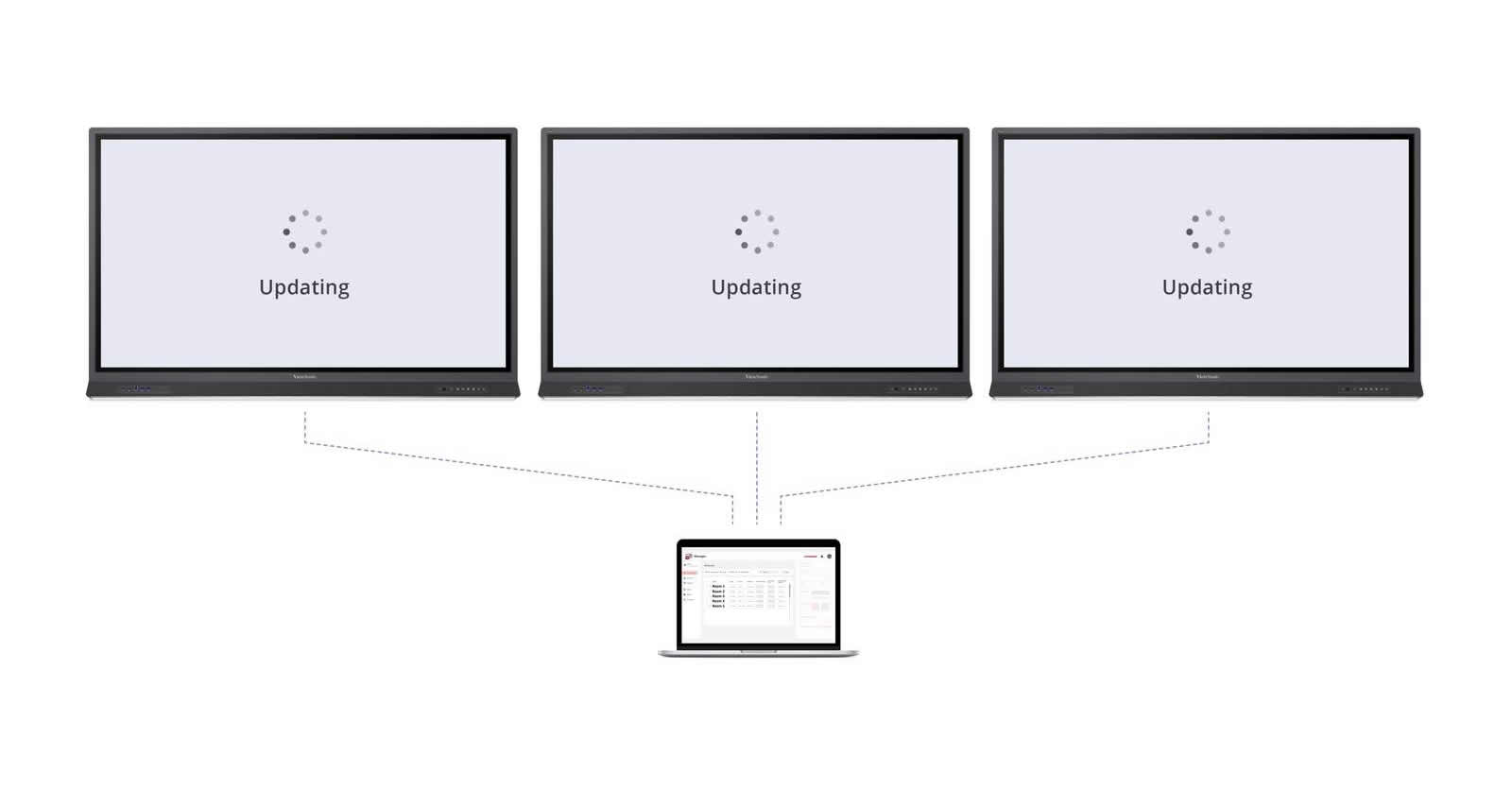

Remote Management System
The browser-based myViewBoard® Manager application allows IT managers and verified admin users to update, schedule, broadcast and manage multiple displays simultaneously from any location through a secure, user-friendly remote management system.
Device Agnostic and Software Compatible
Designed to use the software you know, the ViewBoard 52 Series operates on Android 11 and is compatible with Windows, Mac, Chrome and Linux with full touch input functionality for all connected devices.

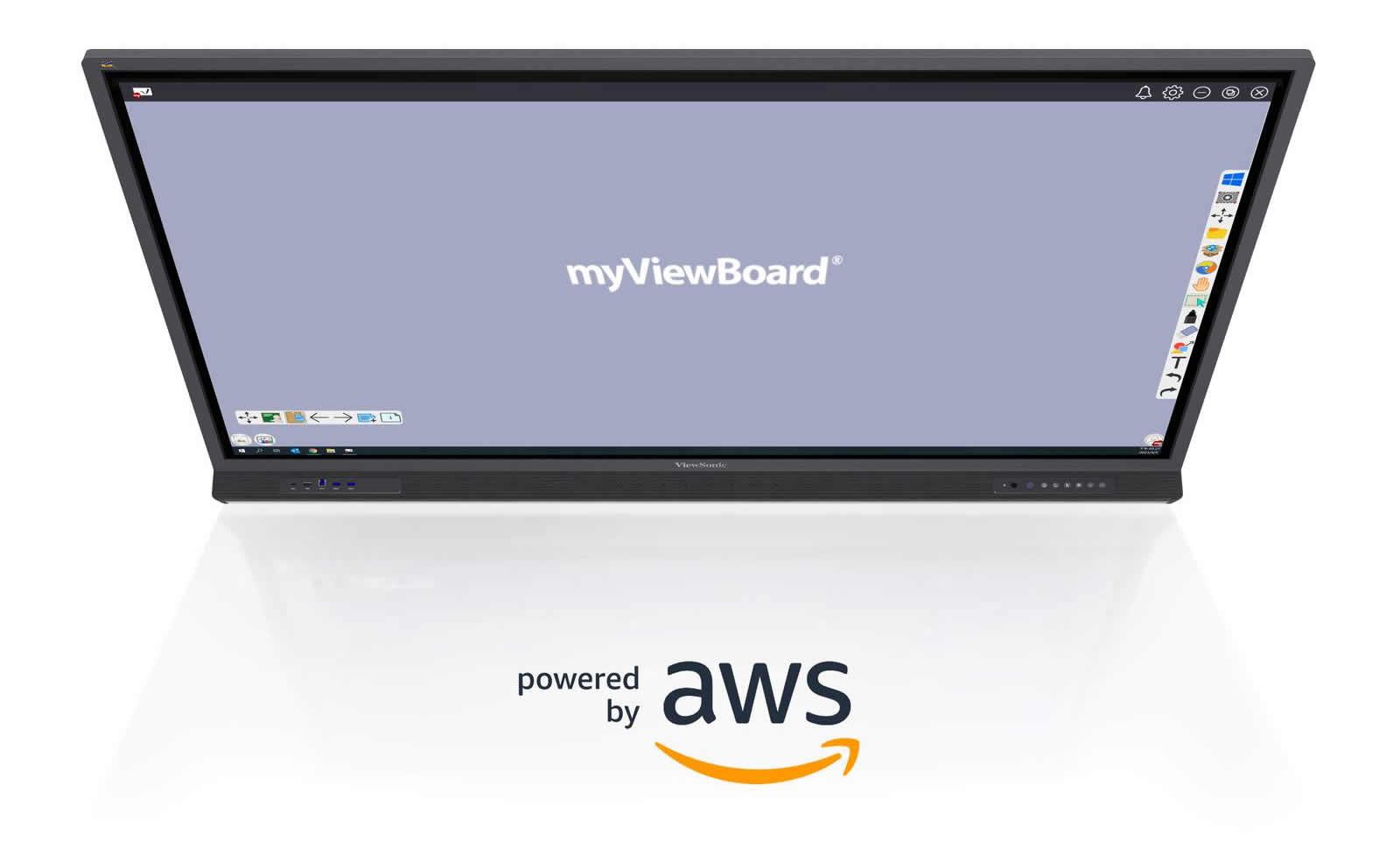

Enterprise-Grade Safety and Security
The built-in AWS-powered myViewBoard™ whiteboarding software provides comprehensive and trustworthy data protection through cloud-powered security and encryption to ensure the security and safety of private files and information.

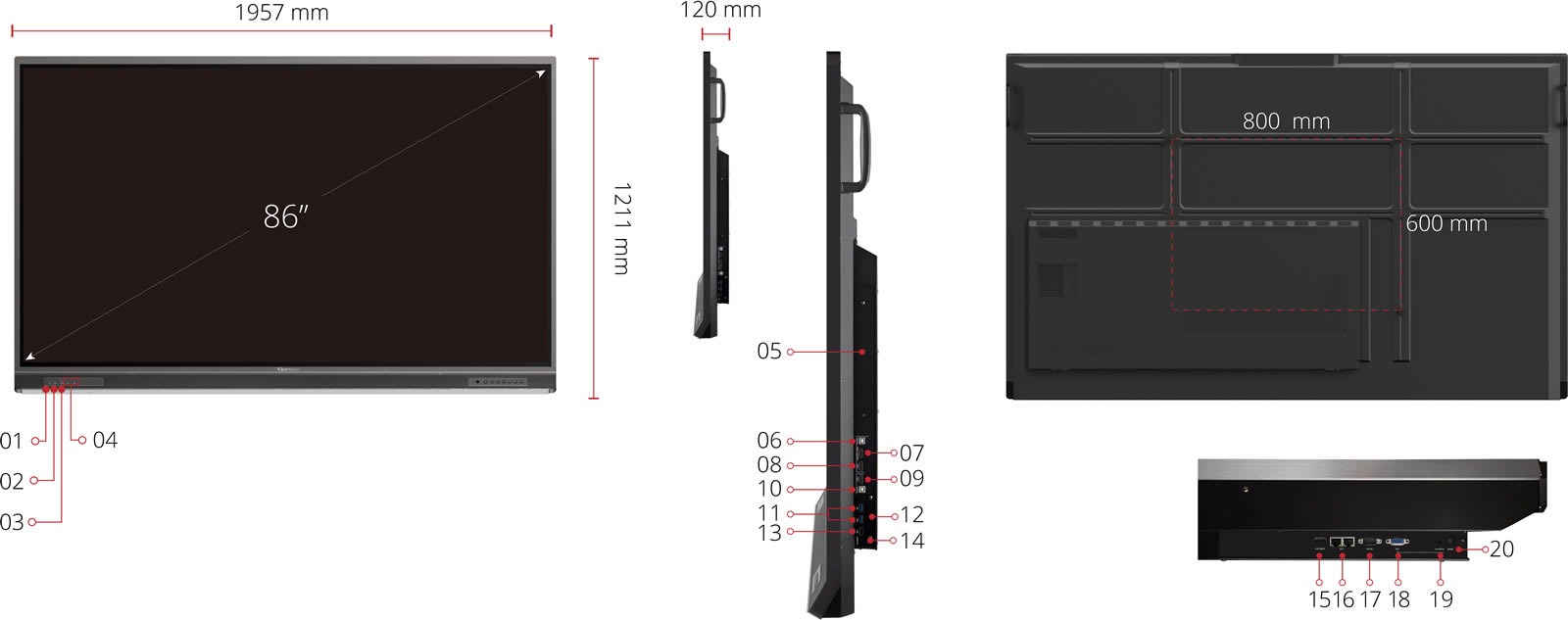

Dimensions & I/O Ports
- USB Type-C
- HDMI 1
- TOUCH 1
- USB 2.0
- OPS PC Slot
- TOUCH 2
- HDMI 2
- HDMI 3
- HDMI 4
- TOUCH 3
- USB 3.0
- Wi-Fi Slot
- USB
- AUDIO OUT
- HDMI OUT
- LAN
- RS-232
- VGA
- TOUCH 1
- SPDIF
Specification
- Display
Panel Size: 86″
Panel Type: TFT LCD Module with DLED Backlight, IPS
Display Area (mm): 1913 (H) x 1084 (V) (85.6”diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 400 nits (Typ.)
Contrast Ratio: 1100:1 Typ. , 2500:1 Max.(DCR enable)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000 Hours (Typ.)
Surface Treatment: Hardness: 9H. Anti-glare coating
Orientation: Landscape - Platform
Processor: ARM Cortex A73*4 (1.8GHz)
RAM: 8GB DDR4
Storage: 64GB - Touch
Type/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch
- INPUT
HDMI: 2.0 x4 ( 3840×2160 @60Hz ,HDCP2.2, HDMI 2 with CEC/ARC)
RGB / VGA: x1(1920×1080@60Hz)
Audio: x1(PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: WiFi module slot x 1 - OUTPUT
HDMI: x1 (720p@60Hz, 1080p@60Hz, 4K@60Hz RGB)
Audio: 1 (Earphone out)
SPDIF: 1(optical) - LAN
RJ45: 1 in 1 out
(10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) - USB
Type A: USB2.0 x 3 (Front x2, Side x1)
USB3.0 x 2(Side x 2)
Type B: x3(Front x1, Rear x 2)), for touch
Type C: x1 (USB2.0, DP1.2, Ethernet 100M, PD65W) - SPEAKERS
15W x 2 front soundbar + 15W x 1 subwoofer
- MICROPHONE
8-array microphone
- Top Camera Plate
YES
- Embedded OS
Android 11
- Bundle Software
Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: vCast & myViewBoard Display
Device Management: myViewBoard Manager - Special Features
All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes - Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 286.4 (typ.) / Off: <0.5W - ERGONOMICS
Wall Mount (VESA® ): 800 x 600
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)
Physical (inch / mm): 1953 x 1211 x 120 mm / 76.89 x 47.68 x 4.72 in
Packaging (inch / mm): 2112 x 1332 x 280 mm / 83.15 x 52.44 x 11.02 in - WEIGHT
Net (lb / kg): 151.35lb/68.65kg
Gross (lb / kg): 179.46lb/81.40kg - PACKAGE CONTENTS
1. 3m power cord by ship area
2. Remote control with AAA battery
(new VS remote control)
3. 3m touch USB cable
4. Touch pen x 2 (a set)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable 3m
11. Typc-C cable 1.8 (Data & power charged)
12. Eraser - Compatible Slot-in PC
VPC2-O series / VPC2-O-1B series / VPC12-WPO-15/16 / VPCF5 series / VPC33 series / VPC35 series / VPC37 series
| Weight | 81.4 kg |
|---|---|
| Dimensions | 211.2 × 133.2 × 28 cm |
| Included Warranty | 1 Year Free Warranty |
| Standard Delivery | One Day Delivery |
Product Reviews
You must be logged in to post a review.
Product Additional information
| Weight | 81.4 kg |
|---|---|
| Dimensions | 211.2 × 133.2 × 28 cm |
| Included Warranty | 1 Year Free Warranty |
| Standard Delivery | One Day Delivery |
Related products

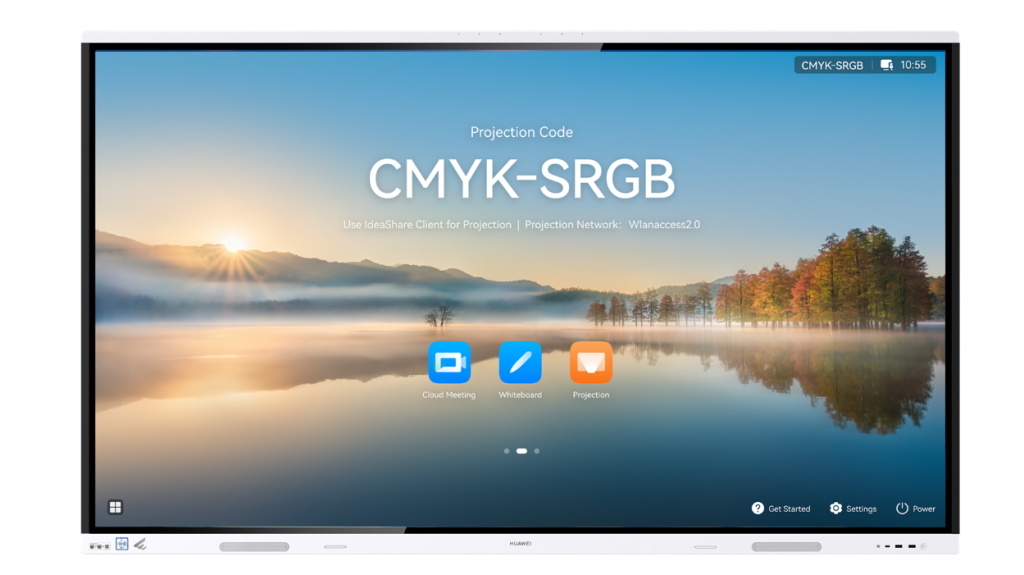

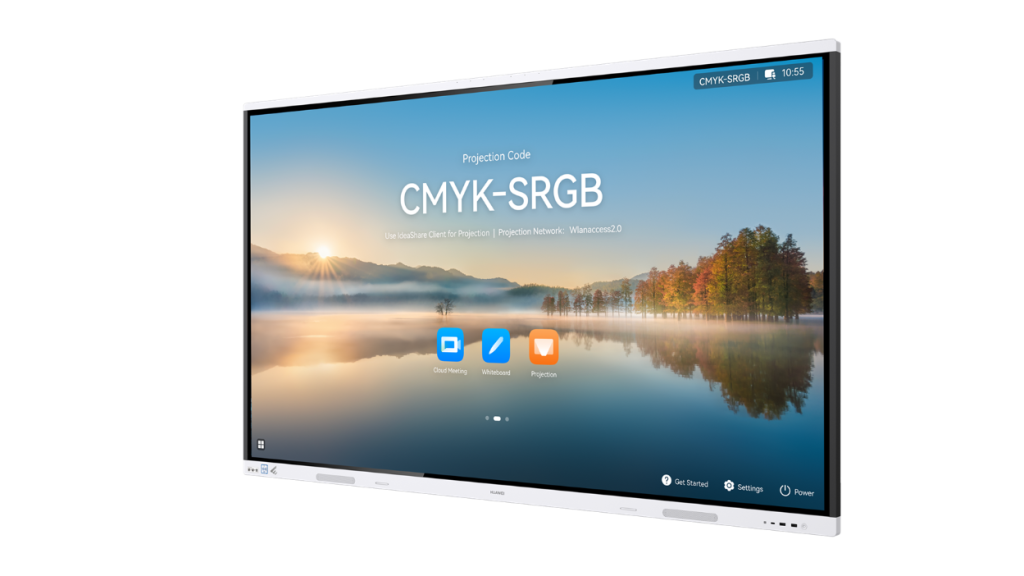

HUAWEI IdeaHub Board 3 Pro 86″ Interactive Display, 4K UHD Resolution Touch Display, 16ms Response Time, Wi-Fi 6, Jade White
In stock
HUAWEI IdeaHub B3 Interactive Display, 86″ 4K UHD Touch Display, Professional 4K Video Camera, 16ms Response Time, Wi-Fi 6, Jade White
In stock

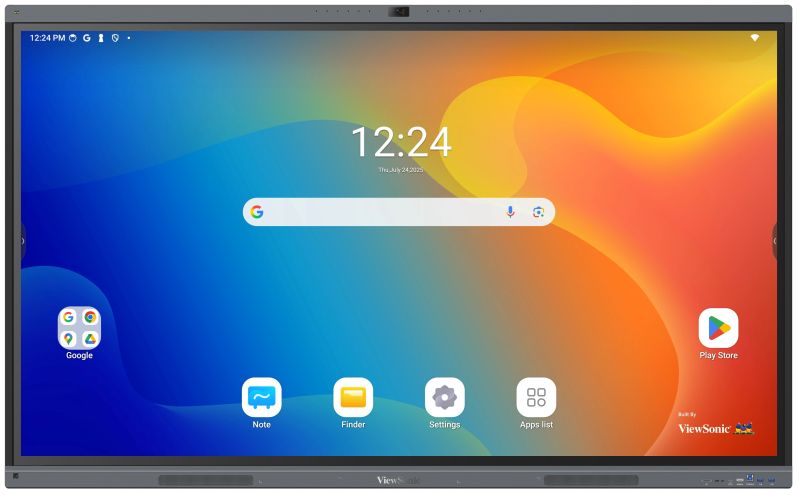

Viewsonic IN8621C-1C ViewBoard, 86” 4K Interactive Display, Built-in 50-Megapixel Camera, Android 14, Black
In stock

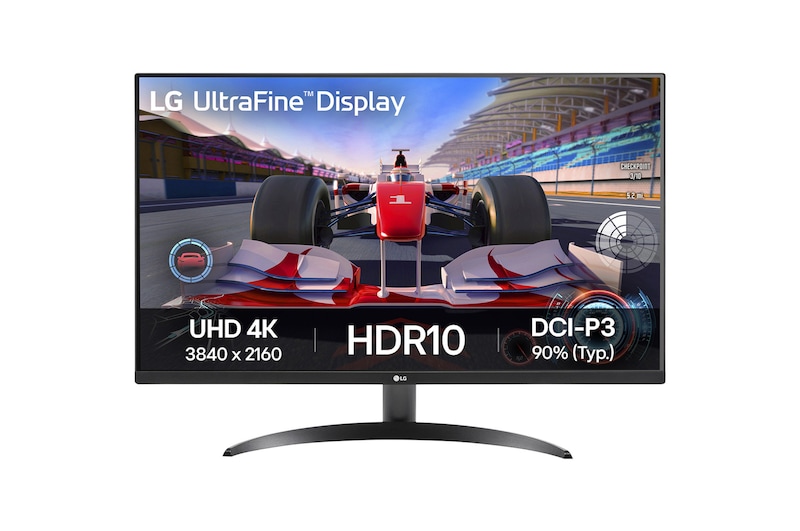

LG 32″ 32UR500K UltraFine 4K Monitor, 60 Hz Refresh Rate, 4ms Response Time, HDR10, Black
