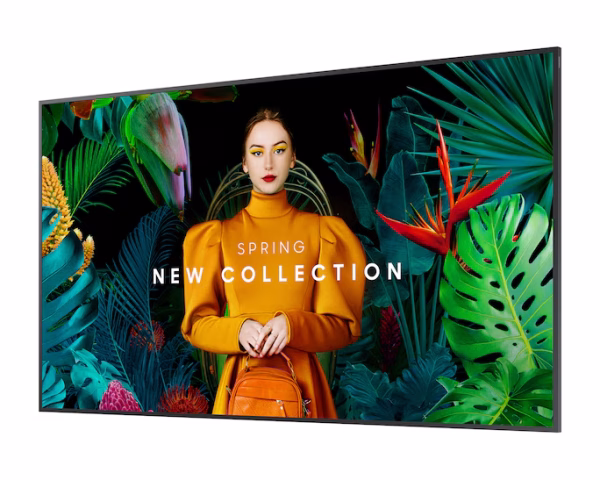

Samsung Crystal Signage 55″ QMC , 4K UHD VA Display, 75Hz Refresh Rate, 8ms Response Time, Black

Slim design. Stunning performance.

Introducing QMC, the slimmest display in Samsung UHD Signage. Designed to bring elegance to business environments while maximizing space, QMC combines a refined form factor with enhanced internal solutions and an intuitive home screen UX. Its efficiency and design innovation help businesses across multiple verticals operate smarter and grow faster.

Maximum impact in minimum space

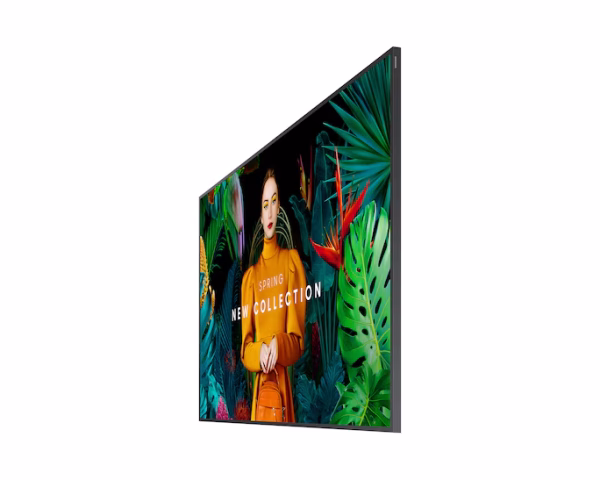

Ultra Slim Depth

With an ultra-slim 28.5 mm depth, QMC is the thinnest display in Samsung’s UHD series. Compatible with a Slim Fit Wall Mount*, it can be installed neatly and effortlessly in virtually any location. Its sleek, space-optimizing design blends seamlessly into modern business environments.

Clean visuals in landscape or portrait mode

Even Bezel

QMC features even bezels on all four sides, maintaining consistent thickness and dimensions for a balanced, professional look. This uniform bezel design ensures clean, distortion-free visuals when the display is installed in either landscape or portrait orientation.

Secure and even mounting

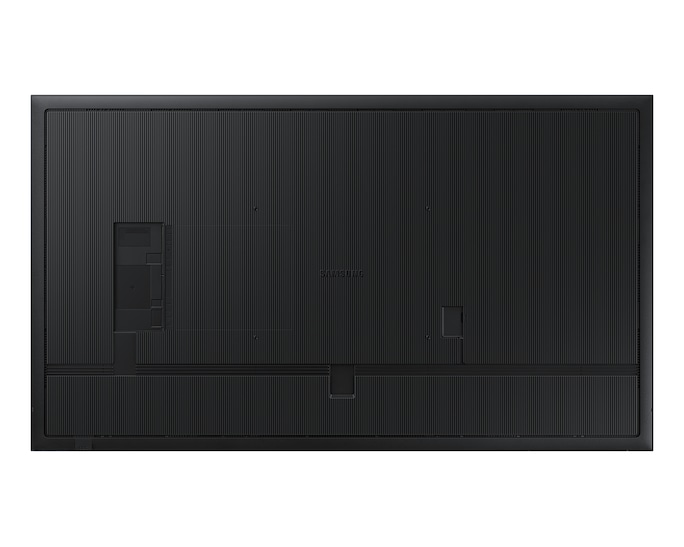

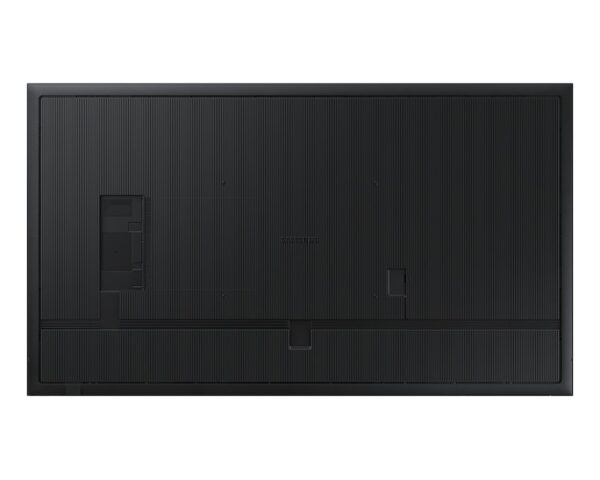

Centered VESA Holes

The centrally positioned VESA mounting holes evenly distribute the display’s weight for secure, stable installation. By shifting the VESA holes to the center, the display can be rotated into portrait mode without unintentional tilting.

Lifelike color, born in a pure state with fine crystal

Dynamic Crystal Color

Every image becomes more immersive with one billion shades of color. Dynamic Crystal Color delivers true-to-life variations, allowing viewers to experience every subtle detail with exceptional clarity and realism.

View lifelike shades of color in powerful 4K

Quantum Processor Lite 4K

Samsung’s advanced video processing technology enhances every piece of content for exceptional clarity and consistency. Powered by Quantum Processor Lite 4K, intelligent UHD upscaling elevates lower-resolution content to near-UHD quality, delivering a sharp, professional viewing experience.

Ensure critical information is always visible

Non-glare

QMC displays feature reliable non-glare panels that maintain clear visibility from all angles and in various lighting conditions. This anti-reflection design allows businesses to deliver accurate, readable information in critical locations such as airports and train stations.

Simplified calibration between screens with a mobile app

Smart Calibration

Smart Calibration ensures complete brand consistency across every display, in every location. Using the Samsung mobile app, each screen can be calibrated accurately to display brand logos and visual content in the exact colors required.

Enhance professional environments with expert tools

Professional Modes

Built-in Professional Modes unlock advanced capabilities for specific industries. Director Mode minimizes post-processing to align content with the creator’s original intent, while DICOM Simulation Mode allows medical teams to accurately simulate medical images such as X-rays, meeting full DICOM grayscale standards.

Everyday Sustainability

ENERGY STAR® / EPEAT® / TÜV Rheinland Carbon Footprint*

Samsung is committed to reducing environmental impact across its smart signage solutions while encouraging more sustainable choices. As part of these efforts, the QMC series has earned multiple certifications for environmentally preferable products from globally recognized institutions in Germany and the United States.

Specifications

Display

• Diagonal Size: 55″

• Panel Type: VA

• Resolution: 3,840 × 2,160 (4K UHD)

• Pixel Pitch: 0.372 × 0.372 mm

• Brightness (Typical): 500 nits

• Contrast Ratio: 4,000:1

• Viewing Angle (H/V): 178° / 178°

• Response Time: 8 ms

• Color Gamut: 72% NTSC

• Glass Haze: 25%

• H-Scanning Frequency: 30–81 kHz

• V-Scanning Frequency: 48–75 Hz

• Maximum Pixel Frequency: 594 MHz

• Dynamic Contrast Ratio: Mega

• Operation Time Support: 24/7

Connectivity

• HDMI In: 3 (HDMI 2.0)

• DP In: 1 (DP 1.2)

• HDCP Version: 2.2

• USB: 2 ports

• IR In: Yes

• Audio In: No

• Audio Out: Stereo Mini Jack

• RS232 In / Out: Yes / Yes

• RJ45 (LAN): Yes

• Wi-Fi: Yes

• Bluetooth: Yes

Power

• Power Supply: AC 100–240V, 50/60Hz

• Power Consumption (On): 187 W

• Power Consumption (Sleep): 0.5 W

Dimensions

• Set (W × H × D): 1456.8 × 831.9 × 28.5 mm

• Package (W × H × D): 1616 × 945 × 164 mm

Weight

• Set Weight: 21.5 kg

• Package Weight: 28.0 kg

Operation Conditions

• Temperature: 0°C to 40°C

• Humidity: 10–80% (non-condensing)

Mechanical Specification

• VESA Mount: 400 × 300 mm

• Bezel Width: 11.5 mm (even)

• Frame Material: Non-glossy

Optional Accessories

• Wall Mount: WMN-B50SC

• Stand: STN-L5585C

SoC / Internal

• OS Version: Tizen 7.0

• Flash Memory: 16 GB

Eco

• Energy Efficiency Class: A

Certification & Compliance

• EMC: Class B

• Safety: 60950-1, 62368-1
