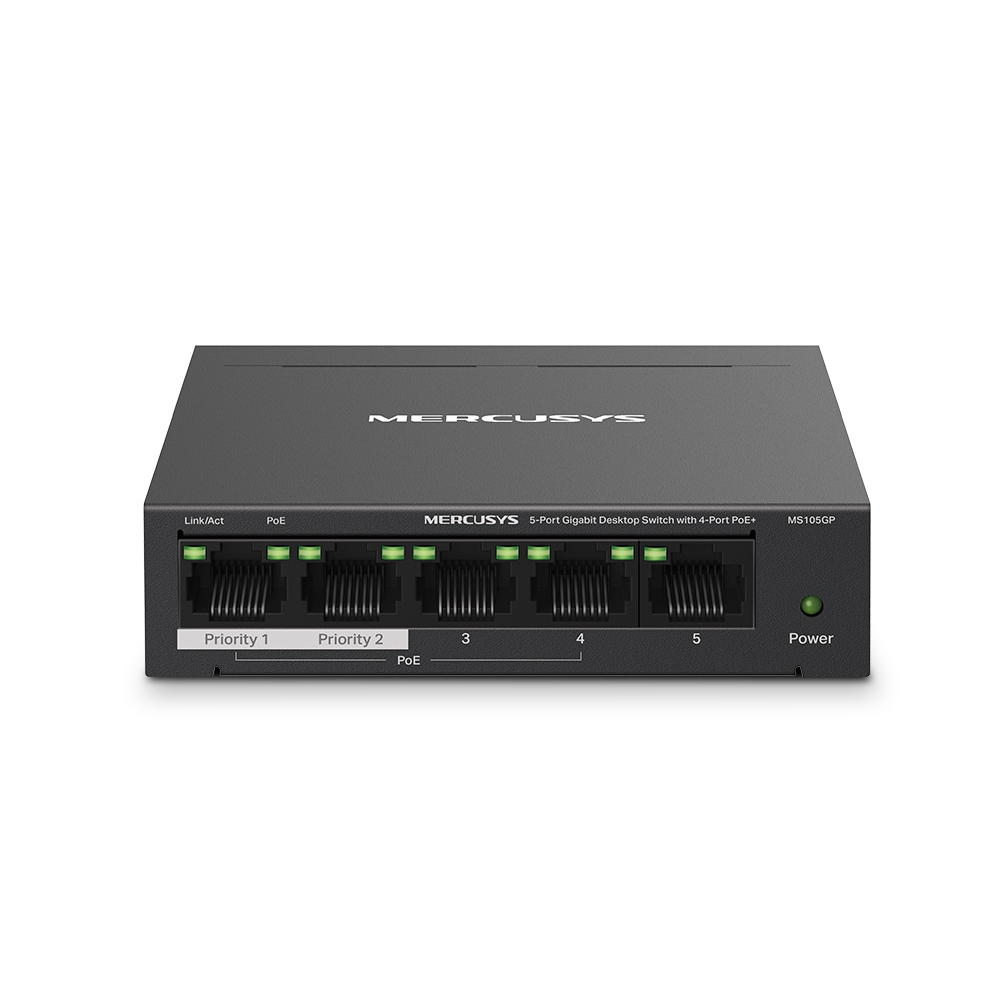

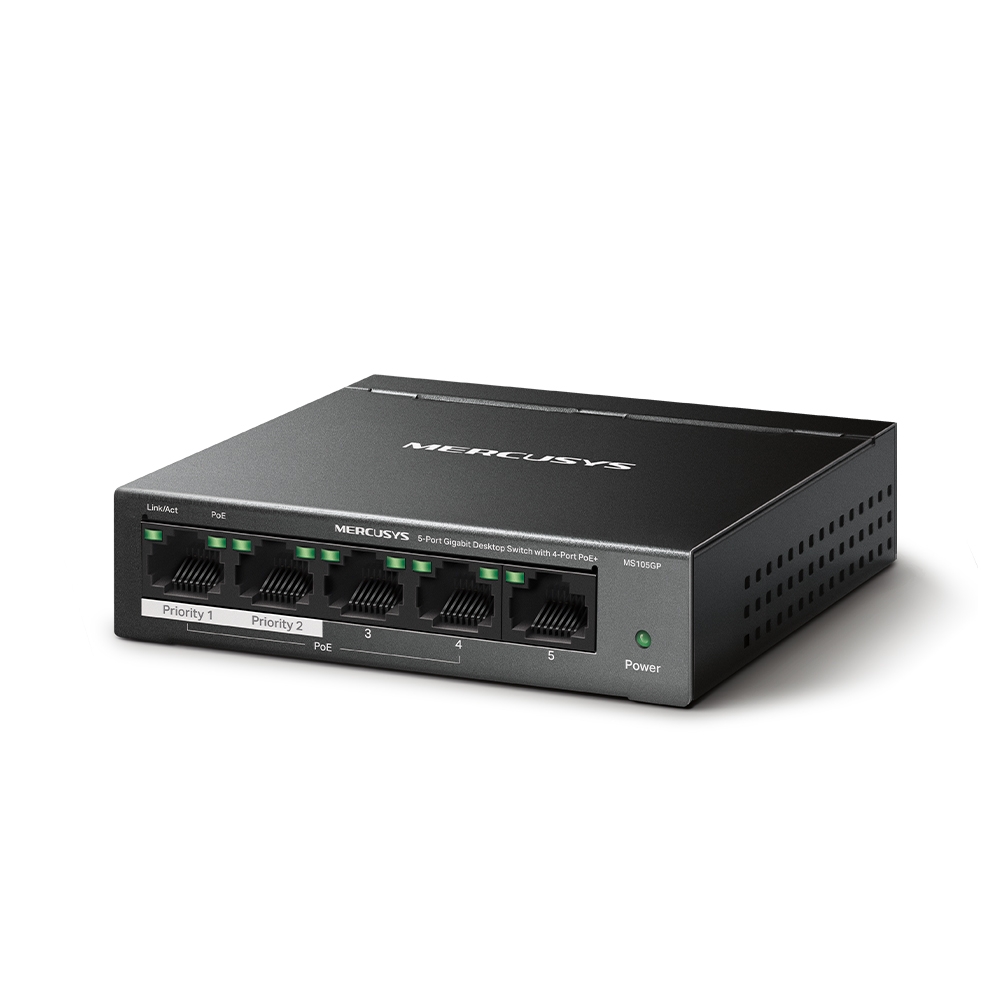

    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 2
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 3
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 4
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 5
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 6
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 7
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 8
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 9
    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black - Image 10

    Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Black

    MERCUSYS

    Quick Overview

    • Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
    • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
    • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
    • Isolation Mode: One click to divide traffic for specific ports for stability and security
    • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
    • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
    • Durable Metal Casing: Allows for efficient heat dissipation and long network life
    • Plug and Play: Simple to use and saves time and effort
    SKU: MS105GP Categories: ,

    Original price was: AED 199.00.Current price is: AED 125.00.

    Compare
    Add to wishlist

    Warranty

    Included Warranty1 Year Free Warranty

    Delivery

    Standard DeliveryOne Day Delivery
    2 Items sold in last 24 hours
    7 People watching this product now!

    5-Port GigabitDesktop Switchwith 4-Port PoE+

    MS105GP

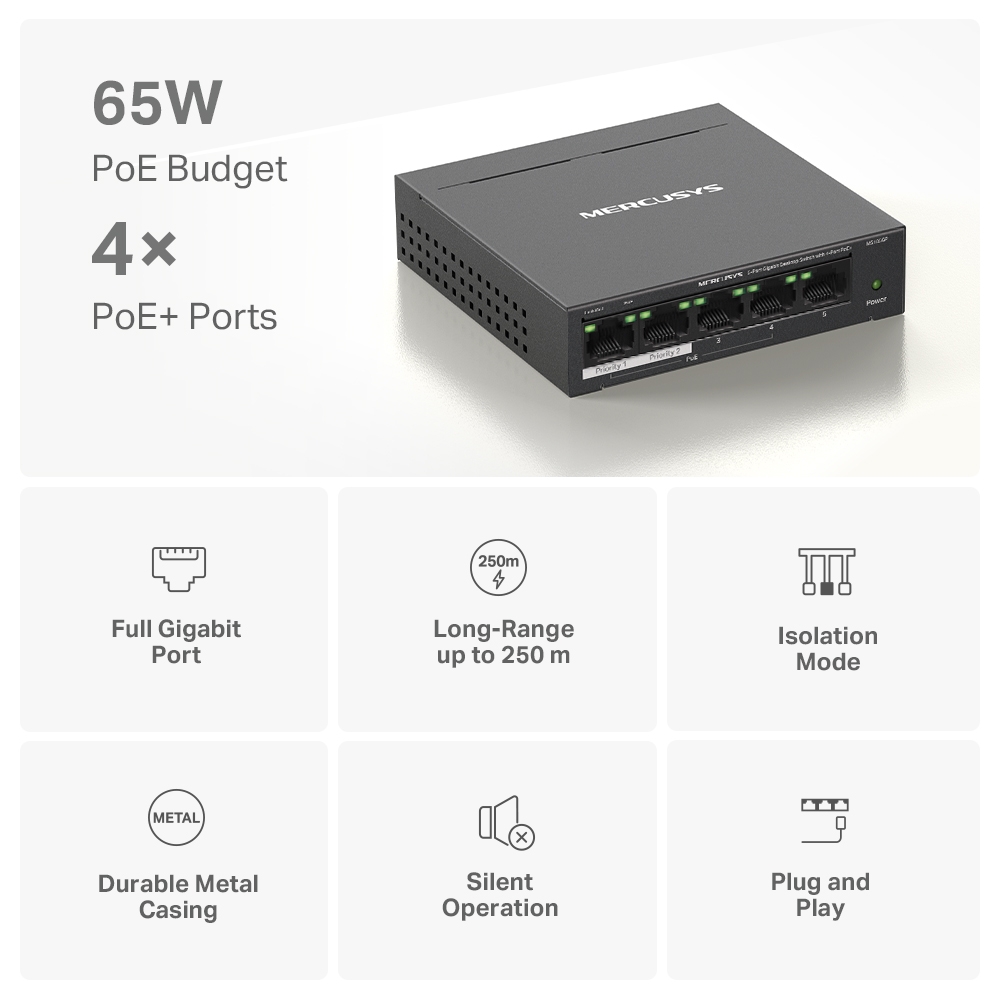

    Long-Range up to 250 m | Silent Operation |65W PoE Budget

    65W
    PoE Budget
    4×
    PoE+ Ports
    Full GigabitPort
    Long-Rangeup to 250 m
    IsolationMode
    Durable MetalCasing
    SilentOperation
    Plug andPlay

    4 PoE+ Ports (65 W Budget) for Network Deployment

    All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

    30W
    Max onEach Port
    65W
    Total PowerBudget
    Router
    Data Only
    IP Camera
    IP Phone
    Access Point

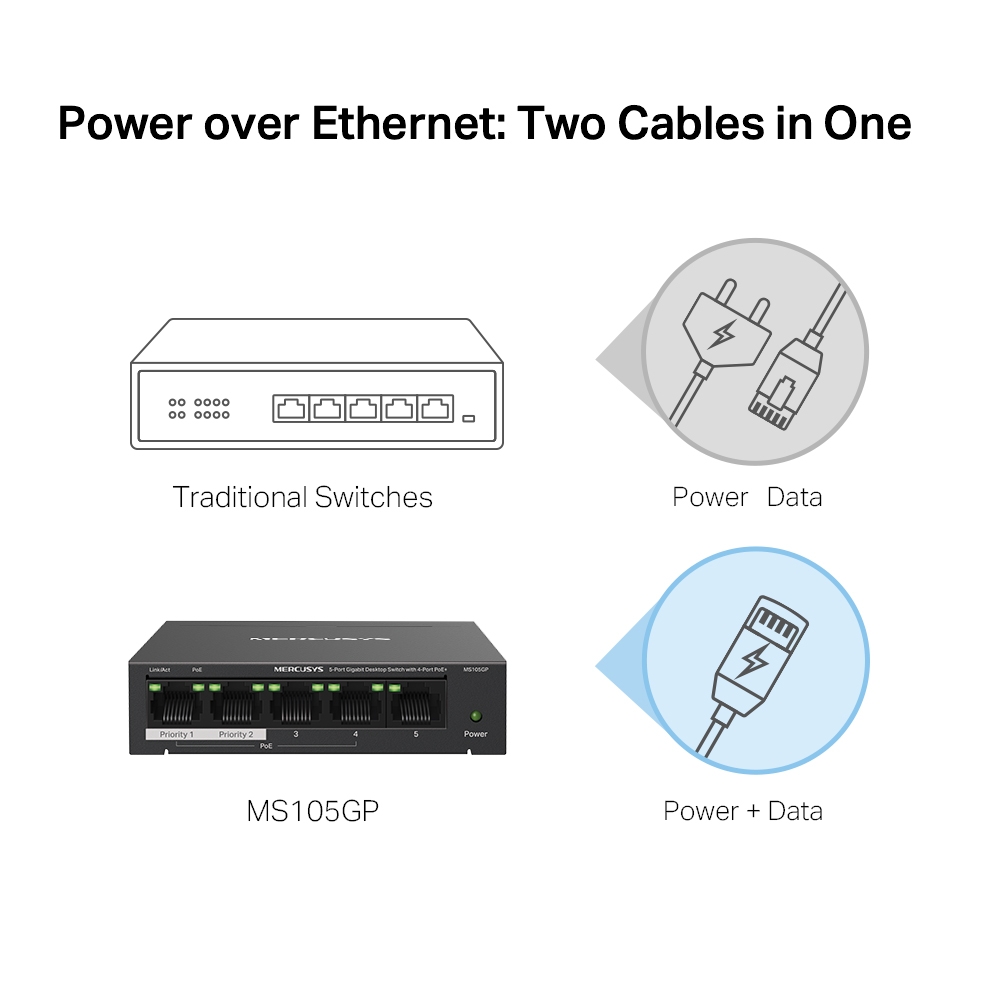

    Power over Ethernet: Two Cables in One

      • Traditional Switches
      • Power Data
      • MS105GP
      • Power + Data

    • No Fuss

      No need for electricians; simplify installation and deployment.

    • Cost-Efficiency

      Getting rid of extra cables and power adapters will save money on infrastructure.

    • Flexibility

      Deployment in complex situations is made possible by more placement possibilities.

    • Power Management

      Improves power usage while intelligently protecting your gadgets from power surges.

    • IEEE 802.3af/at

      PoE ports compliant with the 802.3af/at Powered Devices.

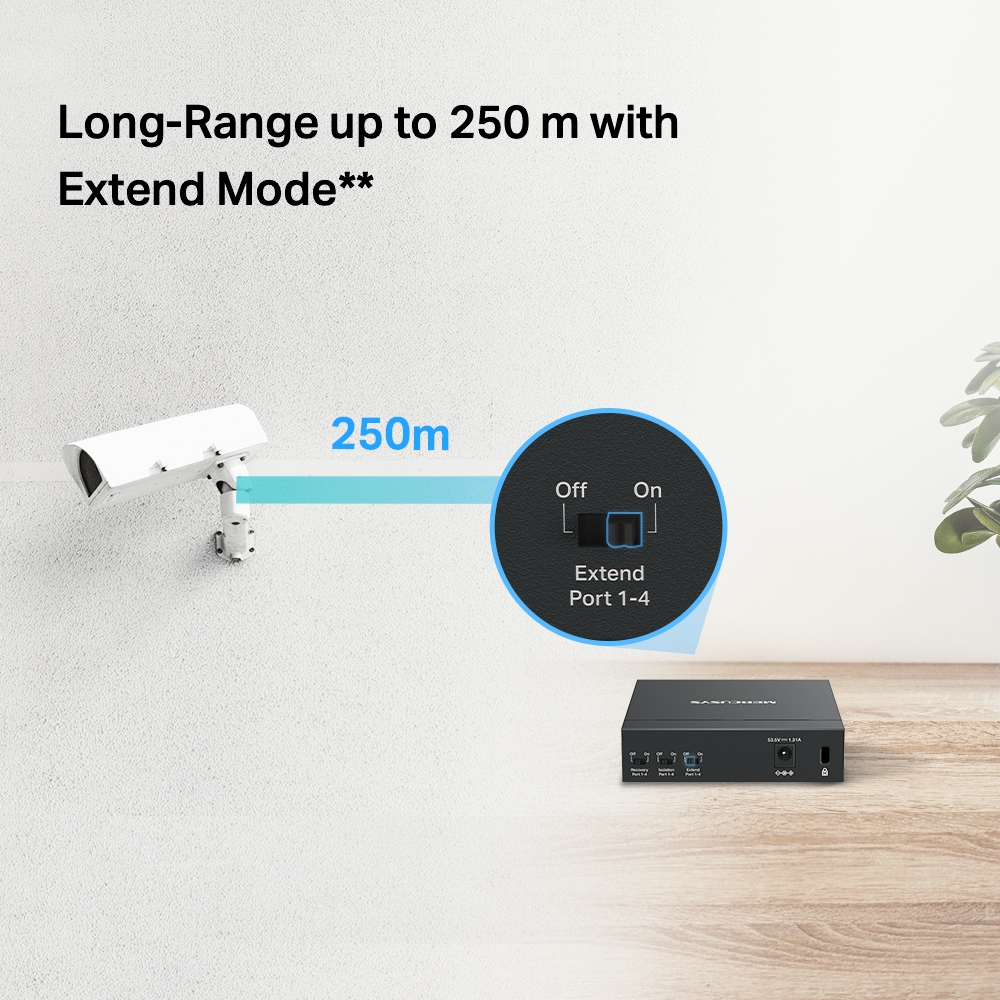

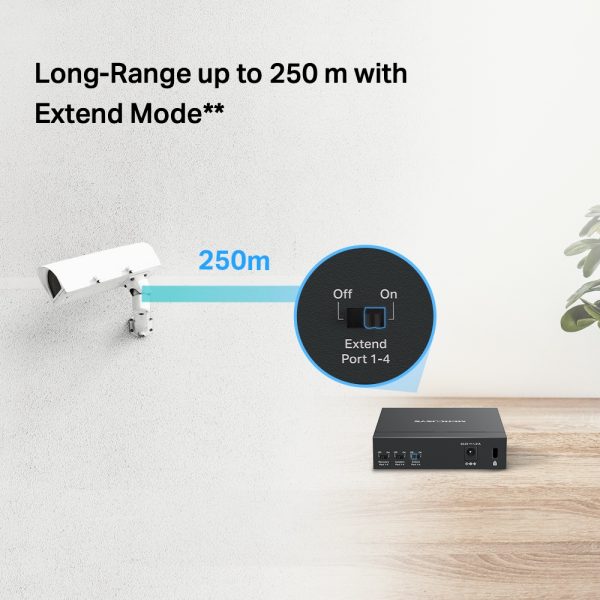

    Long-Range up to 250 m with Extend Mode**

    Extend Mode** increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+.Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

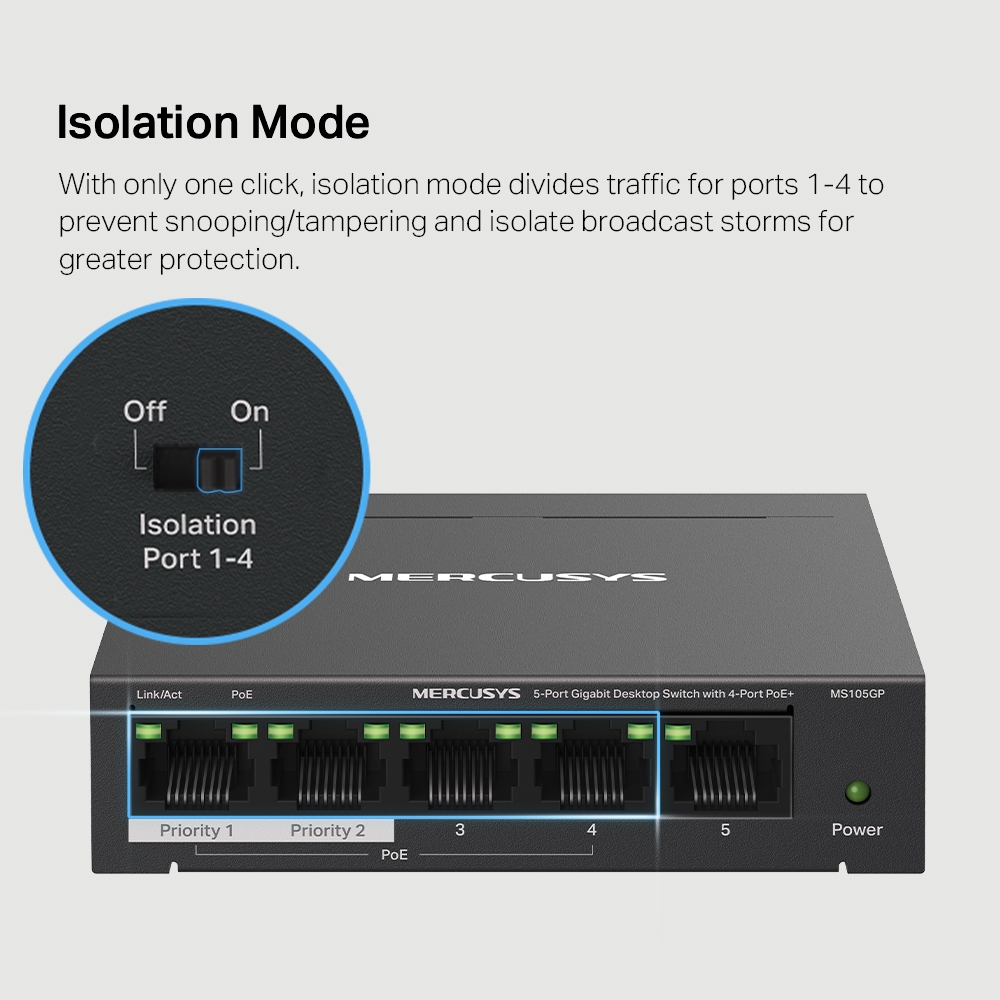

    • Traffic Separation

      With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.

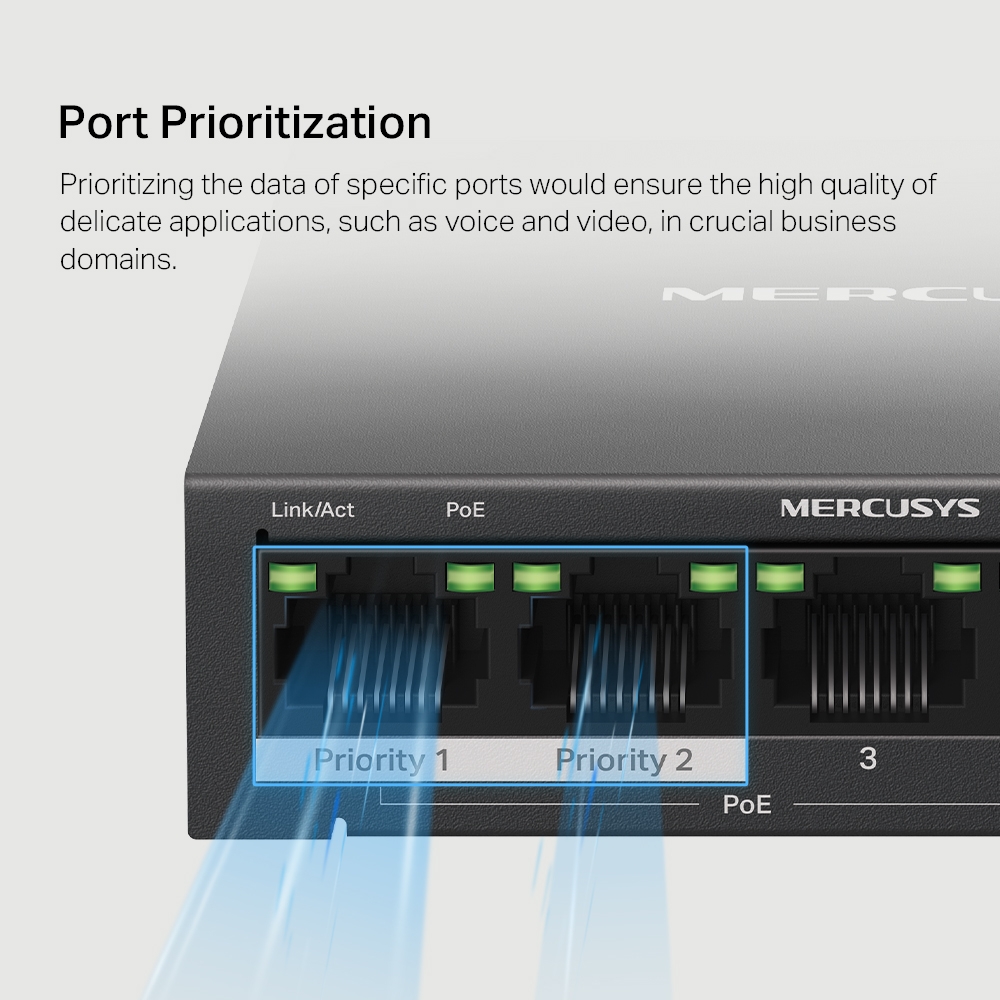

    • Port Prioritization

      Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

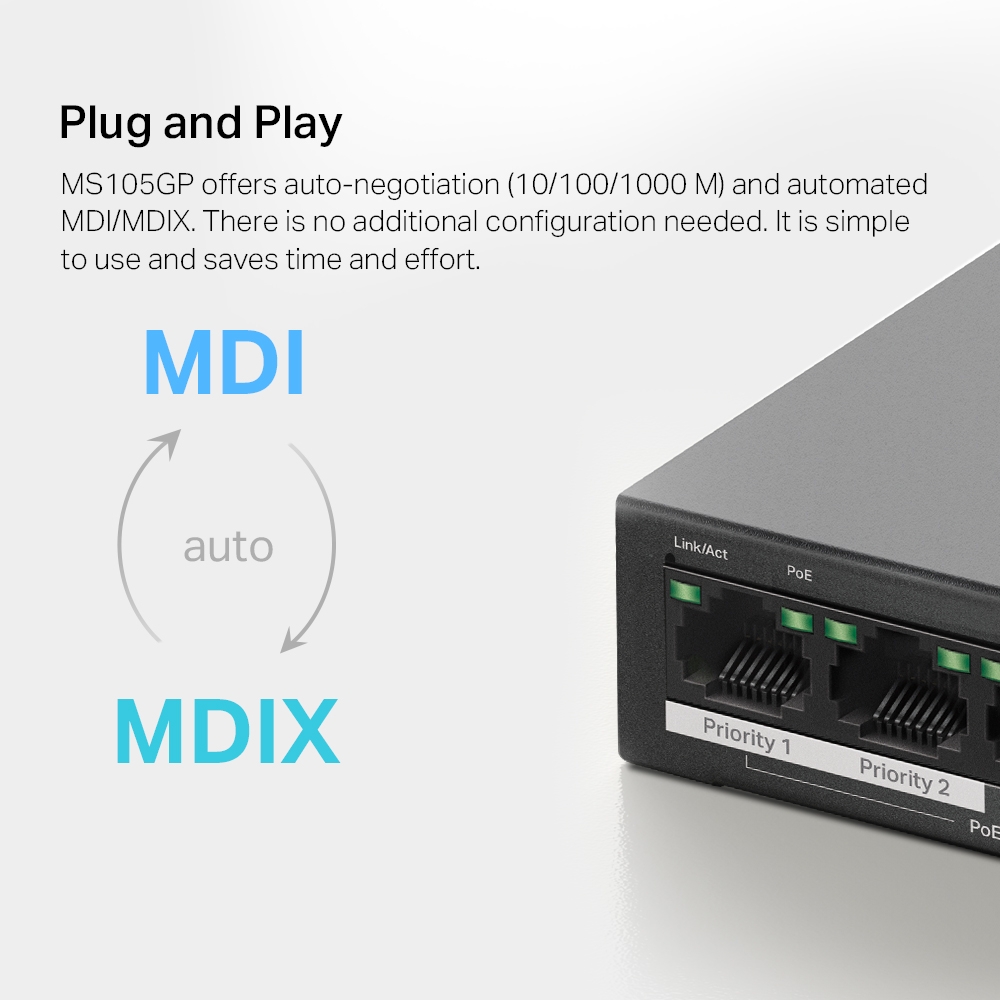

    • Plug and Play

      MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

    • IP Camera

      PoE Auto Recovery

      PoE Auto Recovery

      The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

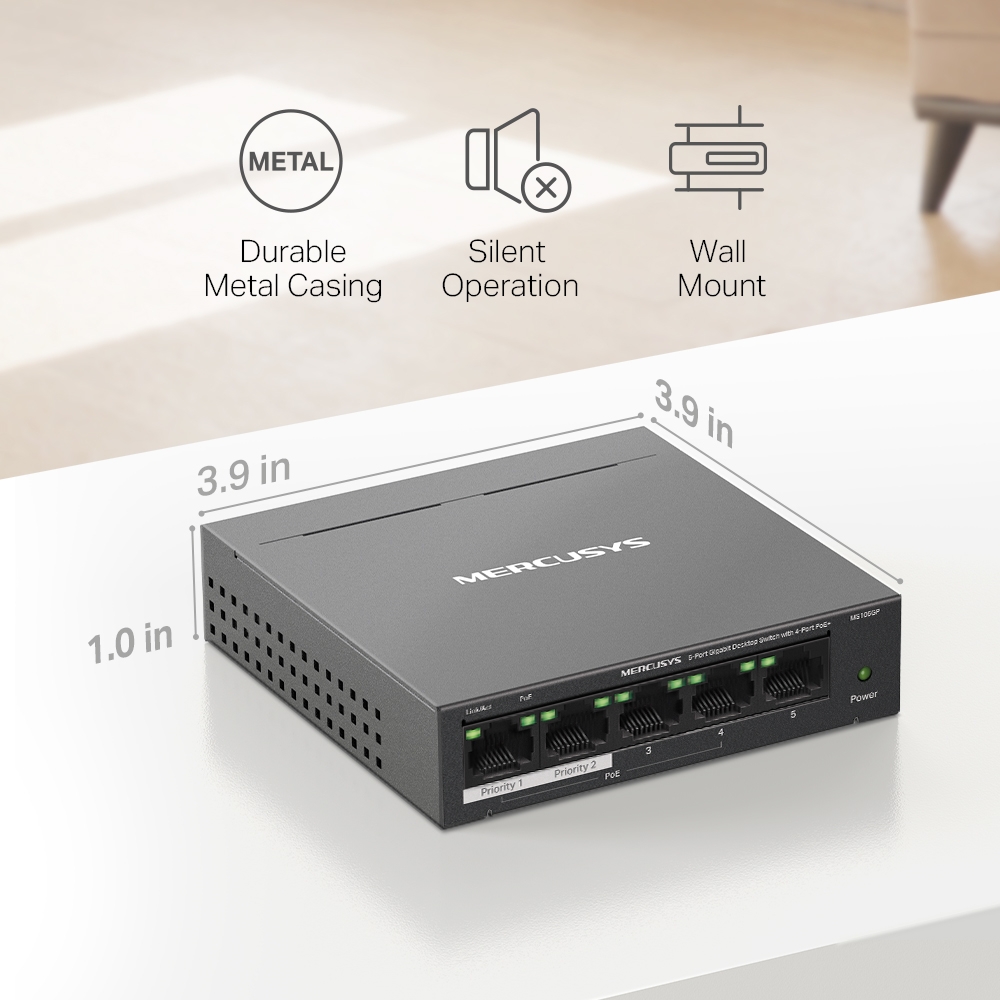

    Durable and Silent

    MS105GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

    Specification

    Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
    Dimensions 99.8*98*25mm
    PoE Ports RJ45

    Standard: Compliant with 802.3 af/at Powered DevicesPoE Ports: Port 1- Port 4PoE Power Budget: 65 W
    Interfaces 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

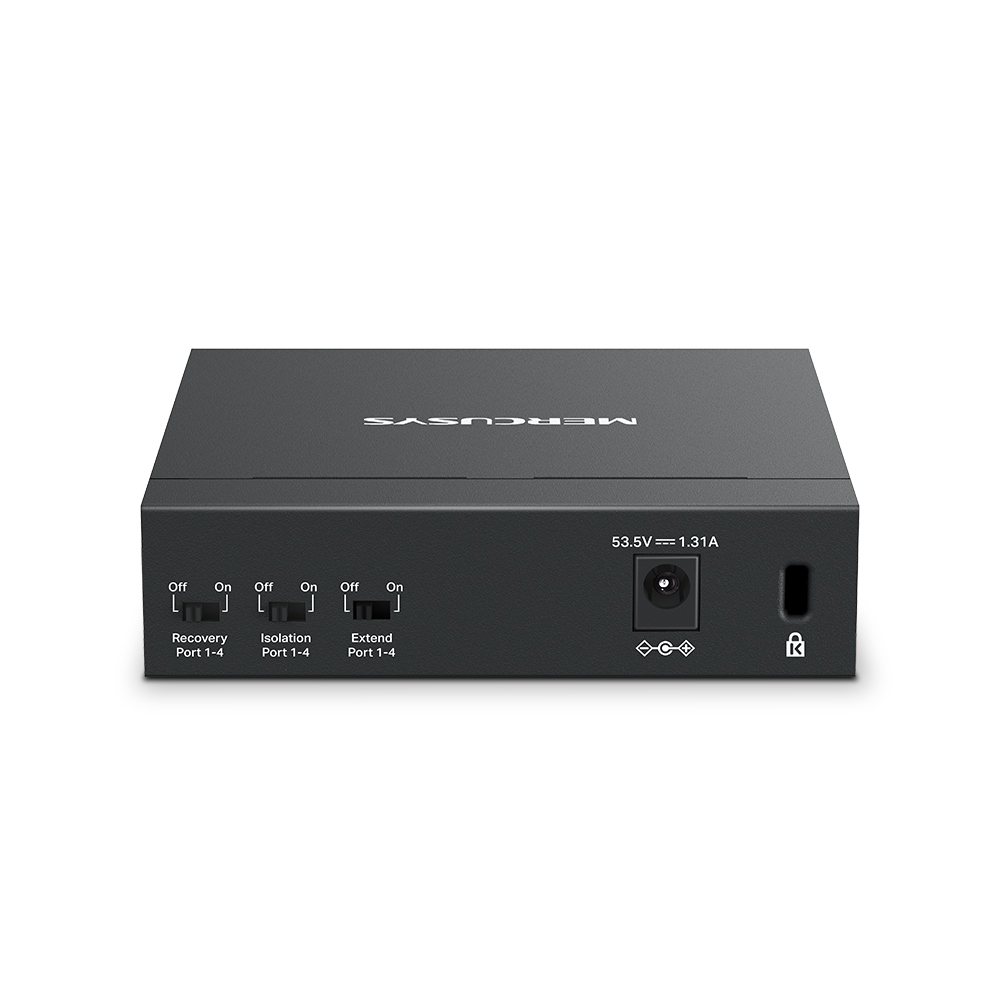

    External Power Supply External Power Adapter (Output: 53.5V/1.31A)
    Installation Desktop

    Wall Mount
    Data Rates 10/100/1000 Mbps at Half Duplex20/200/2000 Mbps at Full Duplex
    Jumbo Frame 9 KB
    LED  Ethernet Ports (1, 2, 3, 4, 5), Power
    MAC Address Table 8K
    Max Power Consumption 2.9W（220 V / 50 Hz, no PD connected）

    75.52W（220 V / 50 Hz, with 65W PD connected）
    Max Heat Dissipation 9.08 BTH/h （no PD connected)

    256.77 BTH/h（with 65W PD connected）
    Transfer Method Store and Forward
    Management Plug and Play
    Advanced Features 802.3x Flow Control

    IGMP Snooping V1/V2/V3

    Isolation Mode

    Extend Mode
    Package Contents • 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)• Power Adapter• Quick Installation Guide
    Environment Operating Temperature: -10℃~40℃ (14℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% RH non-condensingStorage Humidity: 5%~95% RH non-condensing
