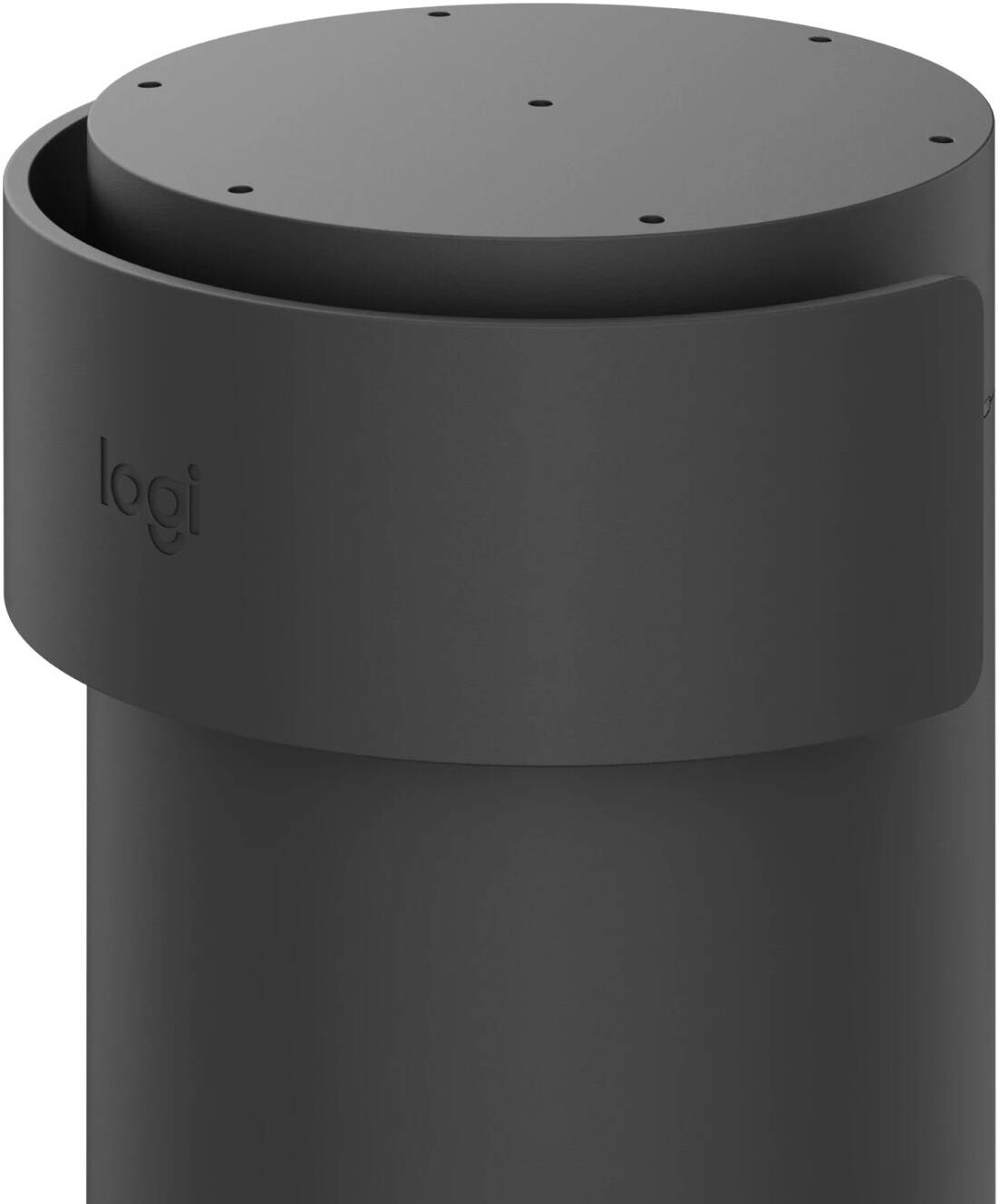

With 4K cameras and 7 beamforming mics, Sight captures conversation and nonverbals clearly. Indicator lights and privacy shade allow for clear signaling and status control.

Specification

Dimensions

Table-Mounted Configuration

• Height: 299.0 mm
• Width: 169 mm
• Depth: 169 mm

Grommet-Mounted Configuration

• Height: 291.2 mm
• Width: 93.4 mm
• Depth: 93.4 mm
• Required Grommet Hole Diameter: 25 mm or larger

Weight

• 1.5 kg

Technical Specifications

Built-in Components

• Dual-lens camera system
• 7 beamforming microphones
• Logitech Collab OS platform

Device Management

• Logitech Sync

Camera Specifications

Imaging

• Sensor Resolution: 4K
• Zoom: 1× (Fixed)

Field of View

• Horizontal: 315°
• Vertical: 97°
• Diagonal: 180°

Optical Characteristics

• Focal Length: 1.87 mm
• Depth of Field: 50 cm – 5 m

Video Performance

• Maximum Frame Rate: 60 fps

Microphone Specifications

Microphone Array

• 7 omnidirectional digital MEMS microphones
• Forms six adaptive acoustic endfire beams

Pickup Range

• 2.3 m radius per device

Microphone Characteristics

• Digital MEMS microphones
• Signal-to-Noise Ratio (SNR): 72 dB
• Acoustic Overload Point (AOP): 130 dB
• Dirt and water resistance: IP57

Audio Performance

• Frequency Response: 90 Hz – 16 kHz
• Sensitivity: > -36 dBFS ±1 dB @ 1 Pa

Audio Processing

• Acoustic Echo Cancellation (AEC)
• Machine Learning Voice Activity Detection (VAD)

Noise Suppression

• AI and Machine Learning-based suppression of:
  • Stationary noise
  • Non-stationary noise

Additional Microphone Expansion Support

With Rally Bar

• Up to 3 Rally Mic Pods
• Up to 2 Rally Mic Pod Hubs

With Rally Bar Mini

• Up to 2 Rally Mic Pods
• Up to 2 Rally Mic Pod Hubs

With Rally / Rally Plus

• Up to 6 total Rally Mic Pods and/or Mic Pod Hubs

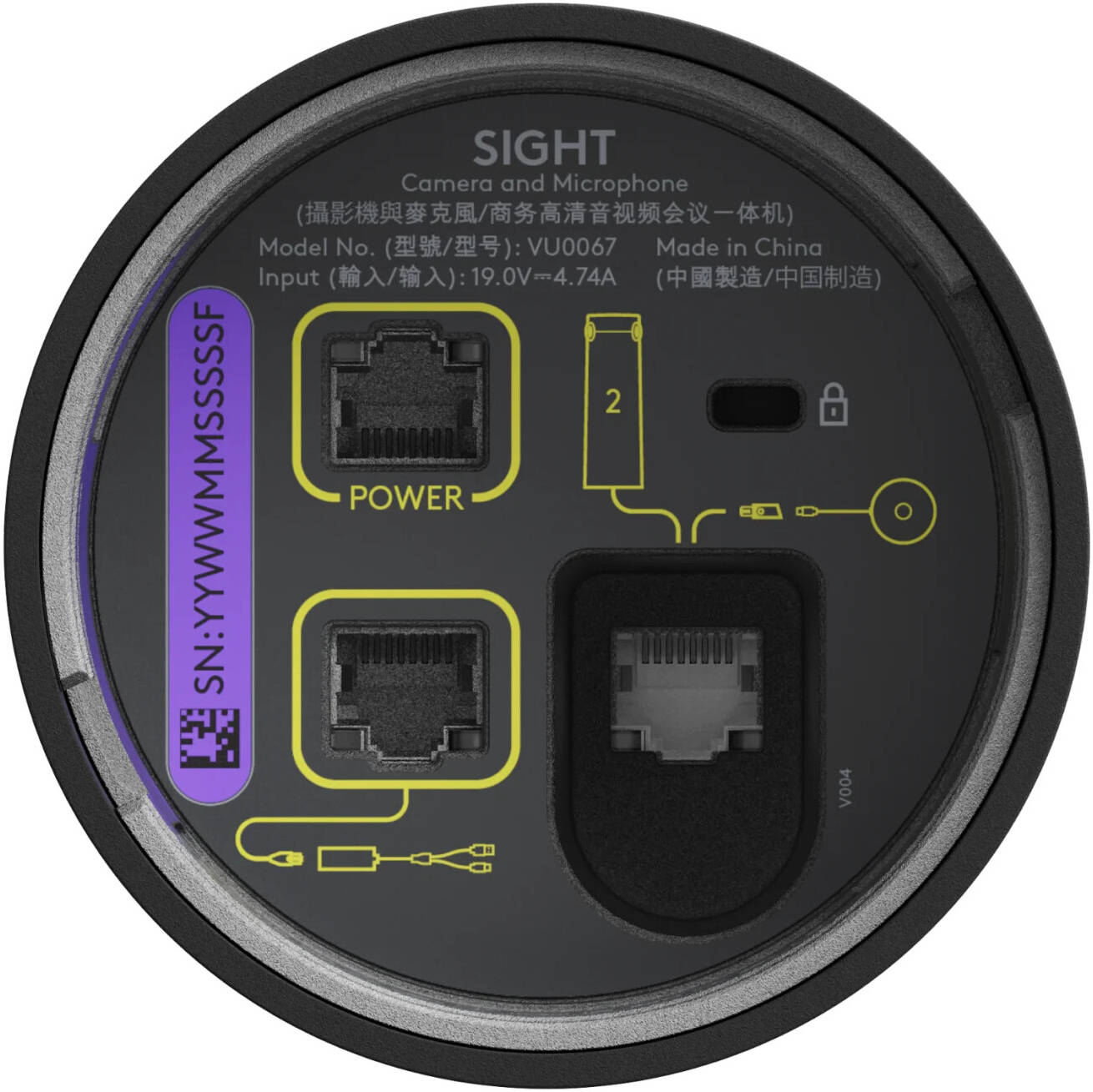

Ports and Interfaces

Network and Connectivity Ports

• 1 × RJ45 (Audio/Video Data over USB)
• 1 × RJ45 (Power over Ethernet)
• 1 × RJ45 (Daisy Chain for Rally Mic Pods)

Power and Cabling Requirements

Power

• IEEE 802.3at Type 2 PoE+ (Power over Ethernet)
• Equivalent power supply supported (user supplied)

Network Cable

• Cat6a or higher

Maximum Cable Length

• Up to 40 m between Sight Dongle and Sight Camera

Deployment Modes

USB Mode Requirements

• Windows 10
• Windows 11 or later
• macOS (two most recent versions)

Appliance Mode Requirements

• Rally Bar or Rally Bar Mini
• Room solution software license (not included)
• Latest version of Logitech Collab OS

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C
• Humidity: 10%–90% RH (non-condensing)

Storage Environment

• Temperature: -40°C to 70°C
• Humidity: 10%–90% RH (non-condensing)

Video Platform Compatibility

• Integration and feature availability vary by conferencing platform.
• Compatibility depends on the selected room solution and software platform.

Package Contents

Included Components

• Sight Camera
• Sight Dongle
• Mic Pod Dongle
• Privacy Shade
• Grommet Mount
• Table Mount
• Tripod Mount
• User Documentation
