Meetup 2 brings intelligent audio and video experiences to USB-based deployments in small rooms. Regular updates continuously enhance MeetUp 2’s performance, expand its capabilities, and foster deeper integrations.

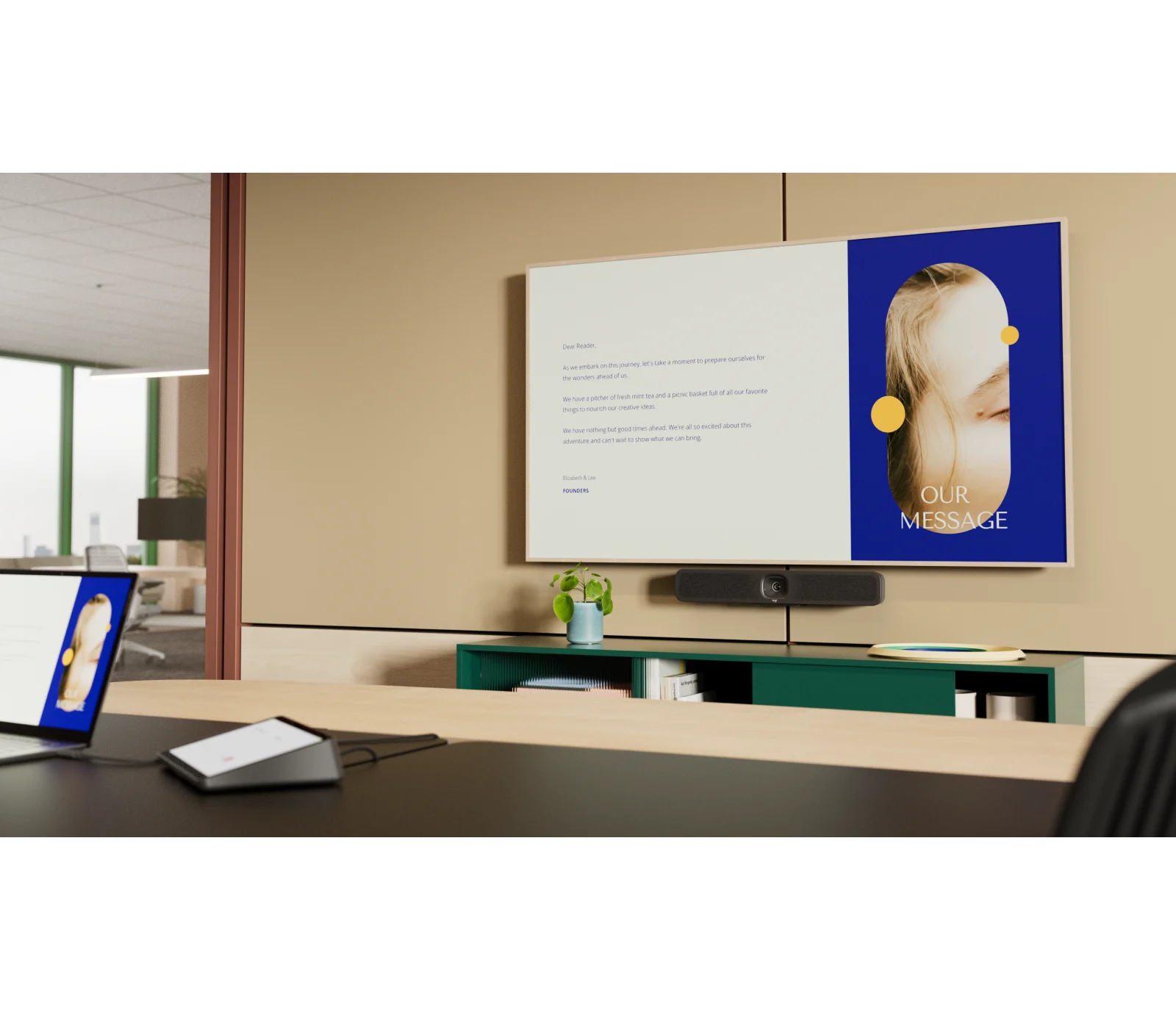

MeetUp 2 is easy to set up and manage in small spaces thanks to multiple mounting options, clean cabling, and remote management through Logitech Sync.

Deliver elegant, single-cable BYOD connections with MeetUp 2 when it is paired with the optional Active USB Cable accessory.

ENSURE BUSINESS CONTINUITY WITH SELECT SERVICE PLAN

Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour, get fast product replacements, and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select, we partner with you to reduce daily management, optimize performance, and help you maximize your investment.

Specification

Dimensions

• Height: 73.3 mm
• Width: 469.2 mm
• Depth: 73 mm
• Weight: 1.8 kg

Overview

• Built-in 6 DMIC microphone array
• Digital PTZ camera
• Full-range ported speaker
• Cable management and retention system
• Multi-mount support
• Logitech CollabOS platform
• Logitech RightSight 2
• Logitech RightSound 2

System Features

• Enclosure Type: All-in-one enclosure
• Device Management: Logitech Sync
• Displays Supported:
  • BYOD mode: 1 display
  • Dedicated computer mode: Depends on computer/application
• Display Resolution: 1080p
• Network Protocol Support:
  • IPv4
  • IPv6
• Proxy Support:
  • IP-based Proxy
  • FQDN-based Proxy
  • Proxy using PAC file

Compatibility Note

• Not compatible with Logitech RoomMate
• MeetUp 2 supports PC and BYOD deployment modes only

Camera Specifications

• Digital Pan: ±48° at 4x zoom
• Digital Tilt: ±32° at 4x zoom
• Zoom: 4x HD digital zoom
• Diagonal Field of View: 120°
• Horizontal Field of View: 113°
• Vertical Field of View: 80°
• Resolution: 4K

Speaker Specifications

• Driver: 55 mm with bass reflex enclosure and patented suspension design
• Sensitivity: 83 dB SPL @1W ±2dB at 1 meter
• Rated Power: 8W
• THD at 1W, 1kHz: <2%
• Speaker Sampling Rate: 48 kHz
• Impedance: 4 Ohms

Microphone Specifications

• Frequency Response: 90 Hz – 16 kHz
• Sensitivity: -36 dBFS ±1 dB @1Pa
• Microphone Data Rate Output: 48 kHz
• Pickup Range: Up to 7 meters
• Beamforming Technology:
  • Six omnidirectional digital MEMS microphones
  • Five adaptive acoustic broadside beams

Audio Processing

• Acoustic Echo Cancellation (AEC)
• Voice Activity Detector (VAD)
• AI-based noise suppression

Interfaces

• HDMI Out: 1
• HDMI In: 1
• USB: 1 × USB Type-C 3.1
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac/ax
• Bluetooth: Bluetooth Low Energy

Power and Cables

Power

• Power Supply: Auto-sensing
• Operating Voltage/Power:
  • 100–240V
  • 19V, 2.1A

Cable Details

• Power Supply Dimensions: 114 × 47 × 32.3 mm
• DC Cable Length: 3 m
• USB-C to USB-C 2.0 Cable Length: 3 m

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -25°C to 70°C
• Humidity Range: 10% to 90%

Security

• File-Based Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity Protection: Device attestation
• Device Access: API authentication
• Key Protection: Arm TrustZone, RPMP
• Physical Security: Kensington security slot

System Requirements

• Windows 10 or later
• macOS (latest two versions)
• Wired or wireless network connection

Package Contents

• All-in-one MeetUp 2 with multi-function mount
• Power supply with region-specific plugs
• USB-C to USB-C 2.0 cable (3 m)
• 2 wall anchors
• 2 screws
• Quick start guide printed on the box
