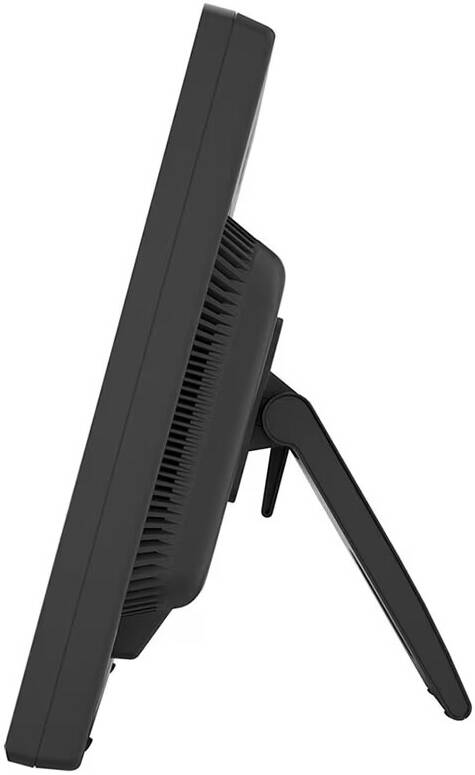

Easy and comfy

A stand with adjustable tilt enables a comfortable working environment, helping you sit comfortably for extended periods while working.



Smart saving without compromise

Our smart energy saving mode reduces power consumption through a luminance compensation algorithm while keeping your monitor bright. Conserve energy without lowering the brightness of the monitor.

Specifications

Key Highlights

• Screen Size: 17 Inches (43.18 cm)

• Resolution: 1280 × 1024

• Aspect Ratio: 5:4

• Panel Type: TN

• Response Time: 5ms

• Contrast Ratio: 1000:1 (Typical)

• Connectivity: VGA (D-Sub), USB-B

• Wall Mountable: 75 × 75 mm

• Ideal For: Office, POS, Industrial, CCTV Monitoring

Display

• Screen Size: 17″ (43.18 cm)

• Resolution: 1280 × 1024 @ 75Hz

• Panel Type: TN

• Aspect Ratio: 5:4

• Pixel Pitch: 0.264 × 0.264 mm

• Brightness:

  • 150 cd/m² (Minimum)

  • 200 cd/m² (Typical)

• Color Gamut: NTSC 72% (CIE1931)

• Color Depth: 16.7 Million Colors

• Color Bit: 8-bit

• Contrast Ratio:

  • 600:1 (Minimum)

  • 1000:1 (Typical)

• Response Time: 5ms (On/Off, No Overdrive Support)

• Viewing Angle:

  • 170° (Right/Left)

  • 160° (Up/Down)

• Surface Treatment: Anti-Glare

Features

• Reader Mode: Yes

• Smart Energy Saving: Yes

• Single Point Touch: Yes

• OSD Language Support (18 Languages):
  English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese (Brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi

Connectivity

• VGA (D-Sub): 1 Port

  • Frequency Range: 56 ~ 75Hz

  • Max Resolution: 1280 × 1024 @ 75Hz

• USB Upstream (USB-B): 1 × USB 2.0 (Vertical Location)

Power

• Power Type: Built-in Power Supply

• AC Input: 100 ~ 240V (50/60Hz)

• DC Output: 28W (19V, 1.6A)

• Power Consumption:

  • 16W (On Mode)

  • 12W (ErP Mode)

  • <0.3W (Sleep Mode)

  • <0.3W (DC Off)

Design & Ergonomics

• Cabinet Color: Black (Non-Glossy Finish)

• Stand Color: Black (Non-Glossy)

• Borderless Design: Normal

• Display Adjustment: Tilt

  • +15° (±3°) ~ 66° (±3°)

• Wall Mount Support: 75 × 75 mm (VESA Compatible)

Dimensions

With Stand:

• 370 × 95 × 315 mm

Without Stand:

• 370 × 62 × 315 mm

Shipping Dimensions:

• 429 × 154 × 377 mm

Weight

• With Stand: 3.3 kg

• Shipping Weight: 4.5 kg

In the Box

• Power Cord (Black, 1.5m)

• VGA (D-Sub) Cable (Black, 1.5m)

• USB A to B Cable (Black, 1.8m)

Certifications & Compliance

• TÜV-Type

• CB

• UL (cUL)

• FCC-B

• ErP (D)

• CE

• Windows 10 Compatible
