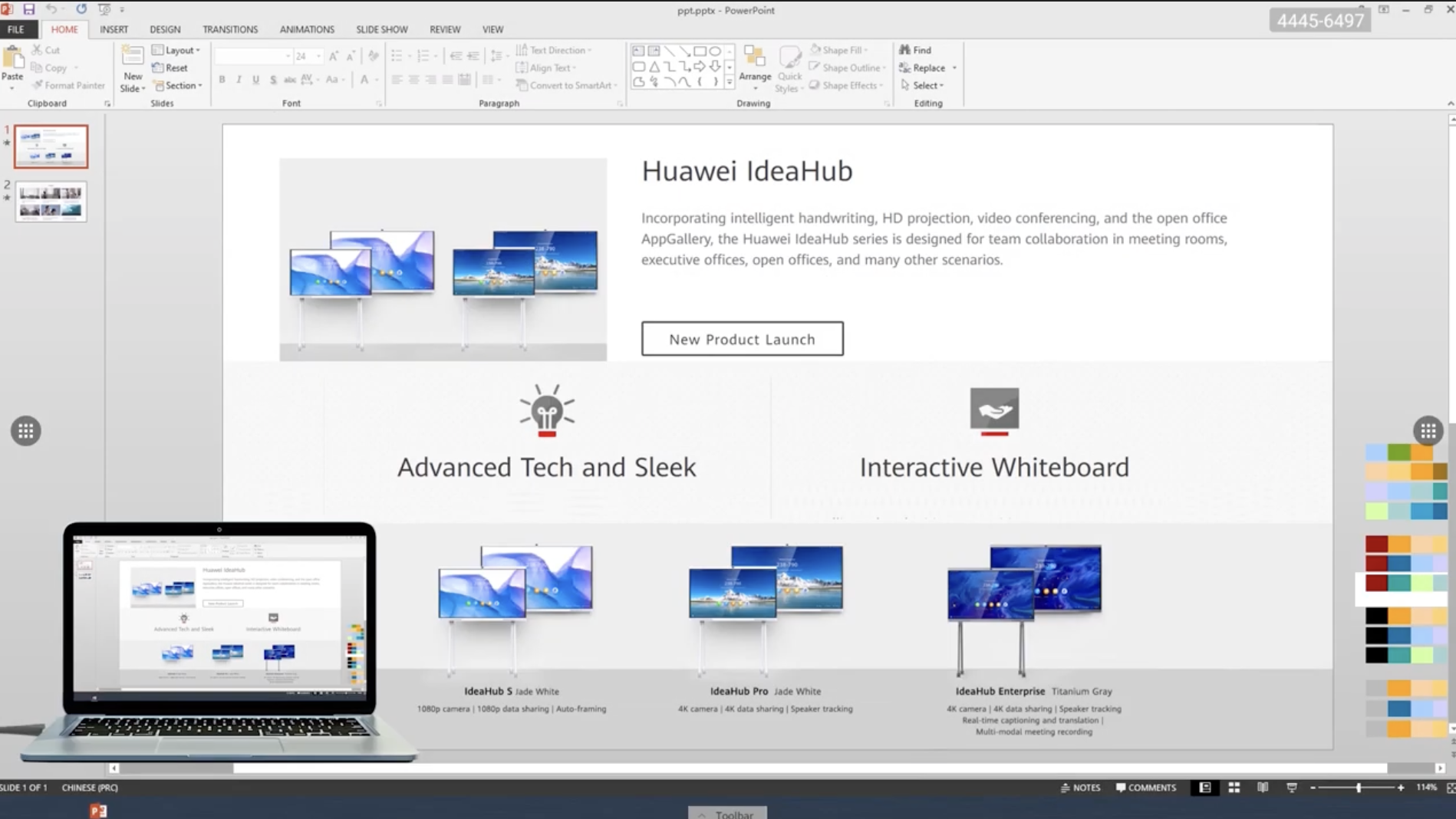

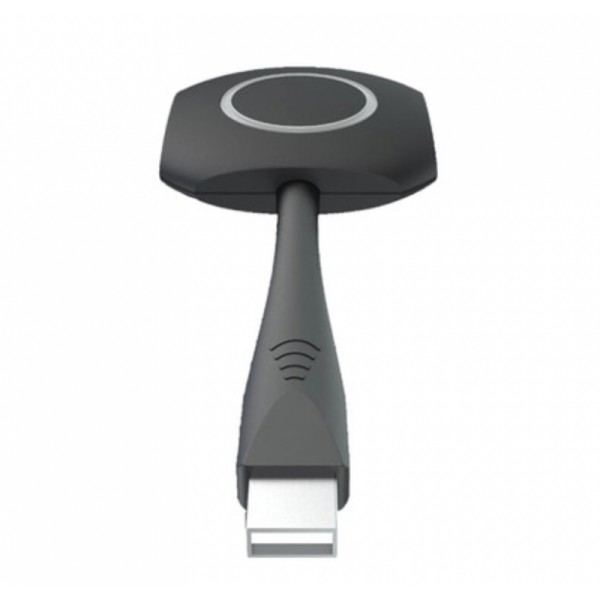

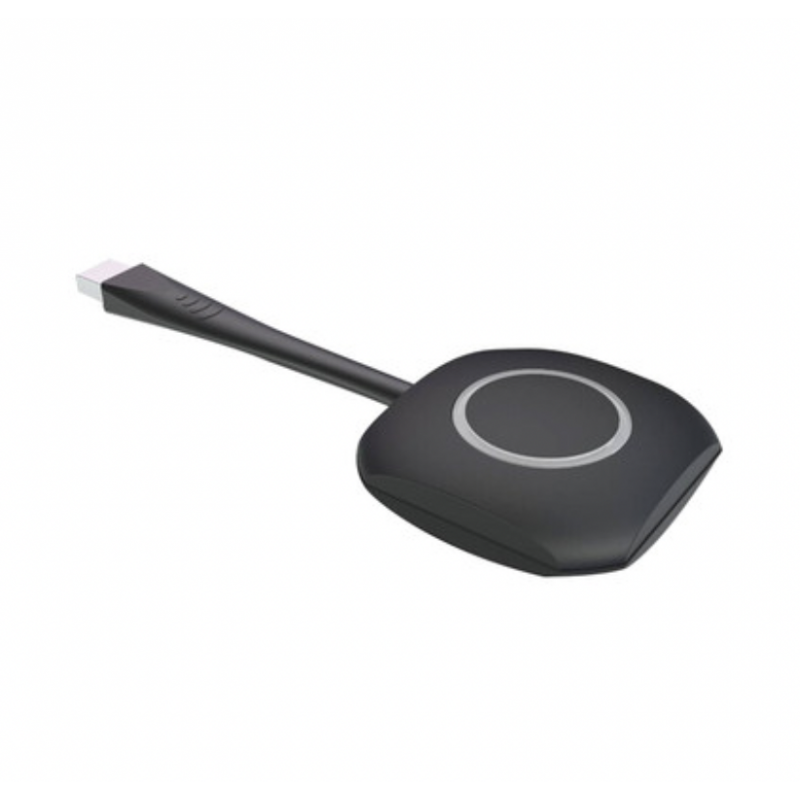

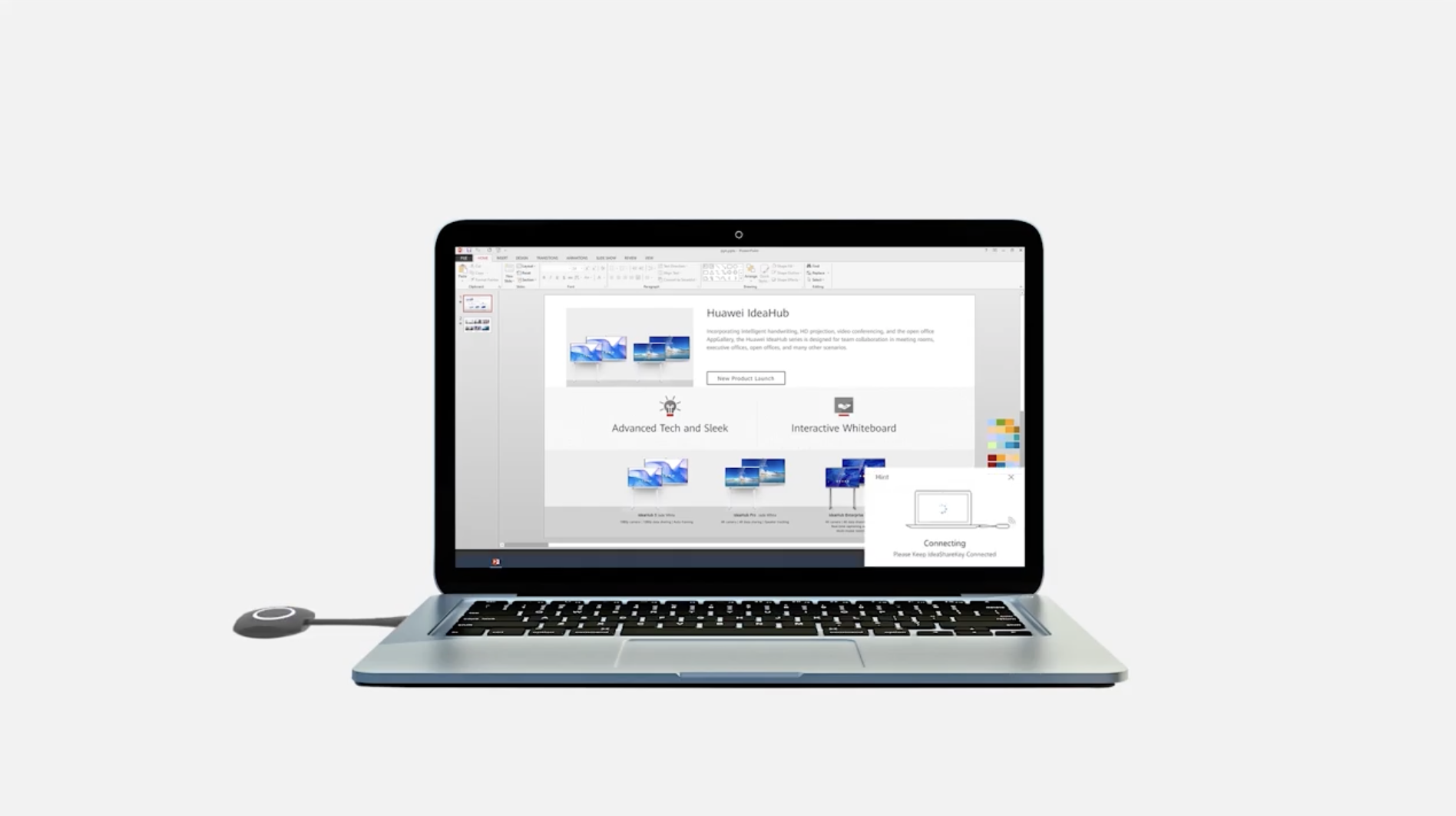

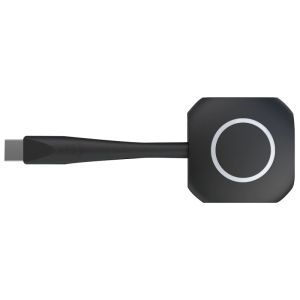

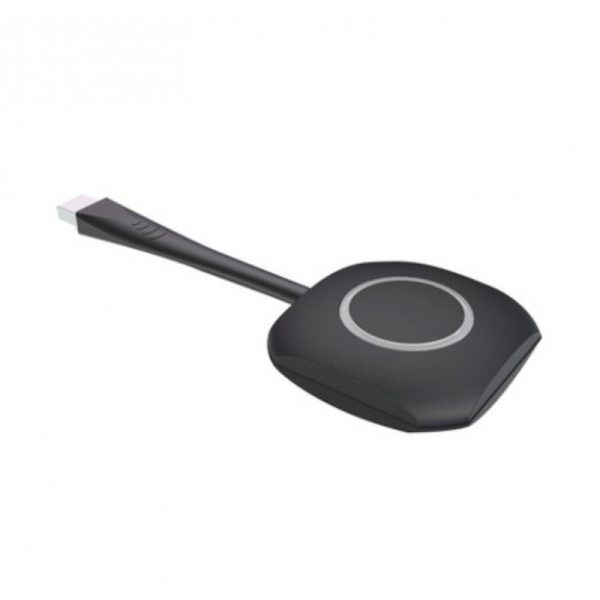

The IdeaShare Key is the projection tool. Simply connect it to the IdeaHub upon first use to pair the two devices. Then insert the Key into your PC and press down in the middle of the IdeaShare Key. To stop sharing, press down on the middle again.

Specification

Wireless Projection Device

Core Features

• Supports wireless projection up to 1080p@60fps (no app) and 4K@30fps (with app)
• 48K dual-channel lossless audio for high-quality sound
• Connection range up to 20 meters
• Works in client mode

Compatibility

• Compatible with: Windows, macOS, Android, HarmonyOS, iOS
• Supports multiple Huawei devices including IdeaHub series, Collaboration Devices, Box 310 & 610

Connectivity

• Wi-Fi: 2.4 GHz & 5 GHz
• Wireless standard: IEEE 802.11 a/b/g/n
• Interface: USB Type-C (supports Type-A via adapter)

Security

• AES encryption
• WPA2-PSK authentication

Power

• Operating voltage: 5V DC
• Maximum power consumption: ≤ 2.5W

Physical Specifications

• Product dimensions: 18 × 154 × 60 mm
• Package dimensions: 32 × 175 × 115 mm
• Net weight: 58.59 g
• Gross weight: 162.5 g

Environmental Conditions

• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to +70°C
• Humidity: 5% to 95% (operating), up to 95% non-condensing (storage)

Certifications

• EU CE certified
• SRRC Radio Type Approval
