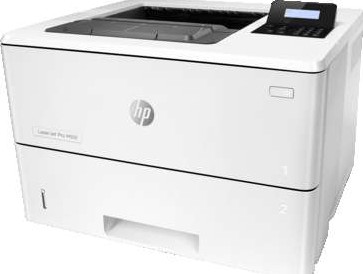

HP LaserJet Pro M501dn Monochrome Printer, Up to 45 ppm (Black), USB, Ethernet, White

Specification

General

• Functions: Print Only

• Print Technology: Laser

• Print Output: Black & White

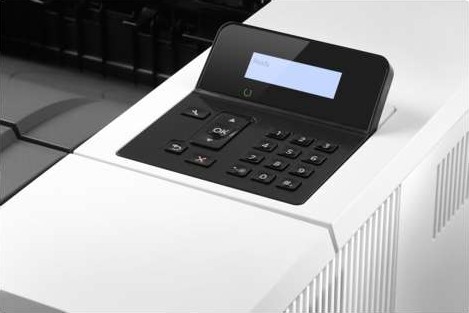

• Display: 2-line LCD (Text)

• Processor Speed: 1500 MHz

• Memory (Standard/Max): 256 MB

• Duplex Printing: Automatic

• Recommended Monthly Volume: 1,500 – 6,000 pages

• Monthly Duty Cycle: Up to 100,000 pages

• Wireless: No (Network via Ethernet only)

Print Performance

• Print Speed: Up to 45 ppm (Black)

• First Page Out: As fast as 5.7 sec

• Print Resolution:

  • 600 × 600 dpi

  • Up to 4800 × 600 enhanced dpi

• Resolution Technologies: HP FastRes 1200, HP ProRes 1200

• Print Languages:
  HP PCL 5, HP PCL 6, PostScript Level 3 Emulation, Direct PDF (v1.7), URF, PCLm, PWG

Paper Handling

Standard Input

• 100-sheet Multipurpose Tray

• 550-sheet Main Cassette

Maximum Input

• 2 × 550-sheet Cassettes + 100-sheet Multipurpose Tray (3 trays total)

Output

• 250-sheet Face-down Output Tray

Supported Media Sizes

Tray 1:
A4, A5, A6, 10×15 cm, 16K sizes, Oficio (216 × 340 mm), Envelopes (DL, C5, B5), Japanese Postcard

Tray 2 & Optional Tray 3:
A4, A5, A6, B5 (JIS), B6 (JIS), Oficio

Custom Media Sizes

• Tray 1: 3 × 5 to 8.5 × 14 in

• Tray 2 & 3: 4.14 × 5.83 to 8.5 × 14 in

Media Types

• Plain Paper

• Bond

• Cardstock

• Labels

• Transparencies

• Envelopes

• Recycled Paper

Supported Media Weight

• Tray 1: 60 – 200 g/m²

• Tray 2 & 3: 60 – 120 g/m²

Connectivity & Networking

• USB: Hi-Speed USB 2.0 Host/Device Ports

• Ethernet: Fast Ethernet 10/100 + Gigabit 1000Base-T

• Network Ready: Yes (Built-in Gigabit Ethernet)

Mobile Printing

• HP ePrint

• Apple AirPrint™

• Mopria™ Certified

Security Features

• Embedded Web Server (Password Protected)

• SSL/TLS Secure Browsing

• SNMPv1/v2/v3

• 802.1X Authentication

• Secure Boot

• Firewall & Access Control Lists

• HP JetAdvantage Security Manager

Supported Operating Systems

• Windows (XP through Windows 10)

• macOS (10.9 Mavericks to 10.11 El Capitan)

• Linux (HPLIP supported)

• UNIX

• Mobile OS (iOS, Android)

Power & Energy

• Power Consumption:

  • 660W (Printing)

  • 6.1W (Ready)

  • 1.3W (Sleep)

  • 0.1W (Manual Off)

• Input Voltage:

  • 100–127 VAC (60 Hz)

  • 220–240 VAC (50 Hz)

• Energy Certifications:

  • ENERGY STAR® Certified

  • EPEAT® Silver Registered

  • Blue Angel

  • CECP

  • Taiwan Green Mark

Dimensions & Weight

• Dimensions (W × D × H):
  16.46 × 14.80 × 11.38 in

• Maximum Dimensions:
  16.46 × 25.16 × 11.38 in

• Weight: 25.6 lb

• Package Weight: 32.1 lb

Cartridges & Supplies

• Number of Cartridges: 1 (Black)

Replacement Toners

• HP 87A (CF287A) – ~8,550 pages

• HP 87X (CF287X) – ~18,000 pages

• Introductory Toner Included: ~6,000 pages

What’s in the Box

• HP LaserJet Pro M501dn Printer

• Preinstalled Black Toner Cartridge (~6,000 pages)

• Power Cord

• Documentation & Software CD
