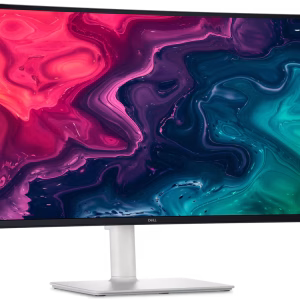

Dell 34 Plus USB-C Curved – S3425DW Monitors, 3440 x 1440 Resolution, 120Hz Refresh Rate, 1ms GtG Extreme Response Time, White

SPECIFICATIONS

Technical Information

• Number of Screens: 1
• Screen Size Class: 34″
• Viewable Screen Size: 34″
• Screen Mode: UW-QHD
• Panel Technology: Vertical Alignment (VA)
• Aspect Ratio: 21:9
• Pixel Pitch: 0.23175 mm x 0.23175 mm
• Horizontal Viewing Angle: 178°
• Vertical Viewing Angle: 178°
• Mount Type: Panel Mount
• Backlight Technology: LED Edgelight System
• HDCP Supported: Yes
• Maximum Adjustable Height: 13.00 cm
• Tilt Angle: -5° to 21°
• Slant Angle: -4°/4°
• Curved Screen: Yes
• Curvature: 1800R
• Glass Hardness: 3H

• Response Time Details
– 3ms GTG (Fast)
– 5ms GTG
– 1ms GTG (Extreme Mode)

• Features
– HDR10
– Eye Comfort Technology
– Anti-glare
– Picture in Picture
– Picture by Picture
– Security Lock
– Cable Lock Slot
– BFR Free
– Narrow Bezel
– PVC Free
– Arsenic-free Glass
– Mercury-free

• Horizontal Frequency: 25 kHz to 200 kHz
• Vertical Frequency: 48 Hz to 120 Hz
• Adjustable Stand: Yes
• Stand Adjustments
– Height
– Slant
– Tilt
• Stand Included: Yes

Video

• Maximum Resolution: 3440 x 1440
• Standard Refresh Rate: 120 Hz
• Color Supported: 1.07 Billion Colors
• Native Contrast Ratio: 3,000:1
• Brightness: 300 cd/m2
• Tearing Prevention Technology: AMD FreeSyncTM Premium
• Color Gamut
– 95% DCI-P3 (CIE 1976)
– 99% sRGB (CIE 1931)
• Maximum Preset Resolution: 3440 x 1440 at 120Hz
• Pixel Per Inch (PPI): 109

Audio

• Number of Speakers: 2
• Speakers: Yes
• Speaker Output Power: 10 W

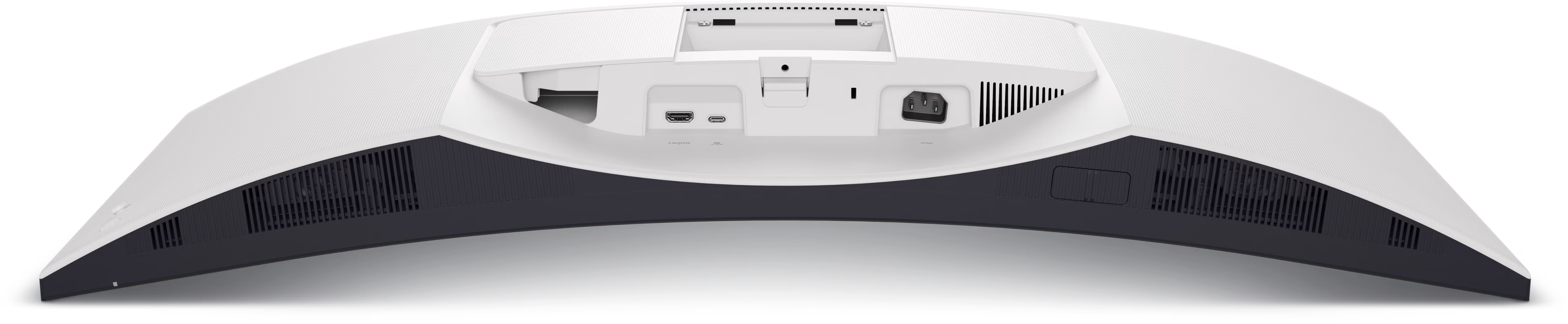

Interfaces/Ports

• Connectivity
– Video port
– 2 HDMI ports (HDCP 1.4 and 2.2) (Supports up to WQHD 3440 x1440, 120 Hz, 10 bit, FRL, HDR, VRR as per specified in HDMI 2.1)

– USB port
– 1 USB-C 5Gbps upstream port (DisplayPort 1.4 Alternate Mode, Power Delivery up to 65 W) (Supports up to 3440 x1440, 120 Hz, HDR, AdaptiveSync)
– 1 USB 5Gbps Type-A downstream port
– 1 USB 5Gbps Type-A downstream port
– 1 USB 5Gbps Type-A downstream port with Battery Charging 1.2
– 1 USB-C 5Gbps downstream port (Power Delivery up to 15 W)

• USB Type-C (Power Delivery): 65 W

Built-in Devices

• Built-in Devices: NA

Environmental Conditions

• Operating Temperature Range: 32°F (0°C) to 104°F (40°C)
• Non-operating Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Operating Humidity Range: 10% to 80% (Non-condensing)
• Non-operating Humidity Range: 5% to 90% (Non-condensing)
• Maximum Operating Altitude: 16400 ft
• Maximum Non-operating Altitude: 40000 ft

Power Description

• Input Voltage Range: 100V AC to 240V AC
• Operating Power Consumption: 31.0 W
• Standby Power Consumption: 0.3 W
• Off-Mode Power Consumption: 0.3 W
• Frequency: 60 Hz; 50 Hz
• Maximum Power Consumption: 175 W
• Voltage Current: 2A

Physical Characteristics

• VESA Mount Compatible: Yes
• VESA Mount Standard: 100 x 100

• Dimensions
– Without stand: Width 80.72 cm x Height 35.59 cm x Depth 11.68 cm
– With stand: Width 80.72 cm x Height 51.71 cm x Depth 22.17 cm

• Height with Stand
– Compressed Height with Stand: 41.15 cm
– Extended Height with Stand: 51.71 cm

• Bezel Width
– Bezel Width (Top): 0.84 cm
– Bezel Width (Bottom): 1.37 cm
– Bezel Width (Left): 0.84 cm
– Bezel Width (Right): 0.84 cm

• Stand Dimensions
– Stand Height: 41.02 cm
– Stand Width: 25.91 cm
– Stand Depth: 22.17 cm

• Weight
– Weight (Approximate): 6.91 kg
– Weight with Stand (Approximate): 9.38 kg

• Color
– Color Family: White
– Product Color: Ash White

Miscellaneous

• Package Contents
– Monitor
– Stand
– Side I/O cover
– QR card
– Safety, Environmental, and Regulatory Information

• Energy Star: Yes
• Country of Origin: China
• Dell Display Manager Compatibility: Yes
• Remote Asset Management: Dell Command

• Cable Type Included
– Power cable
– 1 USB-C to C 10Gbps 100 W cable 1.00 m

• Energy Efficiency Certification: ENERGY STAR 8.0
• Energy Efficiency Compliance: Energy-related Products Directive Lot 5 (ErP Lot 5)
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
