Expertly designed with businesses in mind, our scanners help to streamline business processes whilst providing an effortless, user-friendly experience. They enable you to intelligently capture and optimise the contents of your documents and easily collaborate with colleagues.

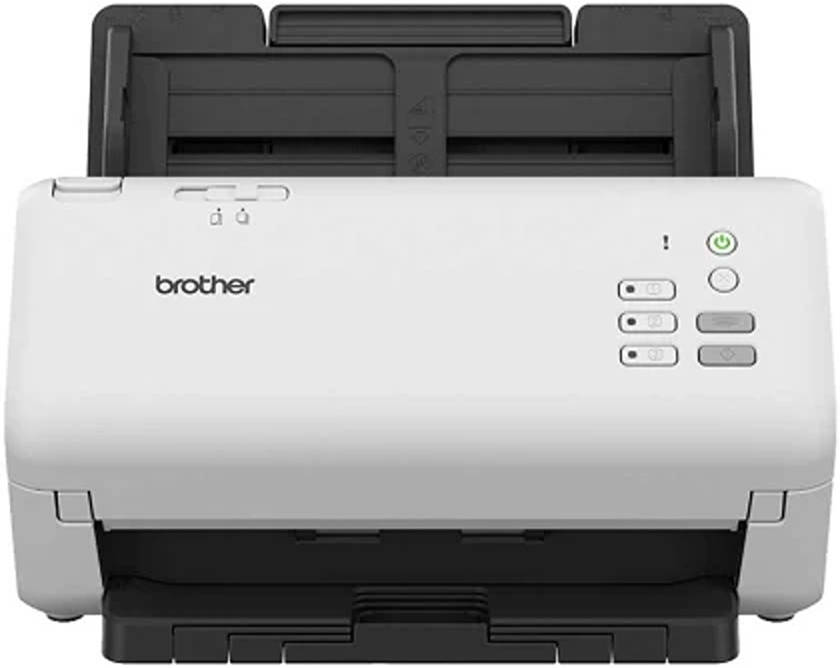

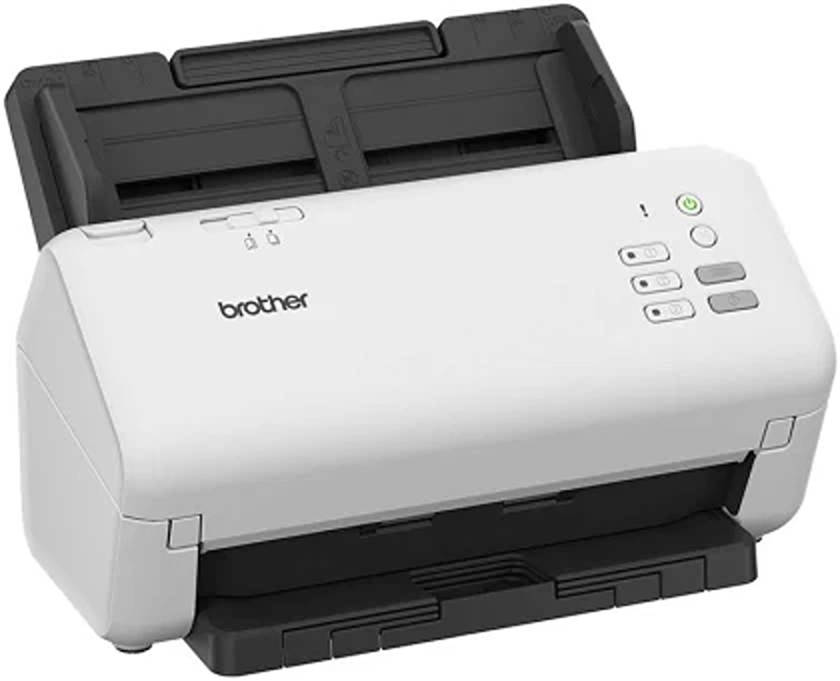

High-speed network desktop scanner ADS-4300N

High-volume scanning
Built for demanding, high-volume workplaces, Brother’s range of Kofax certified desktop scanners allow busy departments to batch scan and archive a larger number and wider variety of documents quickly and easily. From batch scanning large volumes of very thick or thin paper documents to multi-page, mixed batch media, through to embossed plastic cards, all can be scanned continually with the help of a Separation Switch.

Automatically route documents with barcodes
Reduce the labour-intensive task of scanning several documents, saving and then renaming files. Barcode Utility enables documents that have a barcode to be scanned and saved to the required location, automating the separation of a batch of documents and routing each individual file to the designated folder on your network.

Easy Maintenance
Reduced maintenance costs and downtime due to the high-volume scanning capacity and reliable roller mechanisms. Easy access to the paper path allows you to clear any paper jams and the CIS Cleaning Alarm reminds you to clean the unit when required, without having to call a service centre.

Specification

Performance

• Scanning Speed: Up to 40 ppm

• Scan Mode: Colour & Monochrome

• Duplex Scanning: Yes (Automatic 2-Sided Scanning)

• ADF Capacity: Up to 80 Pages (80 g/m²)

• Memory: 512 MB

Designed for medium to large offices with high-volume scanning requirements.

Supported Document Size

Multiple Sheets (ADF):

• Width: 50.8 mm – 215.9 mm

• Length: 50.8 mm – 355.6 mm

Single Sheet:

• Width: 50.8 mm – 215.9 mm

Maximum Scan Width:

• Up to 215.9 mm

Scan Quality

• Optical Resolution: Up to 600 × 600 dpi

• Interpolated Resolution: Up to 1200 × 1200 dpi

• Input Colour Depth: 48-bit Colour Processing

• Output Colour Depth: 24-bit Colour Processing

Delivers crisp text clarity and accurate colour reproduction for professional documents.

Physical Specifications

• Dimensions (W × D × H): 299.5 × 190.5 × 215.9 mm

• Weight: 2.64 kg

• ADF Capacity: 80 Pages

Sturdy desktop design suitable for continuous office usage.

Power & Operating Conditions

Power Source:

• AC 100–240V, 50/60 Hz

• Operating Temperature: 5°C – 35°C

• Operating Humidity: 20% – 80%

• Storage Humidity: 10% – 90%

OS Compatibility

Windows (TWAIN / WIA / ISIS™ Compliant):

• Windows 7 (SP1)

• Windows 8.1

• Windows 10

• Windows Server 2012 / 2012 R2

• Windows Server 2016

• Windows Server 2019

Mac (TWAIN / ICA Compliant):

• macOS 10.14.x

• macOS 10.15.x

• macOS 11.0.x

• macOS 11.1.x
