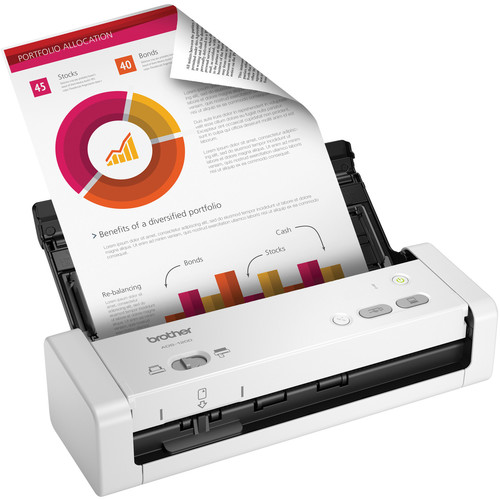

Brother ADS-1200 Mobile Scanner

Make everyday document scanning simple with the ADS-1200 compact document scanner.With USB 3.0 Bus power, there’s no need for mains power. Connect the ADS-1200 to a laptop with a USB 3.0 cable and you now have a portable document scanner so you can scan documents when you need.The desktop-friendly sized scanner, comes with powerful paper-handling. With a sheetfed Automatic Document Feeder (ADF), 2-sided documents to multi-page contracts and plastic ID cards, can all be scanned with ease.

Portable scanning

Designed with flexibility in mind, the portable sheetfed ADS-1200 can be powered using USB 3.0 connected to a laptop. You can now take your scanner with you, scanning where it’s most convenient.

Practical and compact

The space-saving ADS-1200 compact document scanner is ideal when space is limited. Measuring slightly wider than a sheet of A4 paper, you can free-up desk space and reduce clutter.

High performance

Simply put your documents into the ADF (Automatic Document Feeder) and let it do the hard work for you. Scanning up to 25 sheets per minute, your documents can be saved quickly to PC, email and USB host.

Flexible media

Scanning documents is quick and easy with the sheetfed ADS-1200. With a dedicated plastic ID card slot, ID cards or documents are fed smoothly into the scanner, so your records can be easily kept up to date.

Specification

Performance

• Scanning Speed: Up to 25 ppm / 50 ipm

• Scan Type: Colour & Monochrome

• Duplex Scanning: Yes (2-Sided Scan)

• ADF Capacity: Up to 20 sheets (80 g/m² paper)

• Memory: 256 MB SDRAM

Supported Document Size

Multiple Sheets (ADF):

• Width: 51 mm – 215.9 mm

• Length: 70 mm – 297 mm

Single Sheet:

• Width: 51 mm – 215.9 mm

• Length: 70 mm – 297 mm

Maximum Scan Area: 216 mm

Scan Quality

• Optical Resolution: Up to 600 × 600 dpi

• Interpolated Resolution: Up to 1200 × 1200 dpi

• Input Colour Depth: 48-bit

• Output Colour Depth: 24-bit

Physical Specifications

• Dimensions (W × D × H): 300 × 103 × 83 mm

• Weight: 1.4 kg

Power & Operating Conditions

• Power Source: AC 220–240V, 50/60 Hz

Power Consumption:

• Scanning: Approx. 8W

• Ready Mode: Approx. 3.2W

• Deep Sleep: Approx. 1.3W

• Power Off: Approx. 0.1W

Operating Temperature: 5°C – 35°C
Operating Humidity: 20% – 80%
Storage Humidity: 10% – 90%

OS Compatibility

Windows (TWAIN & WIA Compliant):

• Windows 7 SP1

• Windows 8 / 8.1

• Windows 10

• Windows Server 2008 R2 SP1

• Windows Server 2012 / 2012 R2

• Windows Server 2016

Mac (TWAIN & ICA Compliant):

• macOS v10.11.6

• macOS 10.12.x

• macOS 10.13.x
